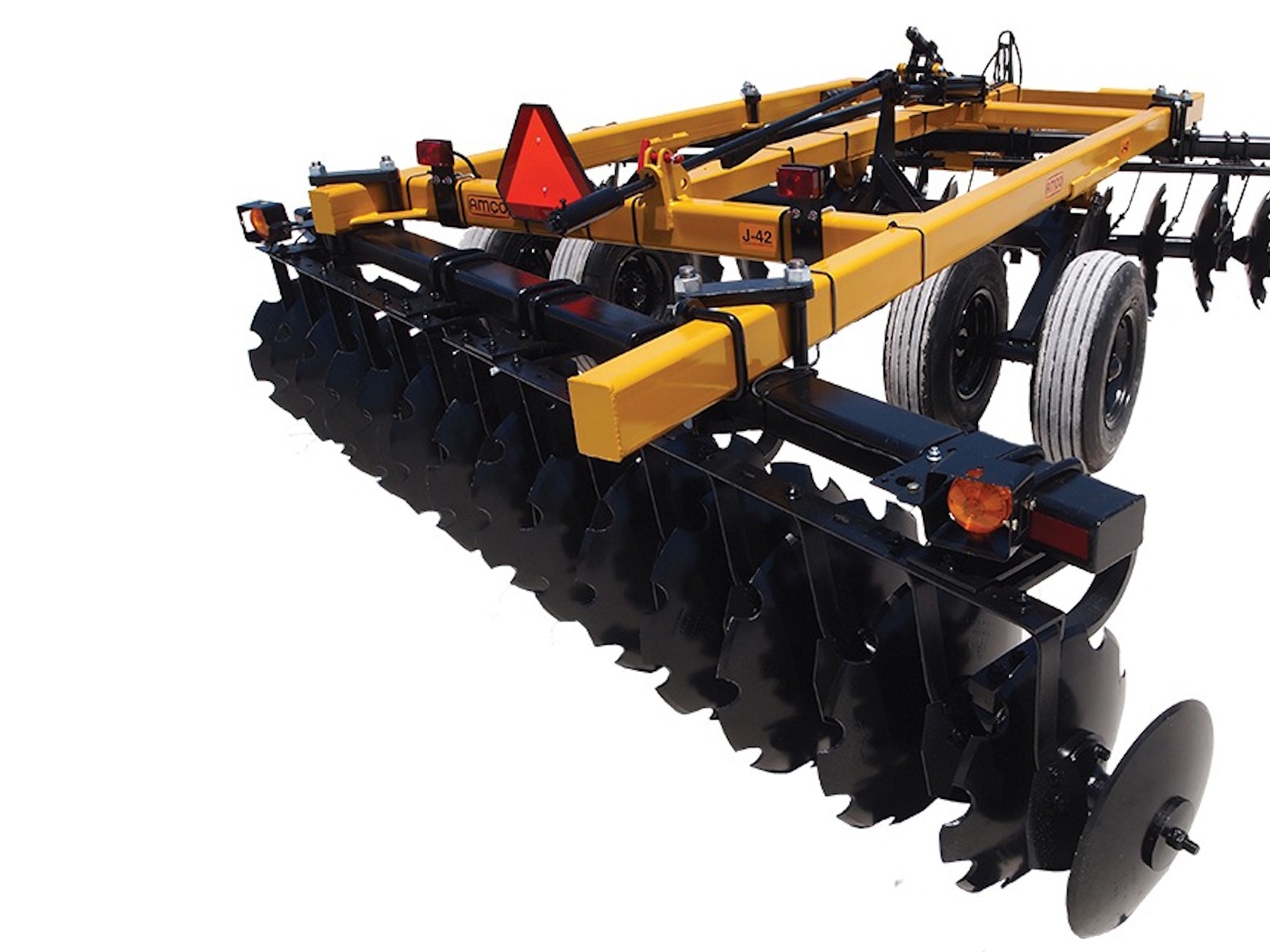

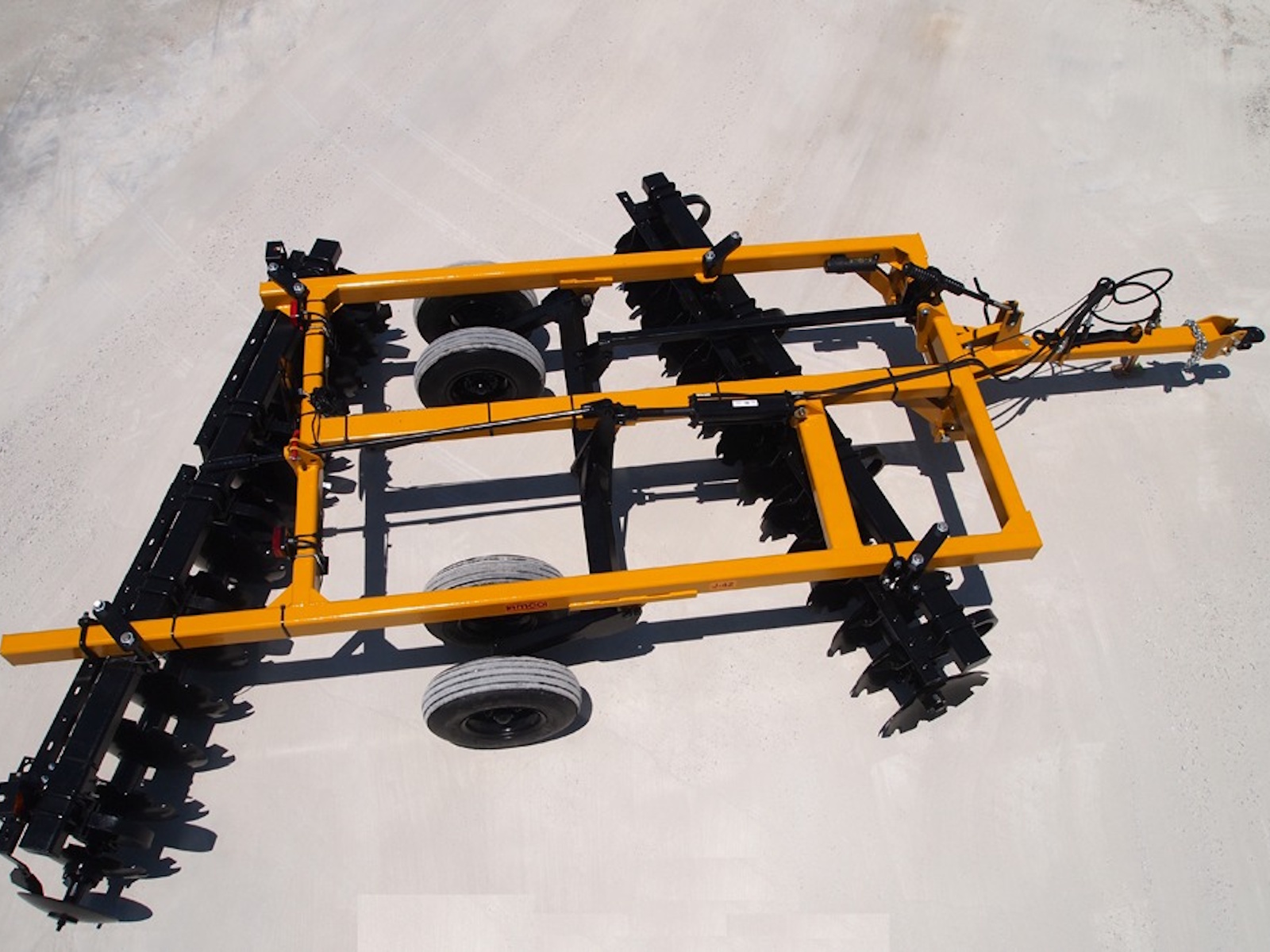

2026 AMCO J42-2824

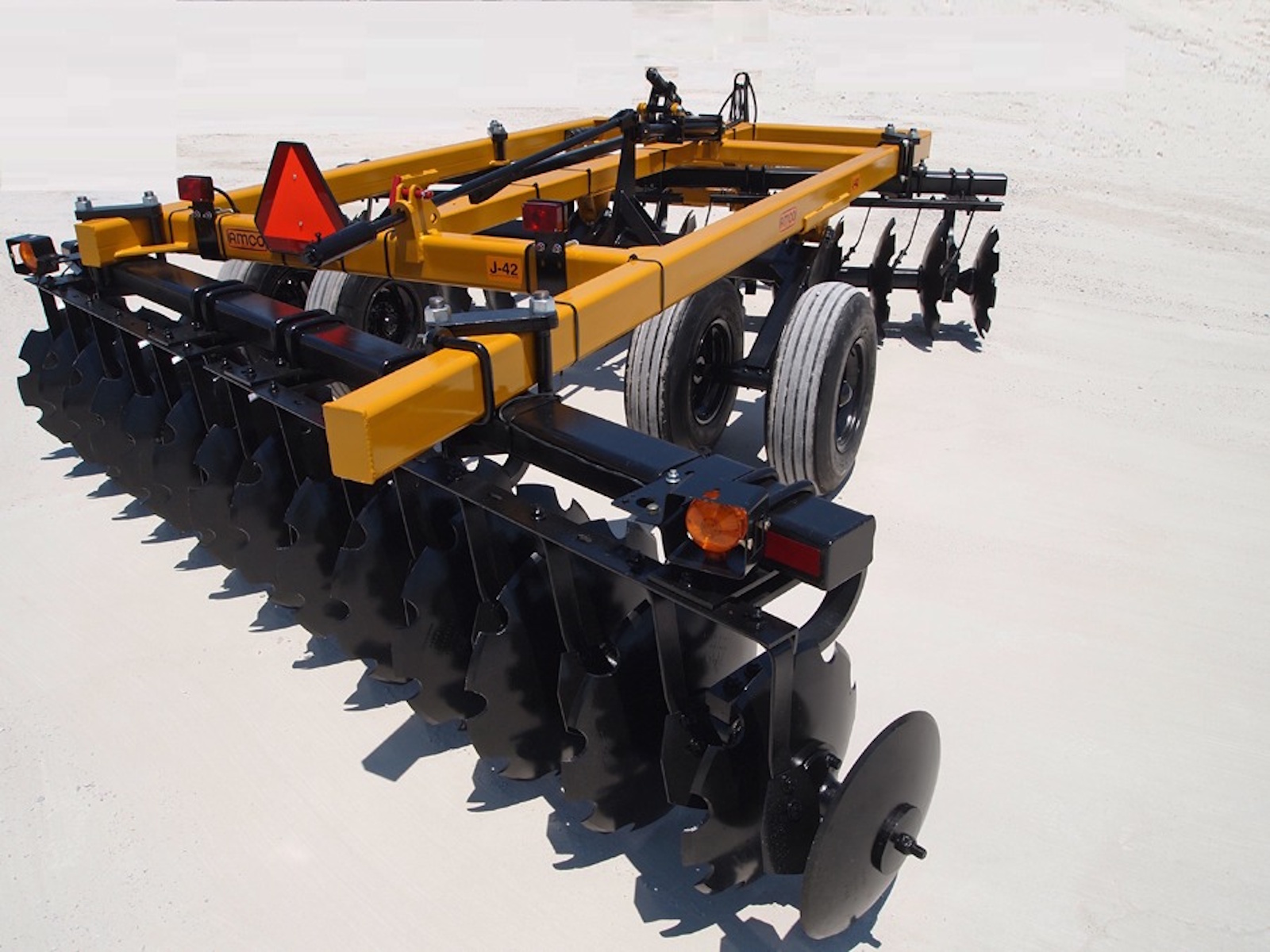

10½” Spacing Wheel Offset Harrows
AMCO offers Wheel Offset Harrows with 10½” blade spacing in four options. Primary tillage models are available in both 50″ main frames or 86″ main frames (designated with a “B”).

Features May Include:

This heavy-duty primary tillage tool cuts and sizes residue, eliminates clumps, and loosens packed soil, helping you prepare your ideal seedbed. It’s ideal for a wide range of applications.

• Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication
• Features 1½” square, high-carbon, cold-rolled steel axles

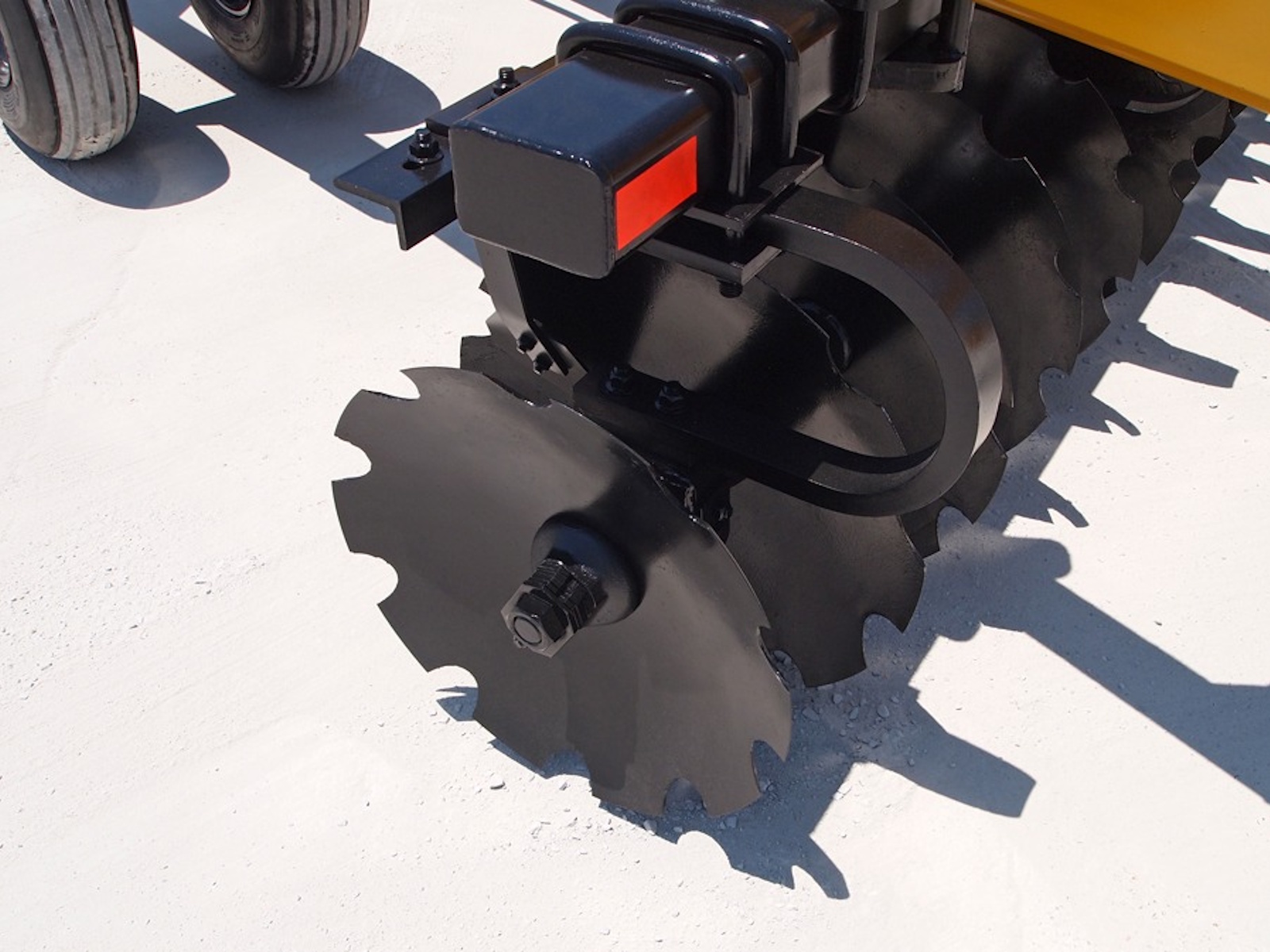

• Standard unit comes with 24″ x ¼″ plain or cutout blades; optional 26″ x ¼″ plain or cutout blades available
• Equipped with ³⁄₁₆″ x 6½″ x 8″ high-carbon steel, replaceable, adjustable scraper blades mounted on bars of 2½″ x 2½″ square tubing; the scrapers are attached to the 2½″ x ½″ thick arms with heavy-duty U-bolts
• Includes heavy-duty rigid bearing risers; Shock Absorber Bearing Risers optional

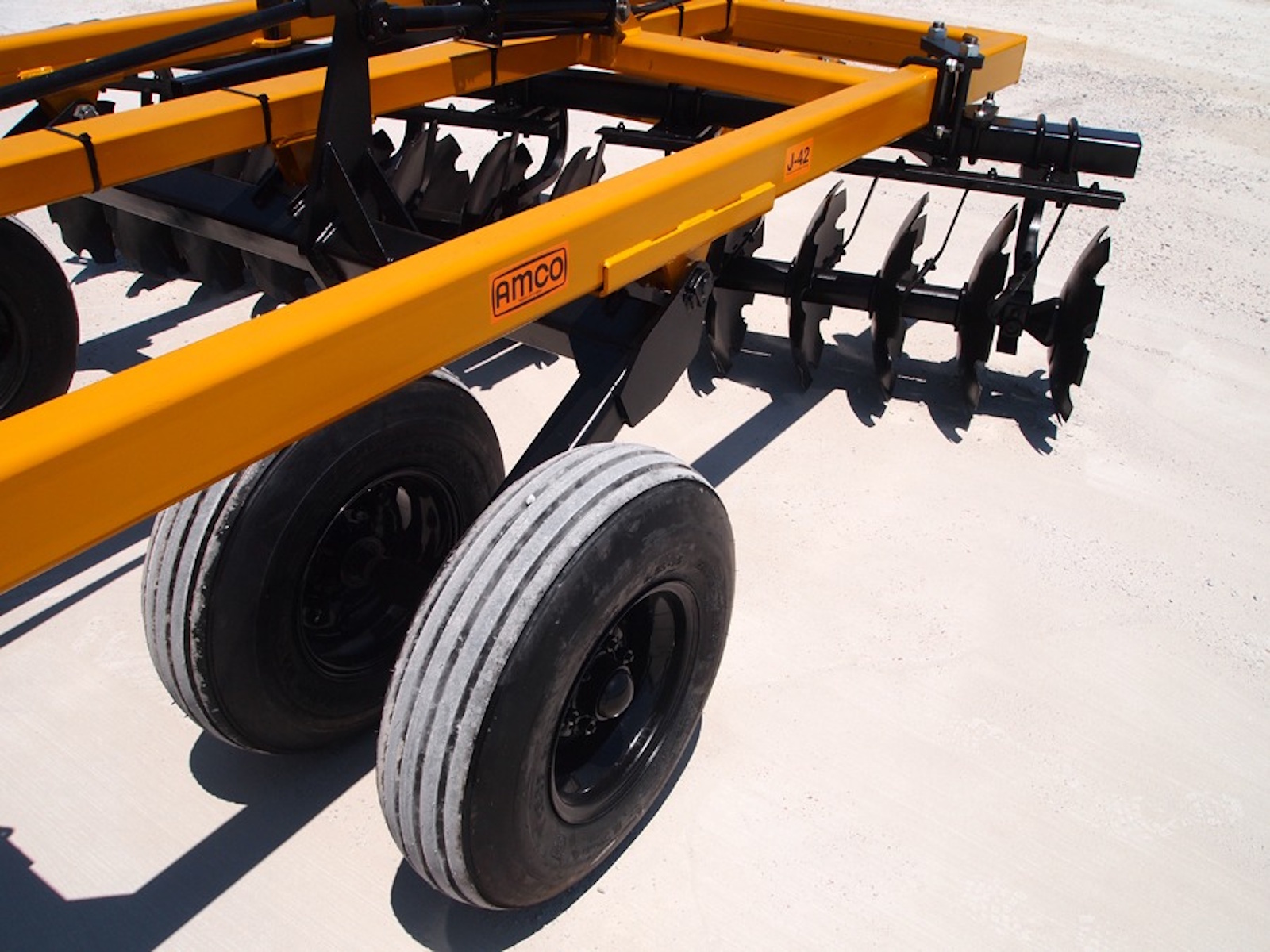

• Dual 9.5L tires on 15″ x 8″ 6-bolt wheels improve flotation
• Positive screw-type depth control maintains set cutting depth
• Wear guards protect bearing housing from excessive wear

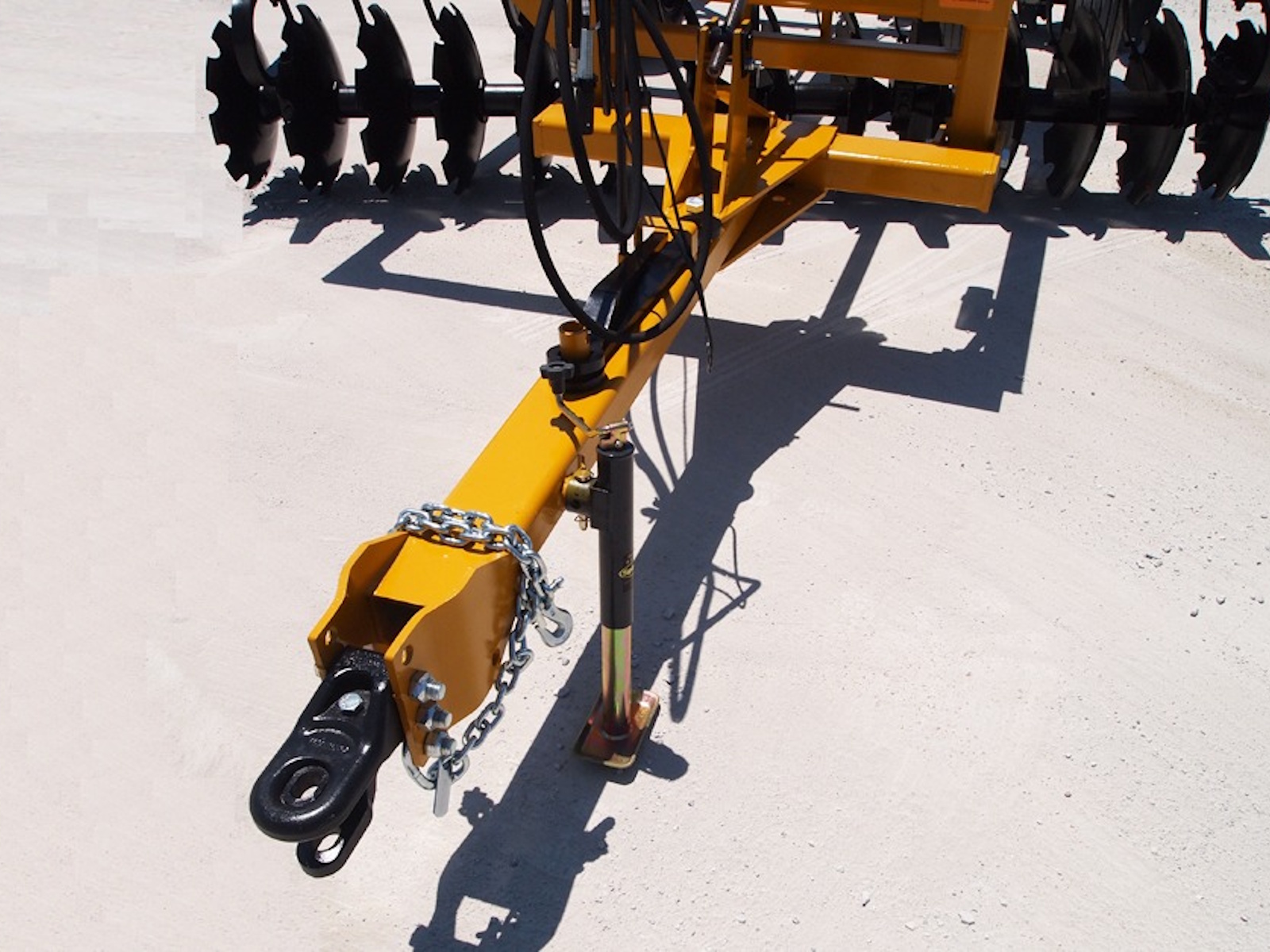

• Includes an adjustable 88½″ tongue with base hitch and tongue jack

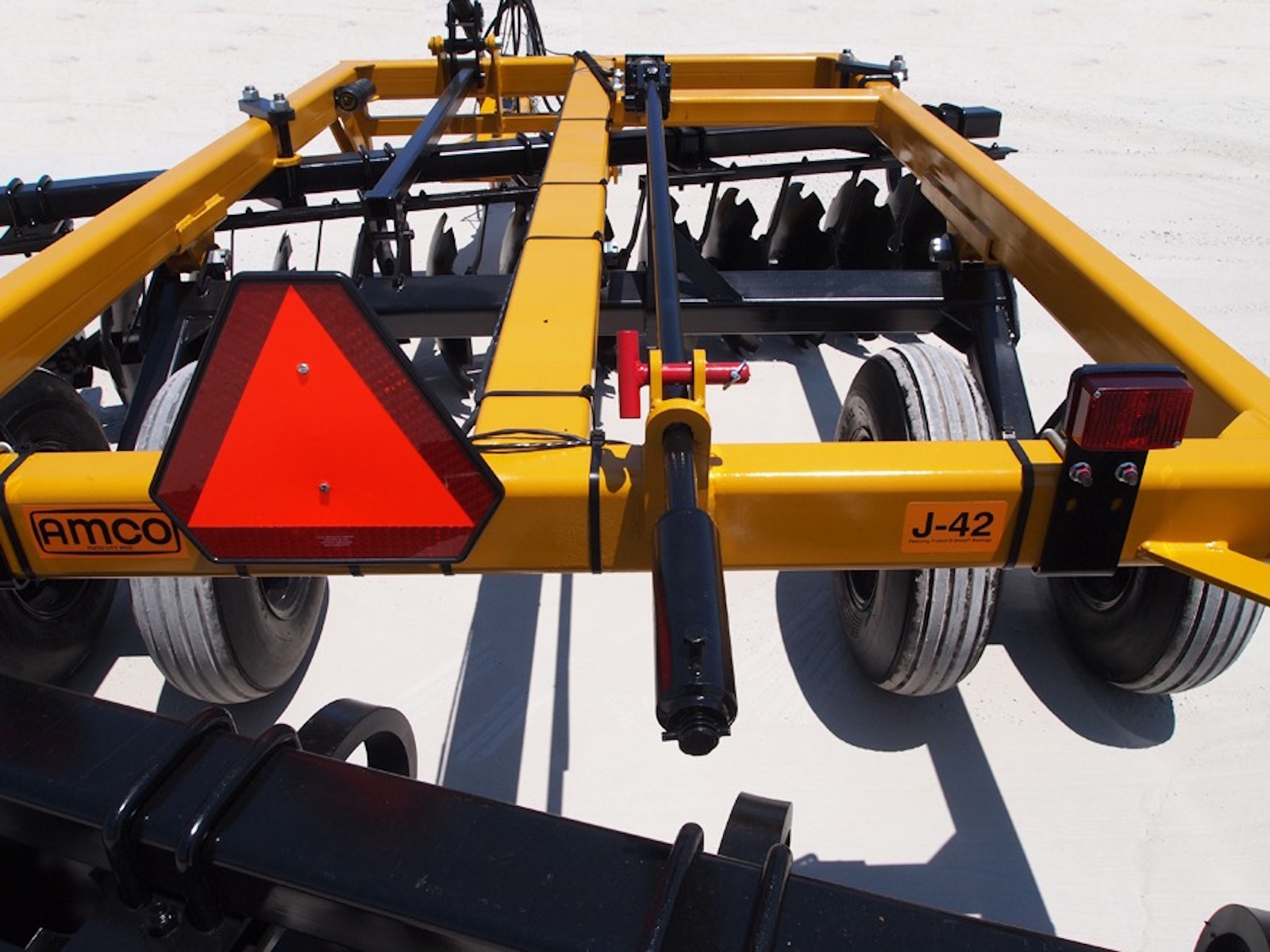

• Heavy-duty 3,000 PSI hydraulic cylinders adjust cutting depth and raise the disc for transport
• Features outriggers of 18′8″ and 20′6″

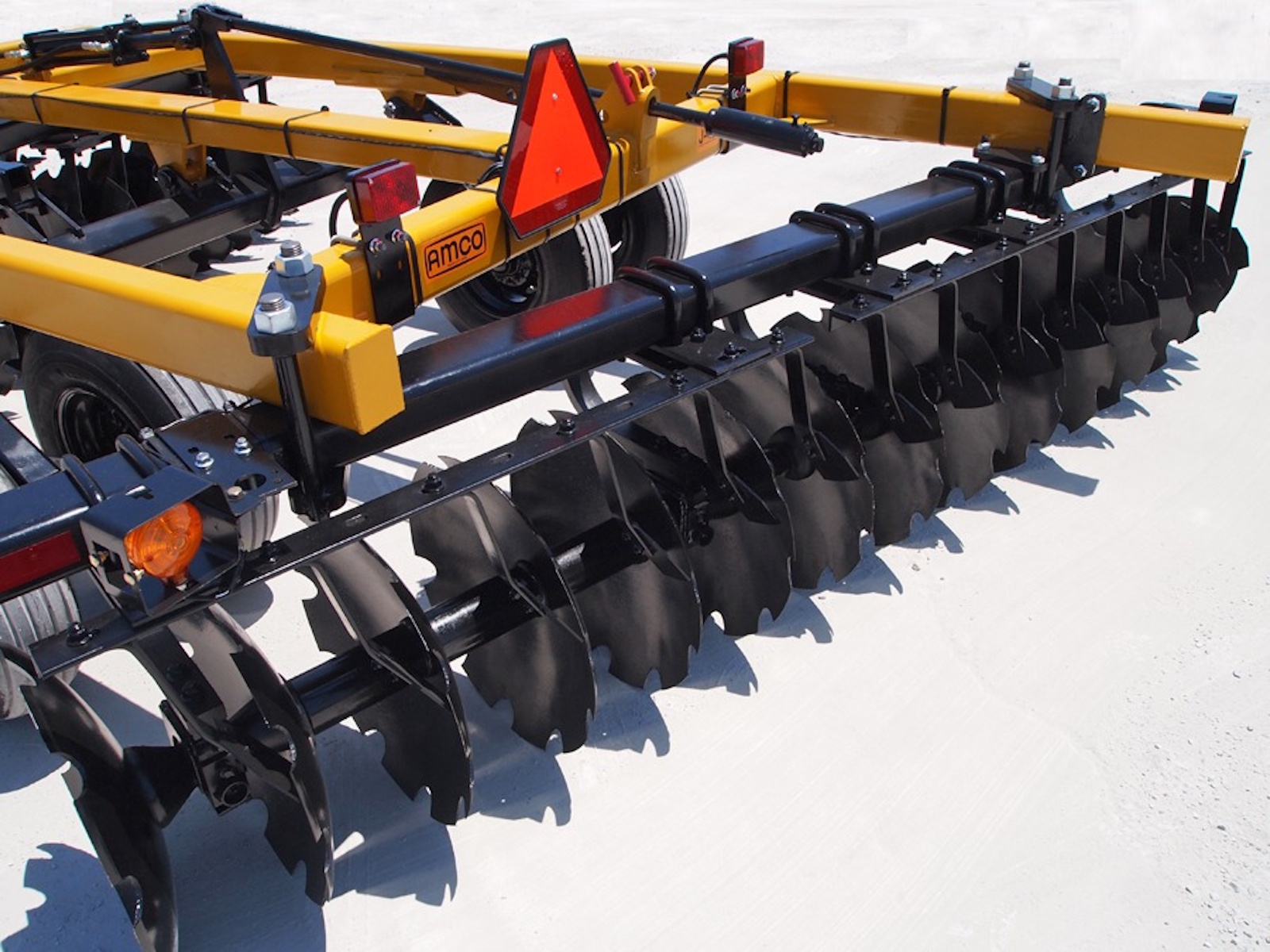

• Backup blades provide added support for working blades
• Weights of 164 to 208 pounds per blade

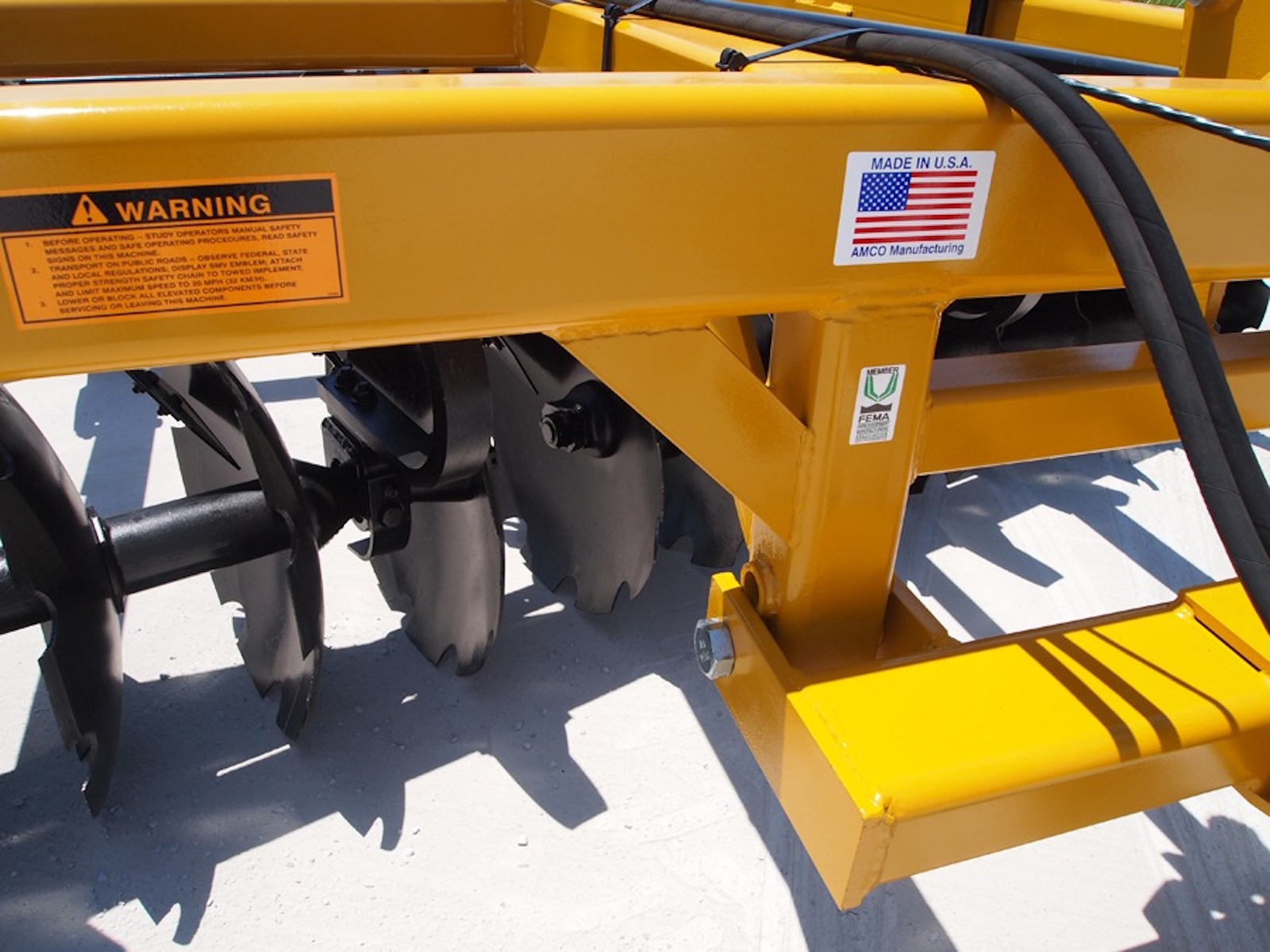

• Safety features include safety chains, slow-moving placard, and light kits
