2026 Arrow Cattlequip Cattle Sorting Alley Arrow Draft Module

Sort Or Draft Cattle Any Way You Like
Arrowquip Cattle Sorting Alleys are built for ranchers who need fast, safe, and efficient cattle sorting in any setup. Designed for flexibility, it lets you sort cattle in up to three directions with ease, whether within the alley system or after the chute, helping you move livestock quickly and confidently.

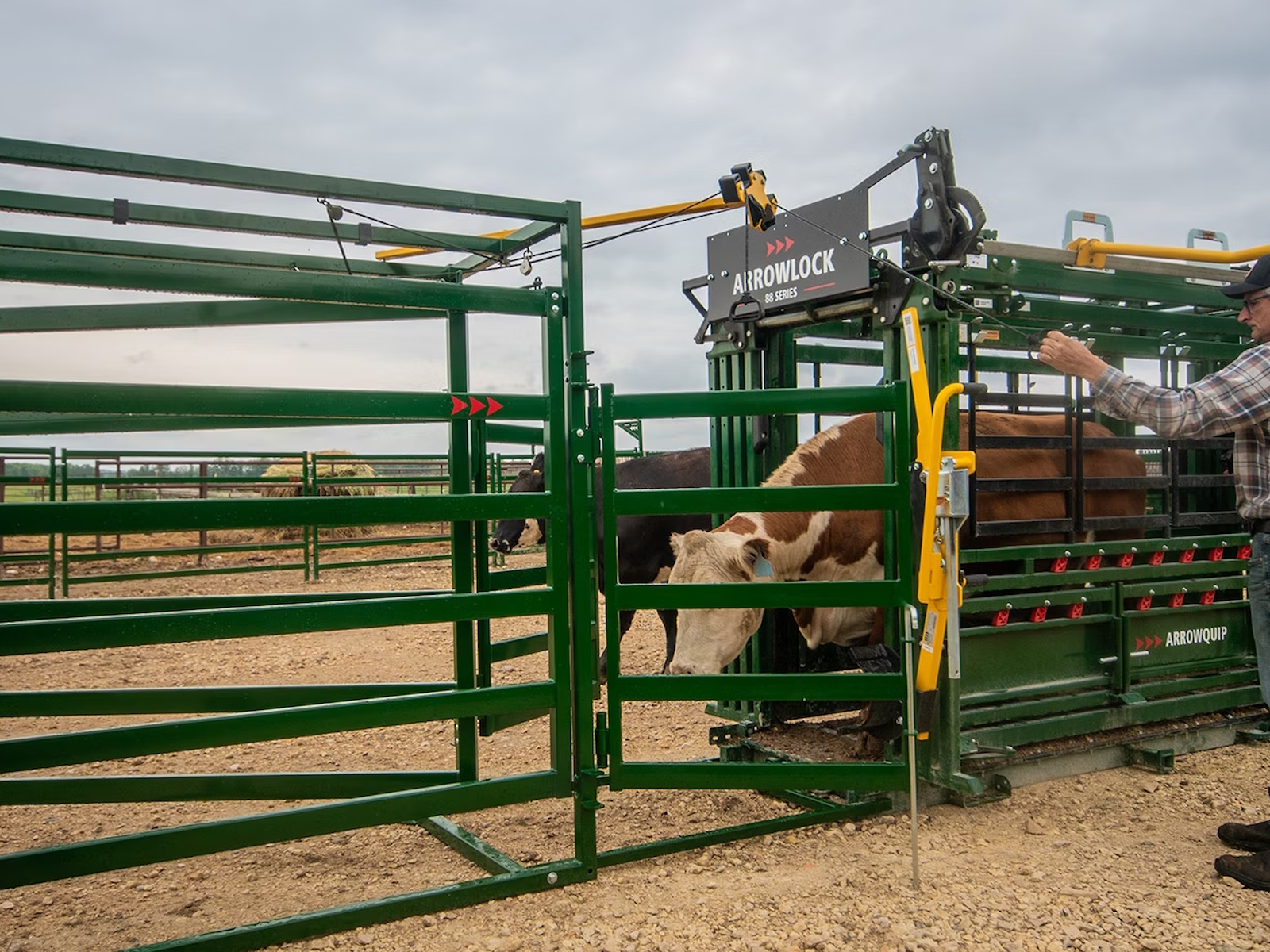

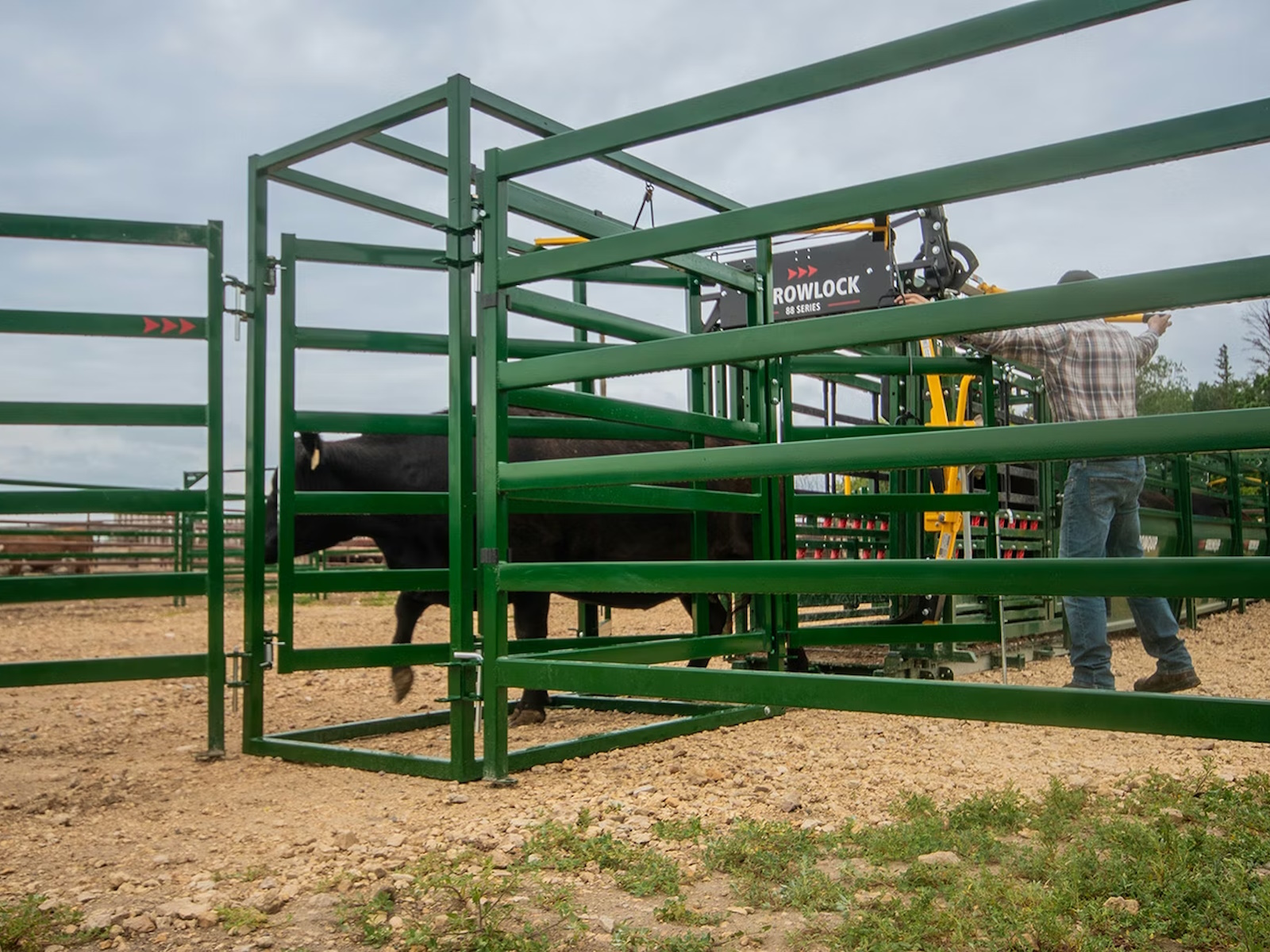

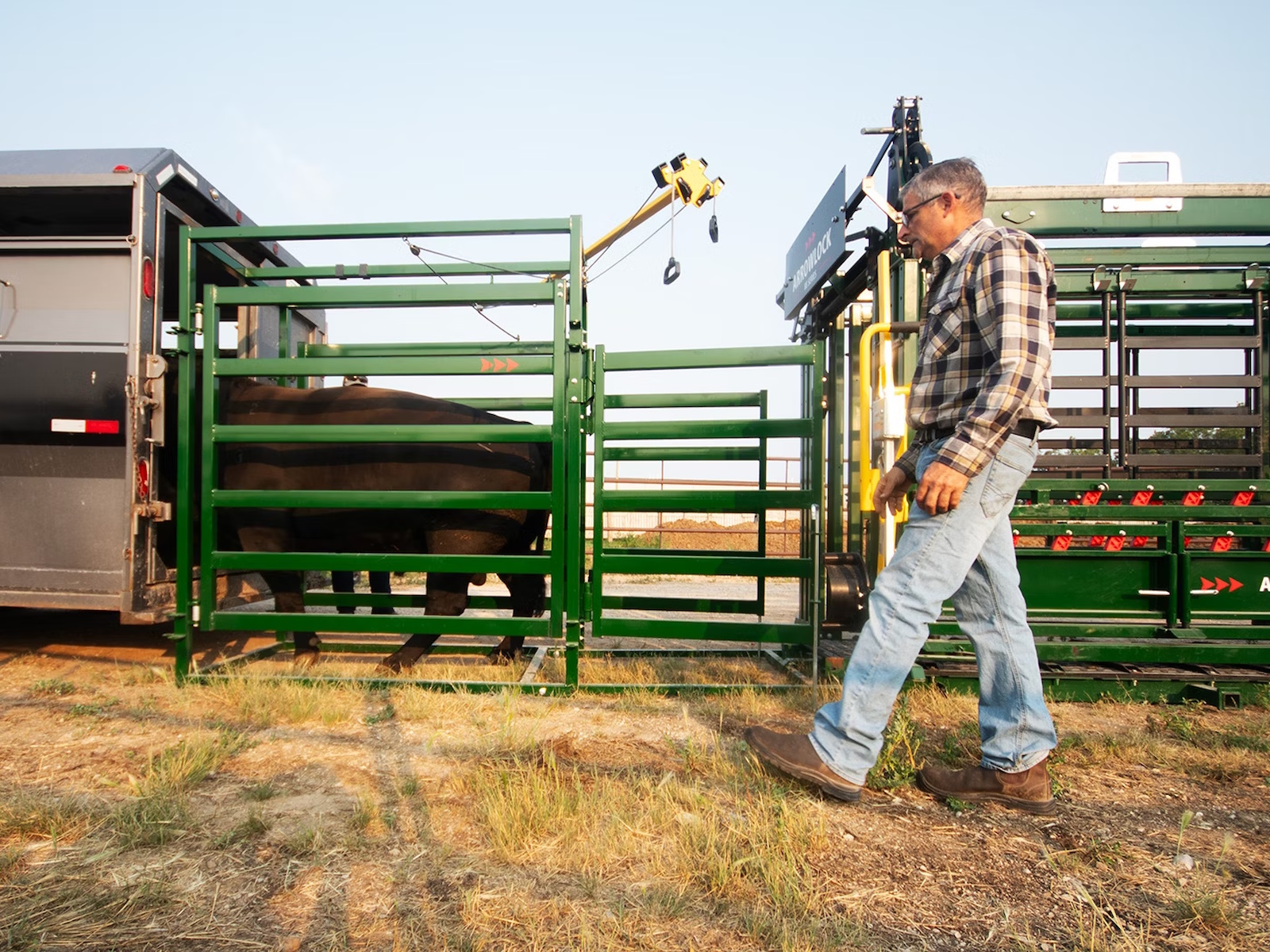

Post-Chute Drafting is now possible by placing the upgraded Arrow Draft Module after the chute. Unlike manually separating livestock in a pen, running cattle through a system to draft is a safer and faster way to send cattle into different yards.  

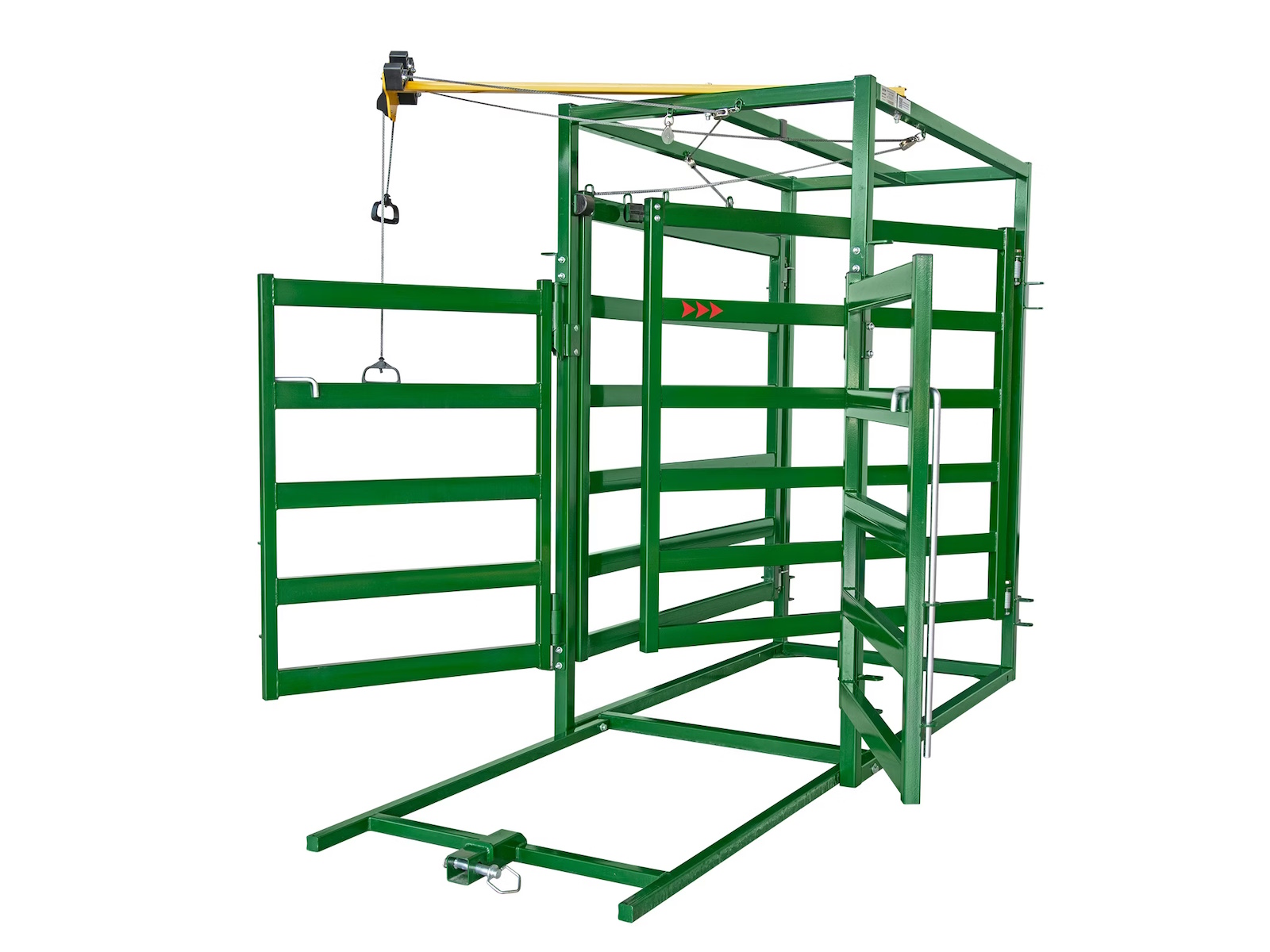

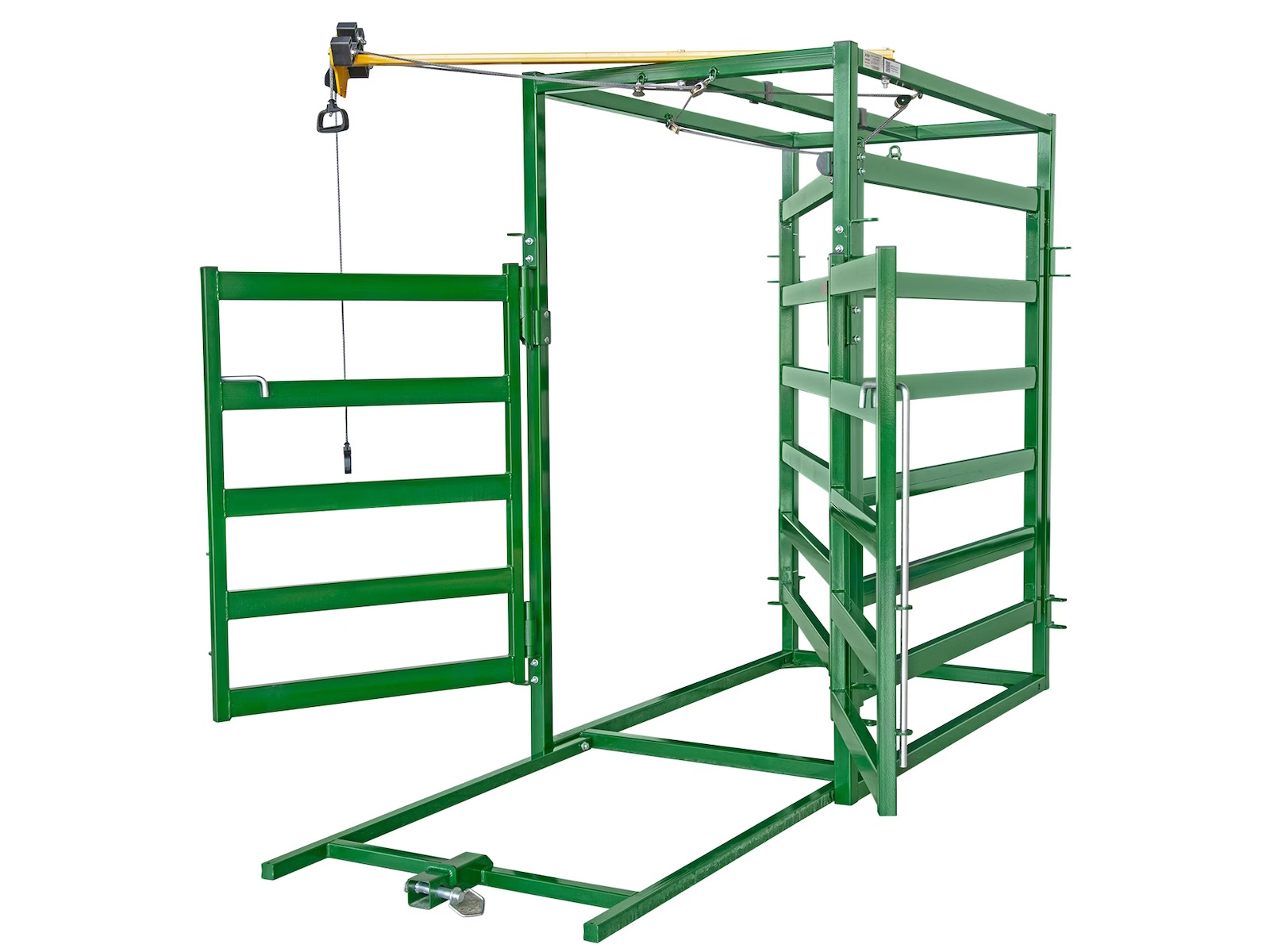

The Arrow Draft Module gives solo ranchers an extra set of hands, allowing for efficient drafting in three directions after working cattle through the system. With a wider frame and intuitive pre-routed rope controls with locking cleats, you get faster setup and smoother operations. 

More light and easy controls let you change sorting and drafting directions quickly without slowing cattle flow.

Features may include:

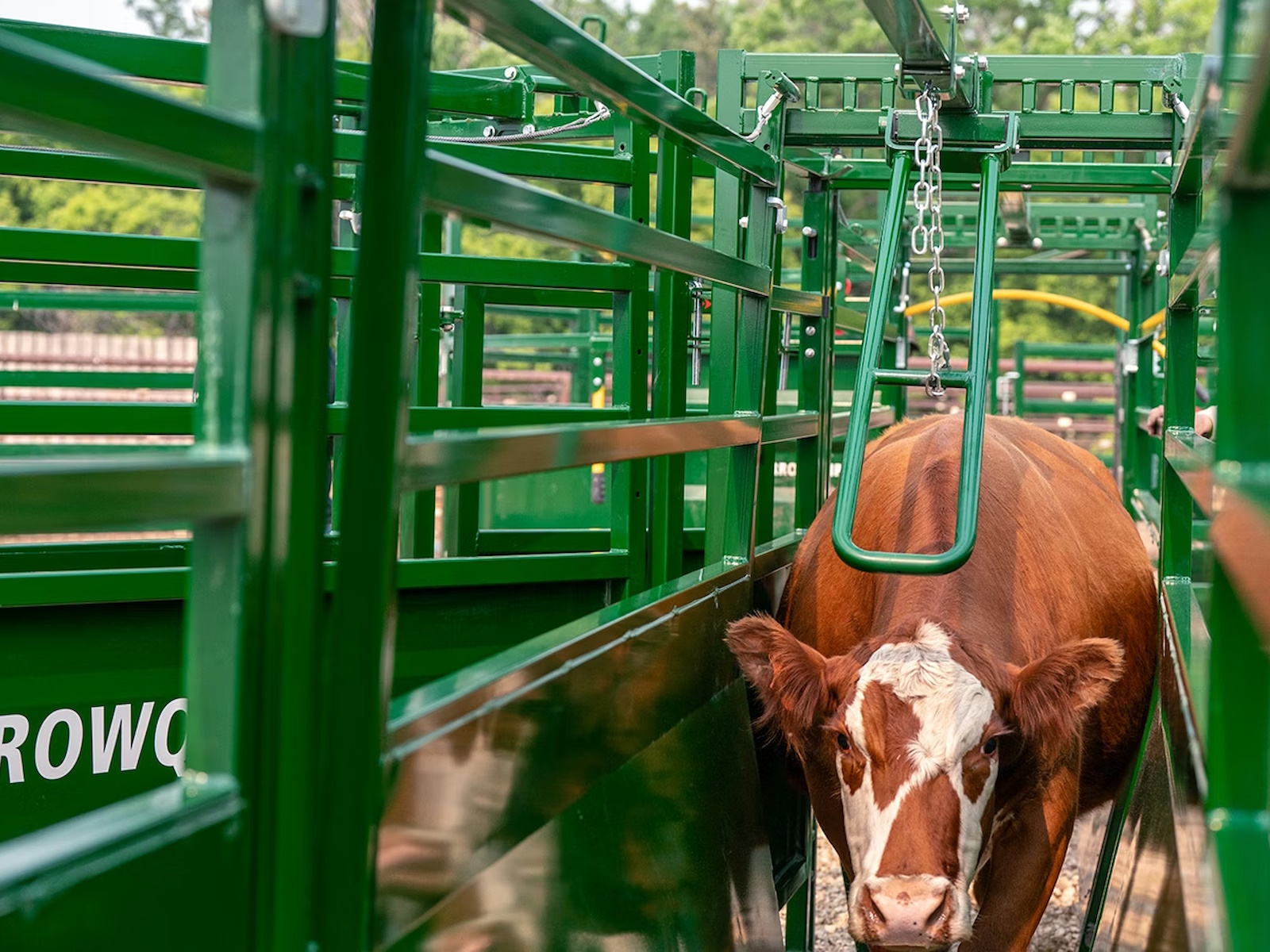

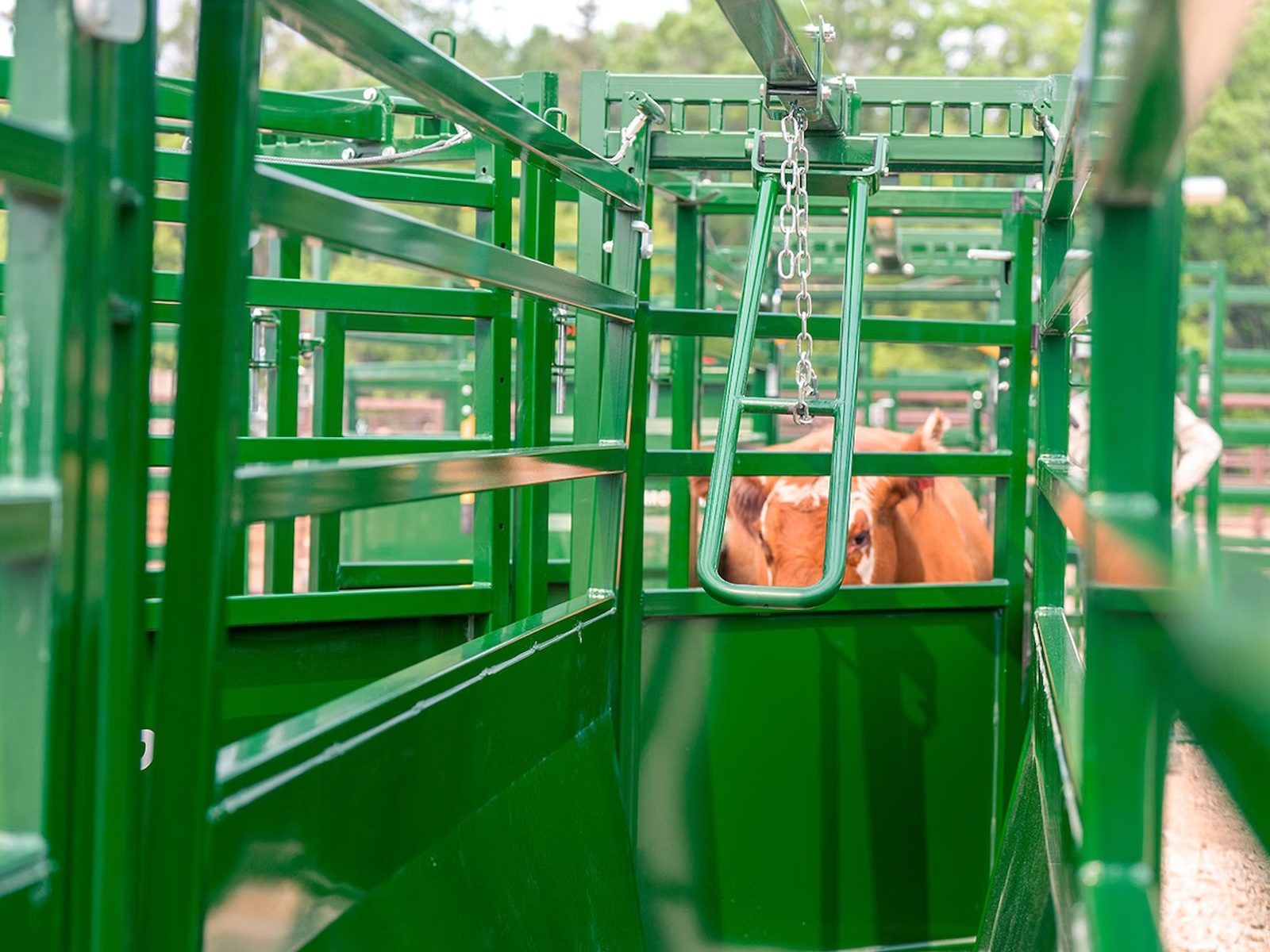

Pre-Chute Sorting

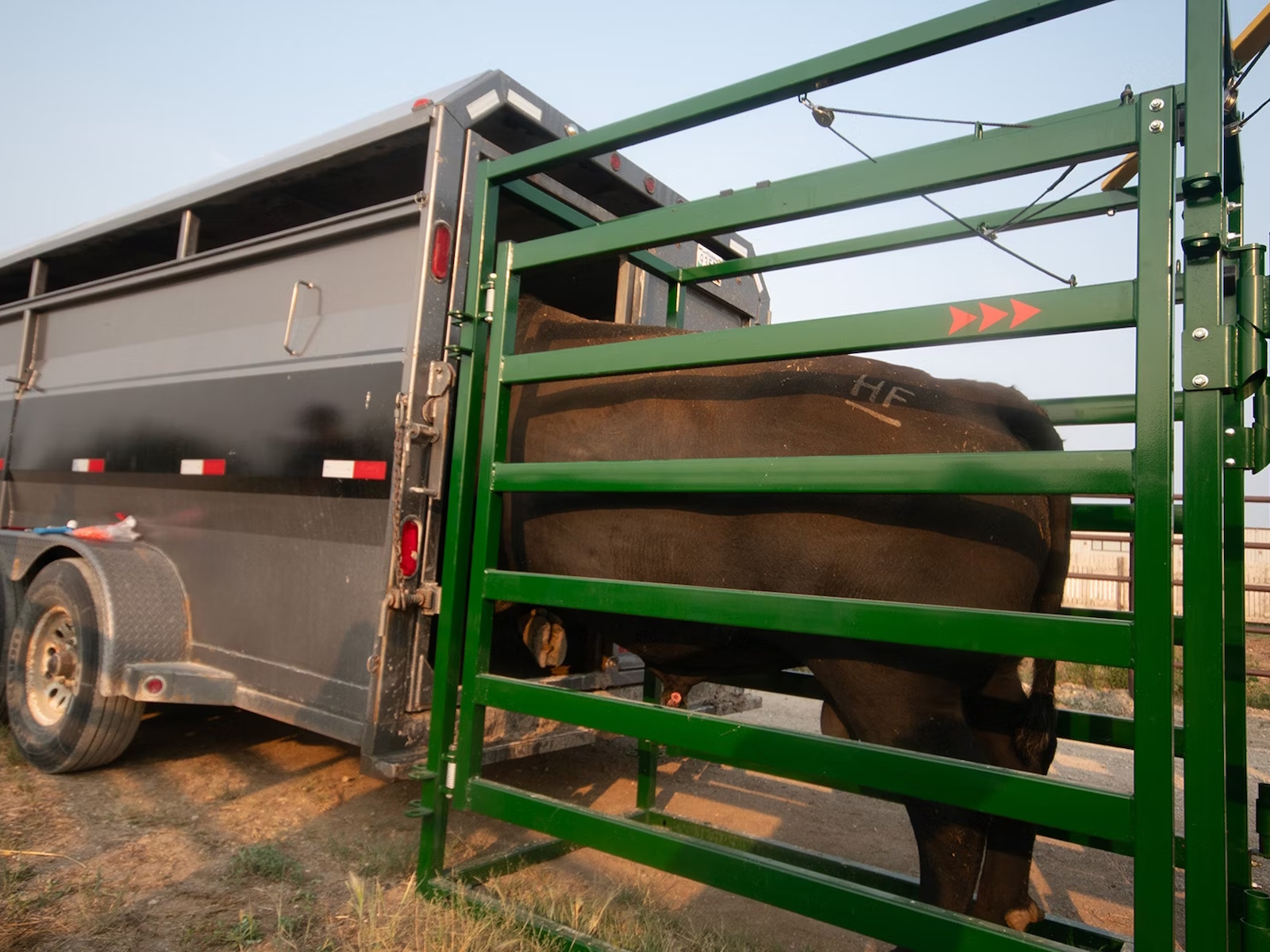

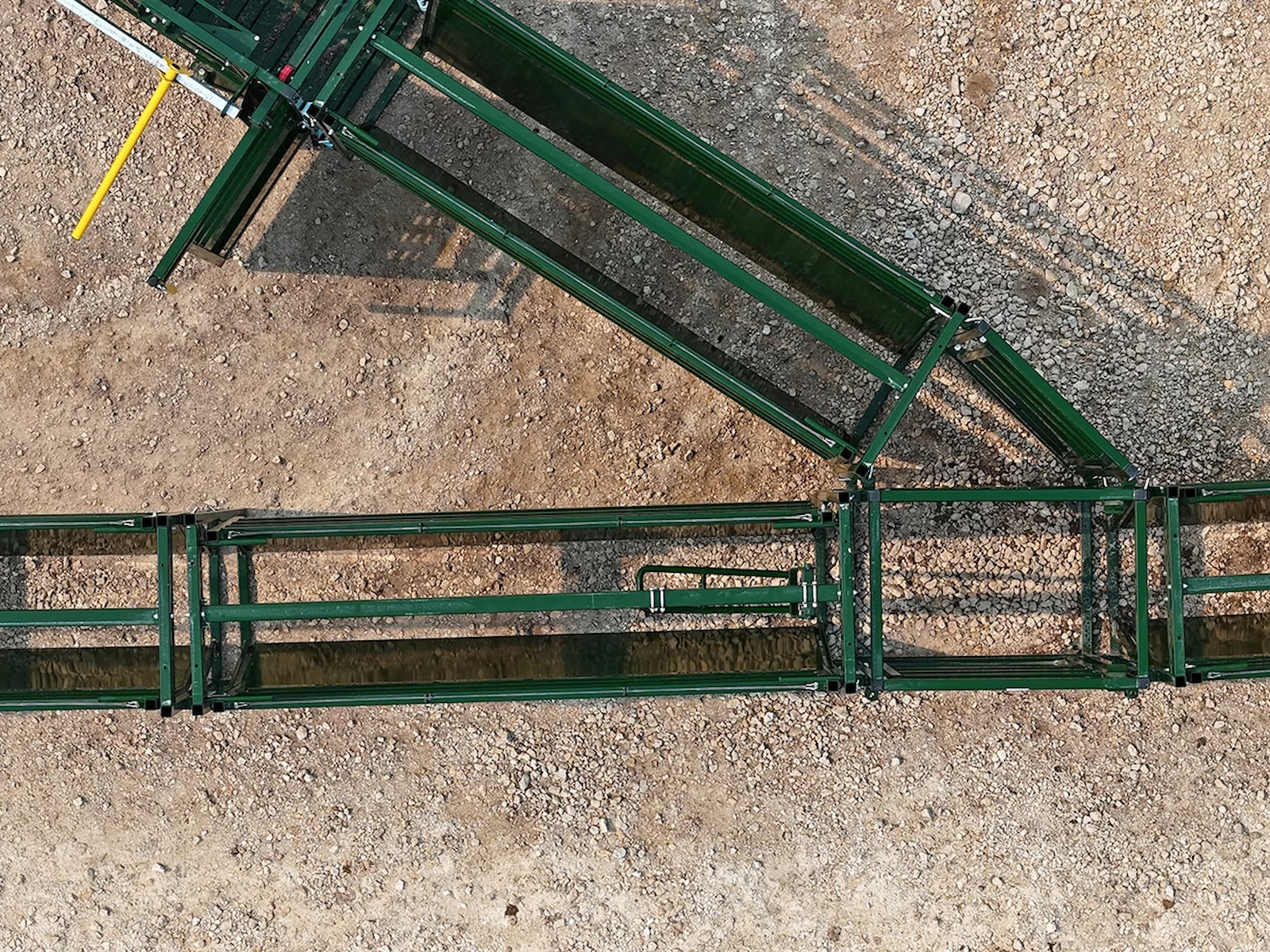

• By pairing Cattle Sorting Alleys with Easy Flow Alleys, you can easily create a system that leads to different exits, such as a chute, loading ramp, or yard.

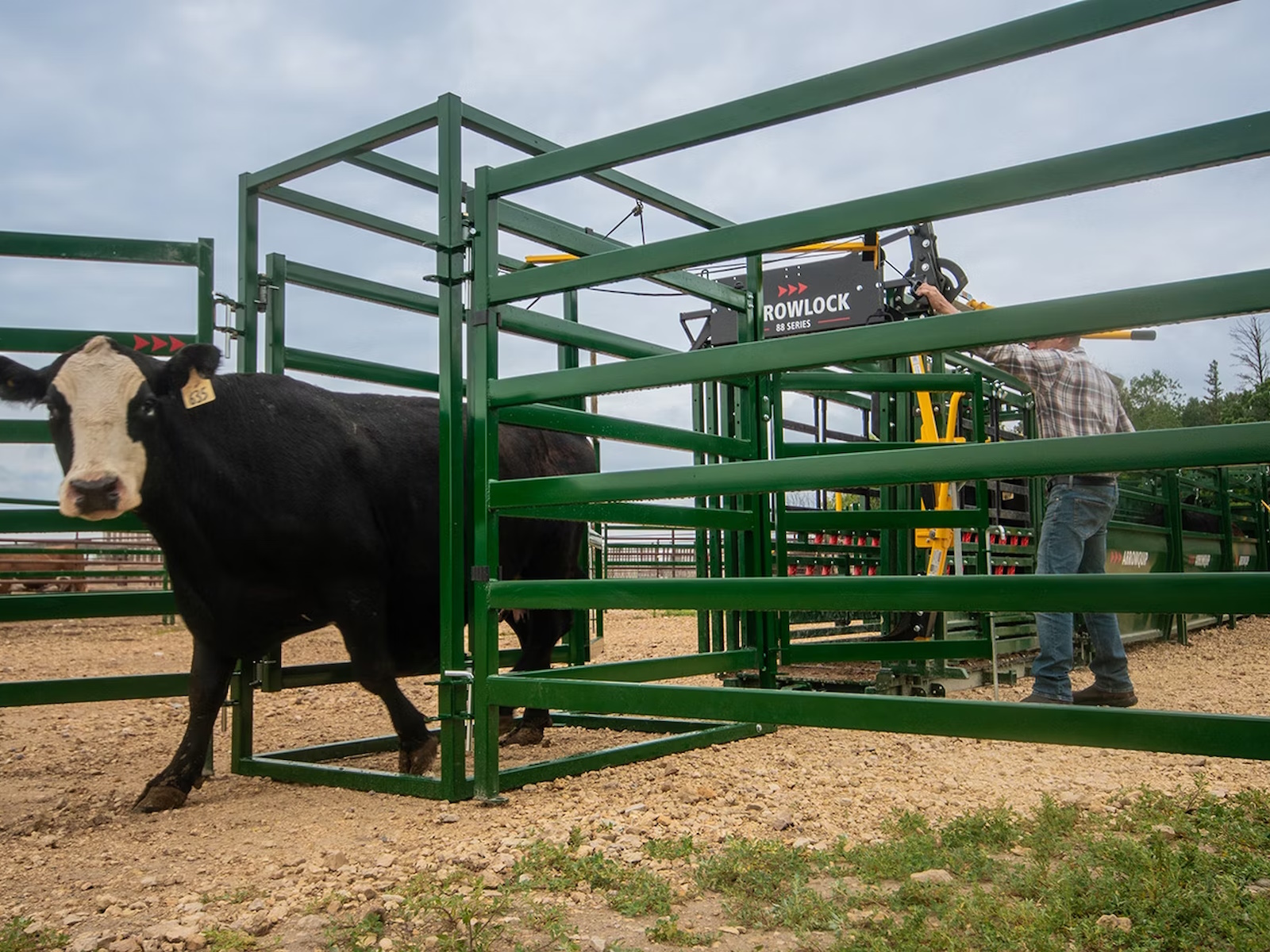

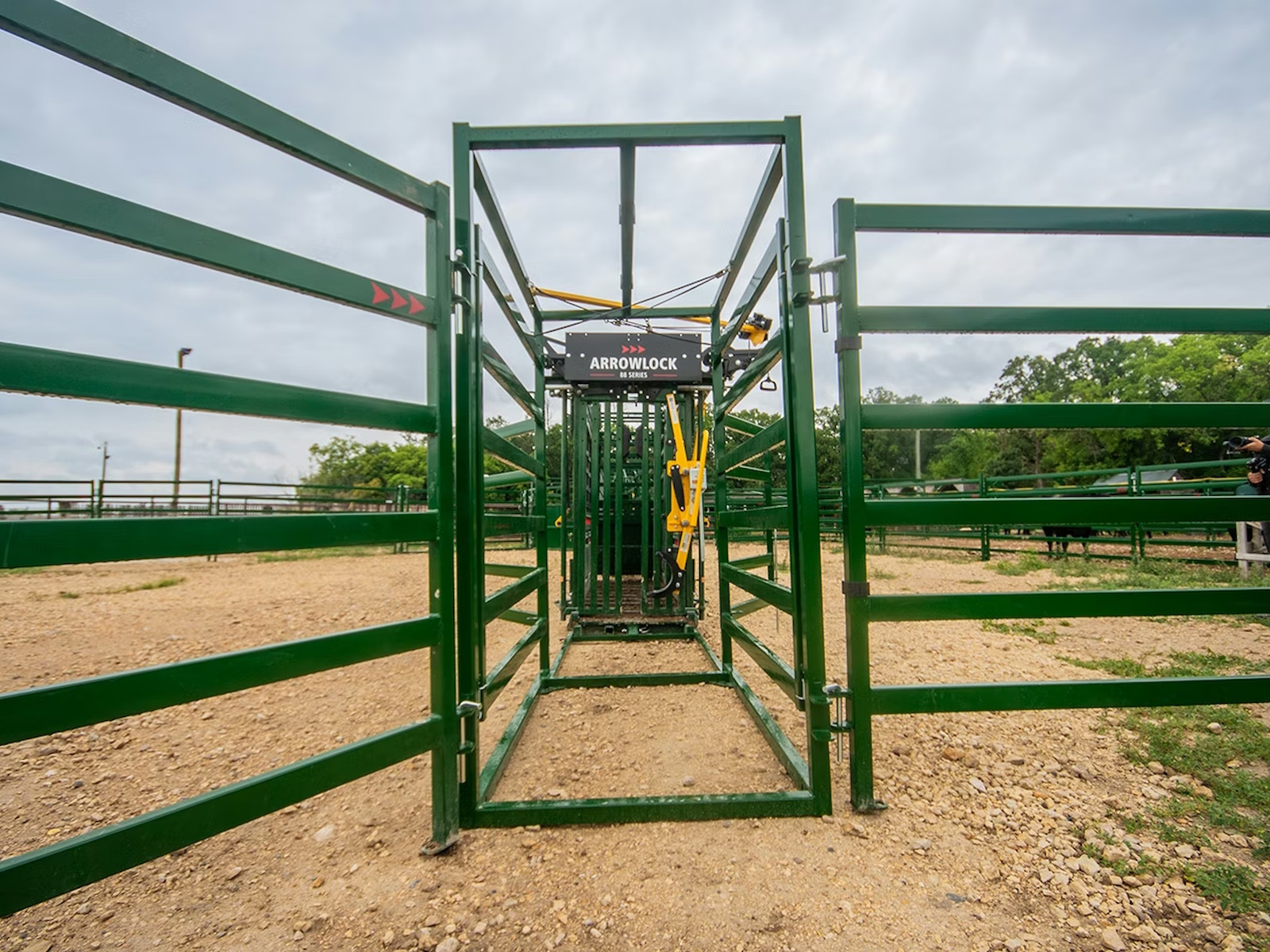

Post-Chute Cattle Drafting

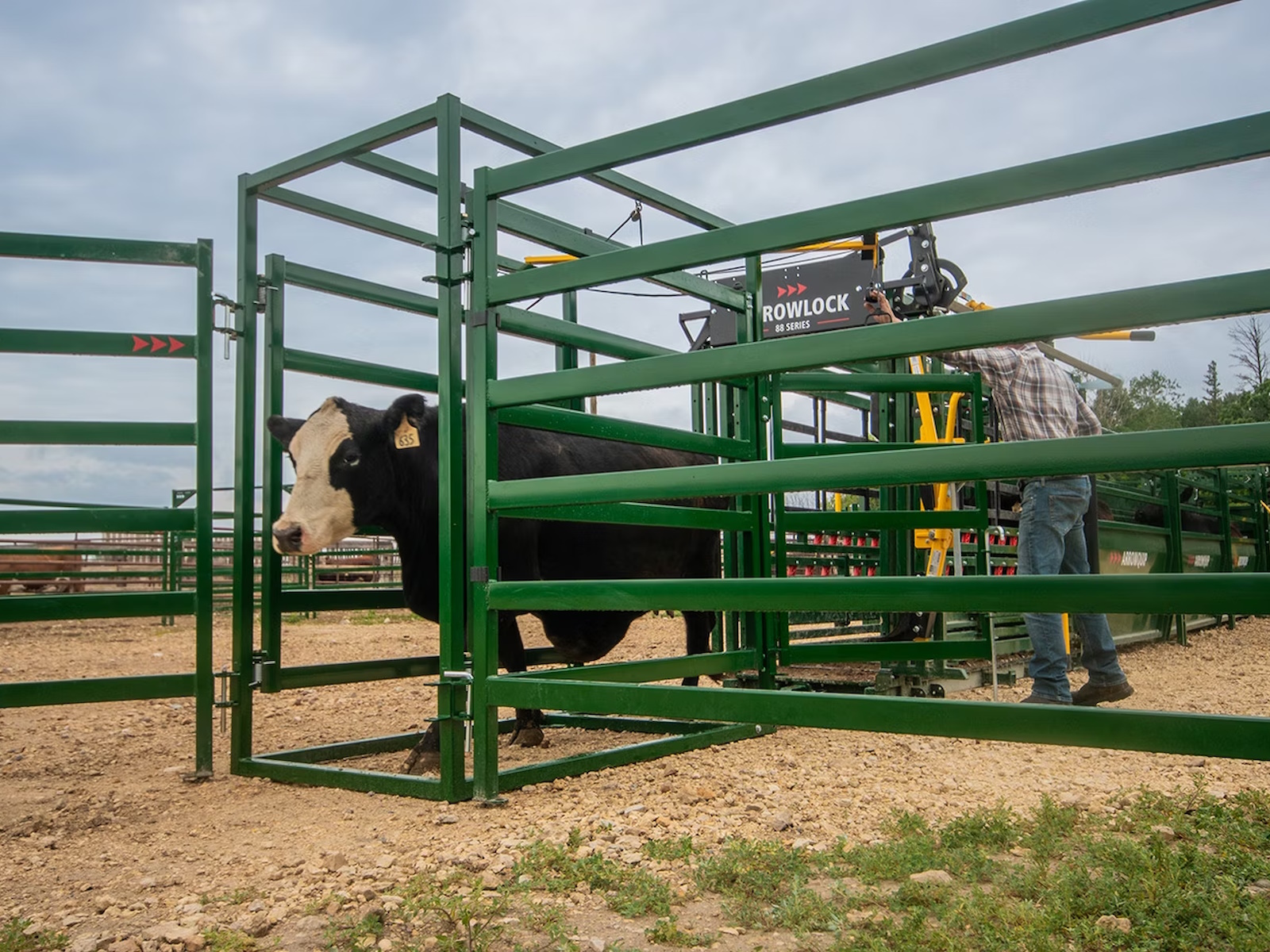

• Stay out of harm’s way by adding the Arrow Draft Module to your system. You can efficiently draft cattle after they have been tagged or treated without having to be in the pen. 

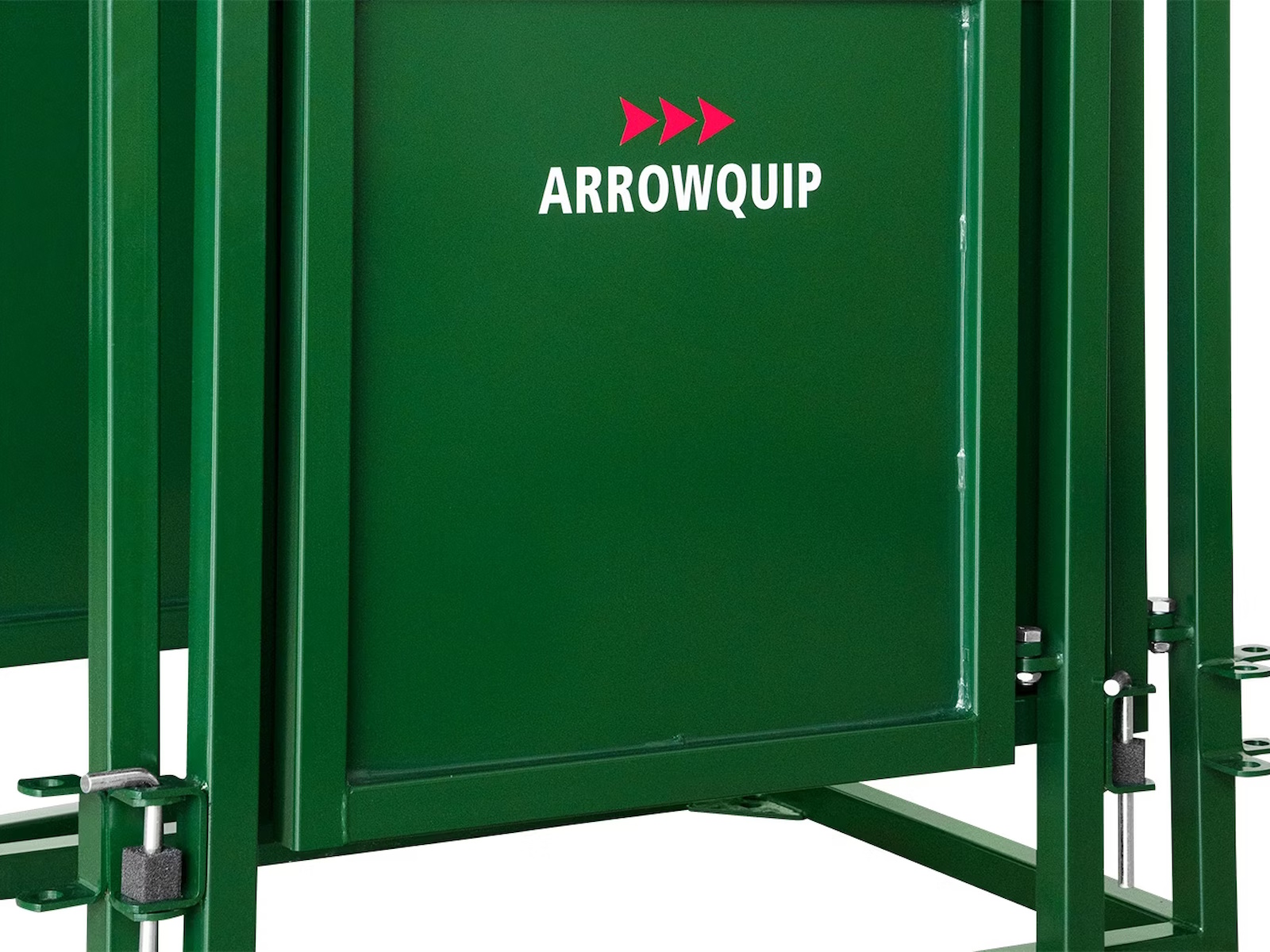

42” Sheeted Sides

• Sorting is a high pressure point in your cattle handling system. For this reason, Arrowquip Diversion Gates feature 42” sheet metal, limiting the ability of cattle to see the operator and making for an easier sorting process.  

Left or Right-Handed Operation

• These sorting cattle alleys can be easily configured for operation from the left or right-hand side using the same pieces, whichever works best for your operation.  

Easy Pass-Through Access

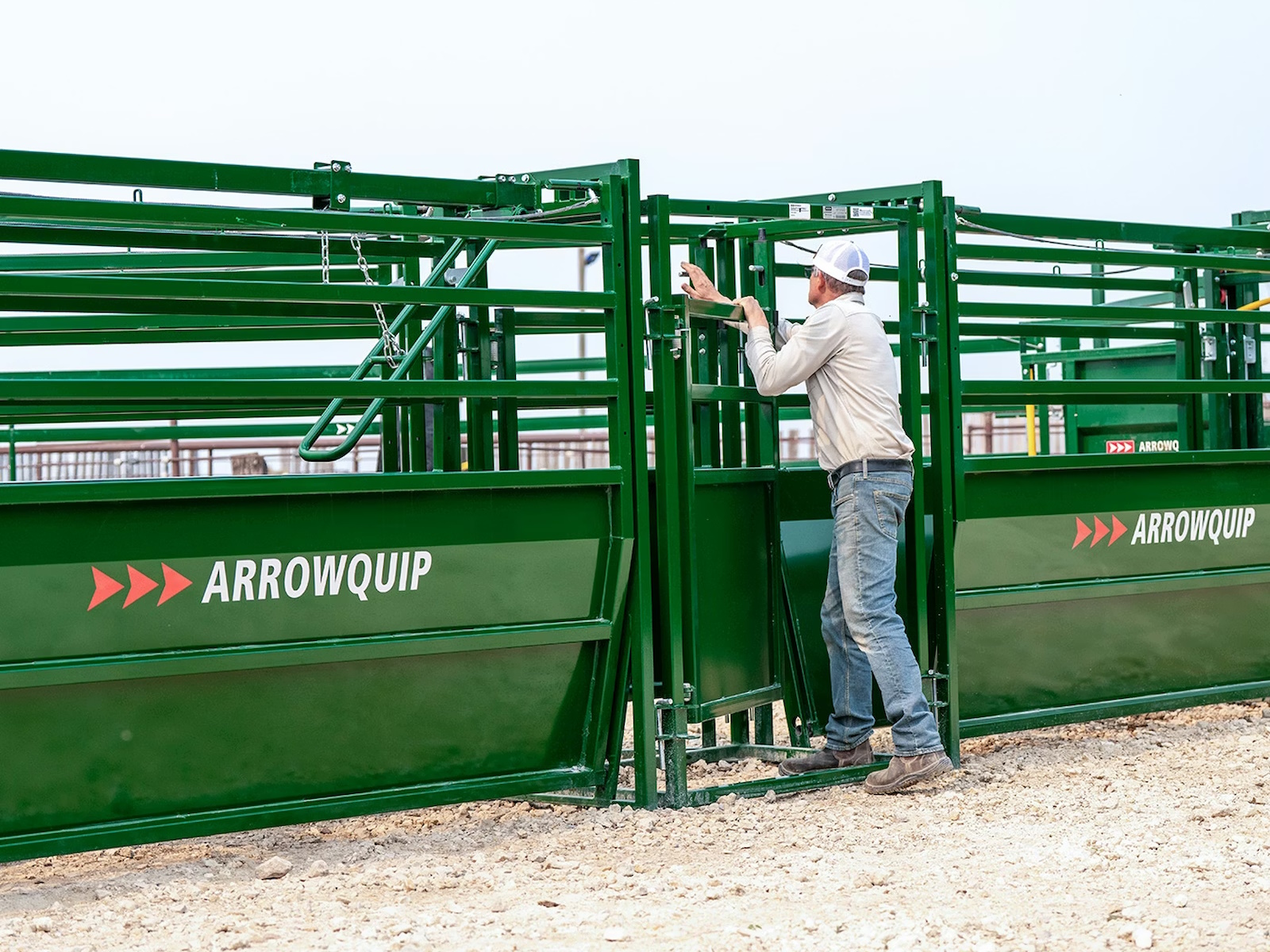

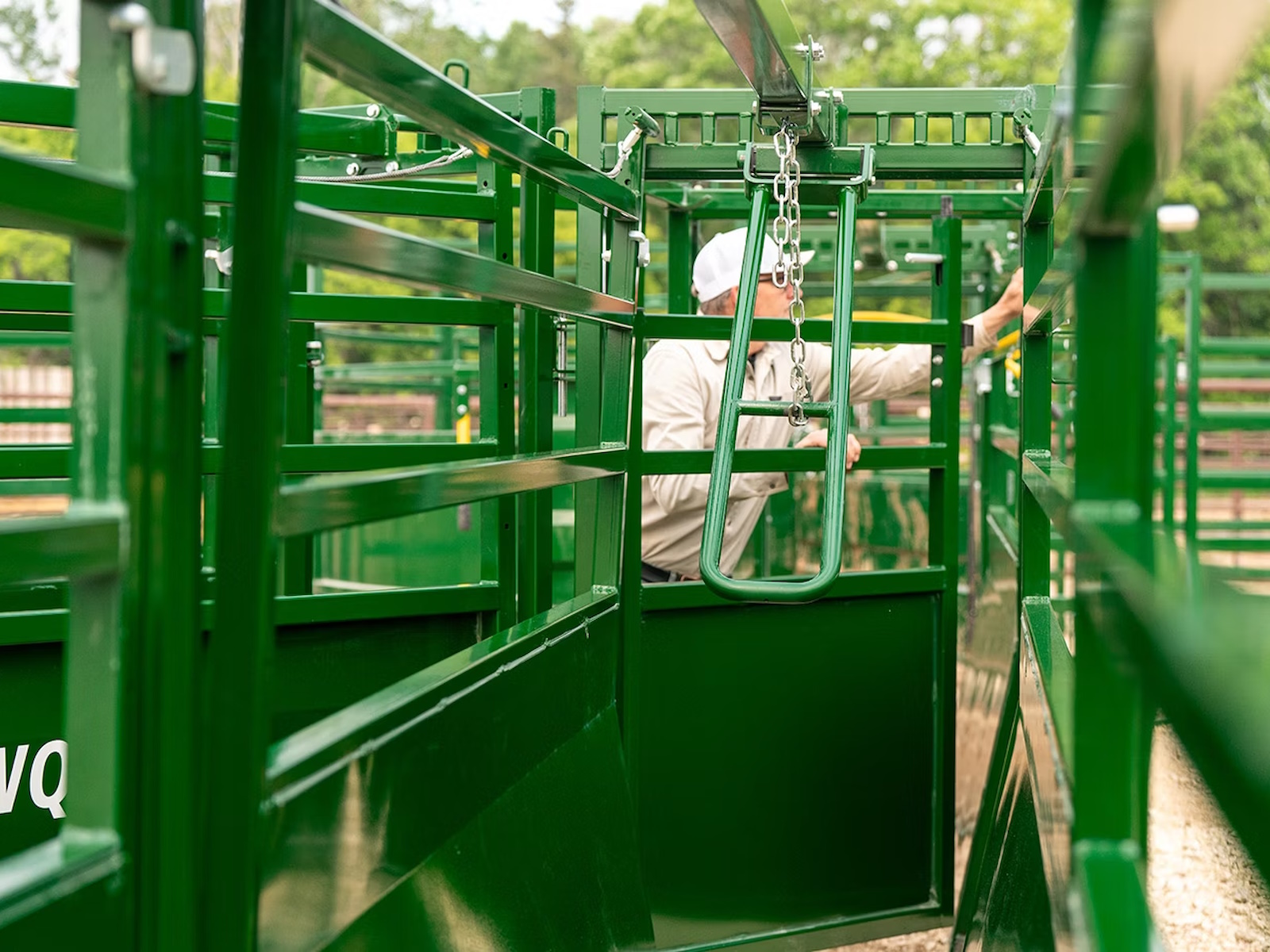

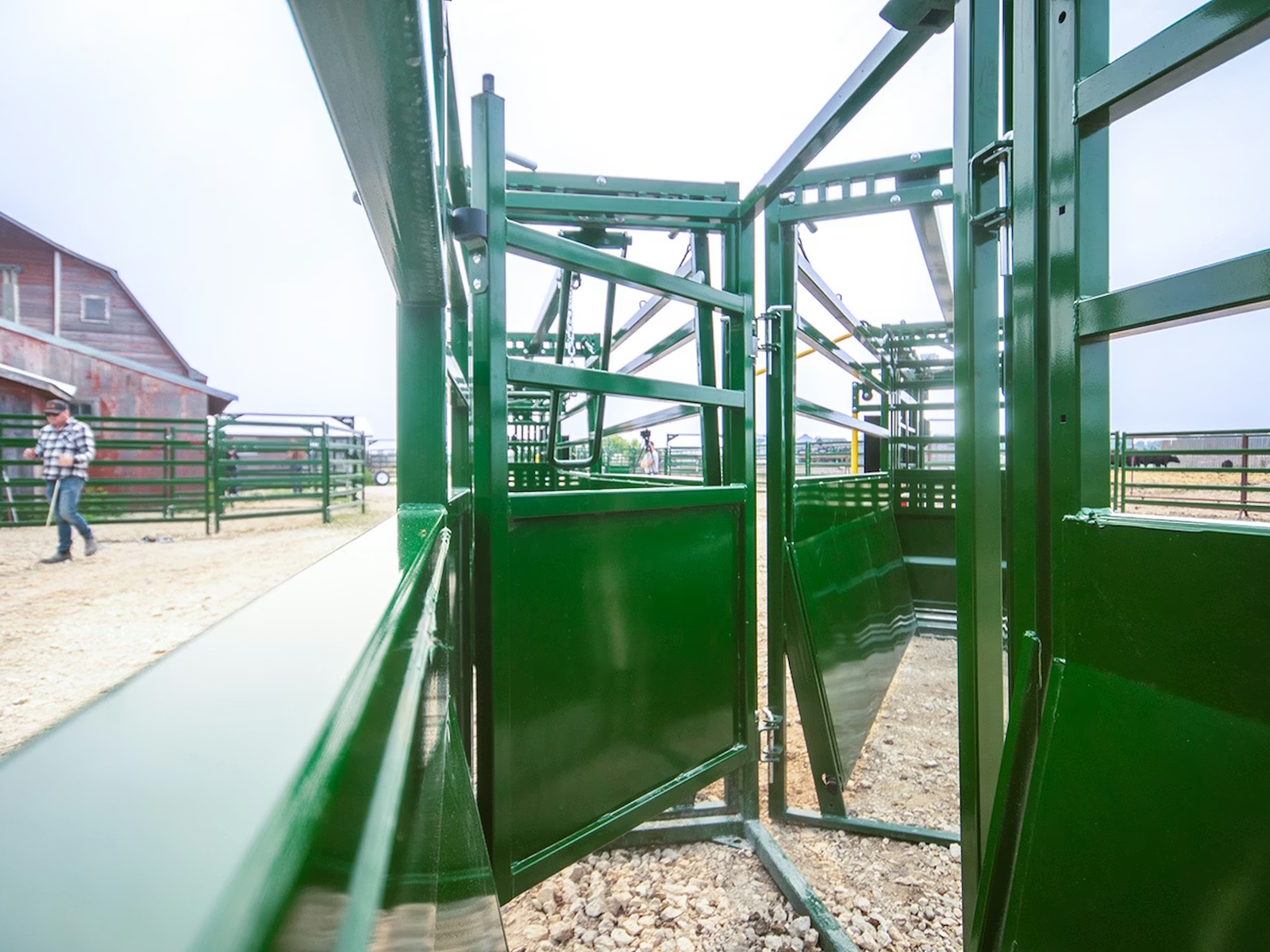

• Move through the system quickly without disrupting cattle flow with man gates on Diversion Gates and self-returning access doors on the Arrow Draft Module.  

3E Open Rails

• Unsheeted rails on the Arrow Draft Module let in maximum light, reducing stress for cattle while maintaining the visual barrier they need to move confidently.  

Protected for the Long-Haul

The Arrowquip Cattle Sorting Alleys are engineered to take on the demanding, high-traffic use that comes with sorting livestock day in and day out. Backed by Arrowquip’s trusted warranty, your investment is safeguarded for years to come, so you can sort cattle with total confidence.  

• 5-Year Warranty 

Designed Around Cattle Psychology

Built around the natural behavior of cattle, the Cattle Sorting Alleys make it easy to guide cattle calmly and efficiently through your system. With strategic sightlines and a design shaped by animal psychology, cattle move willingly and with less stress.

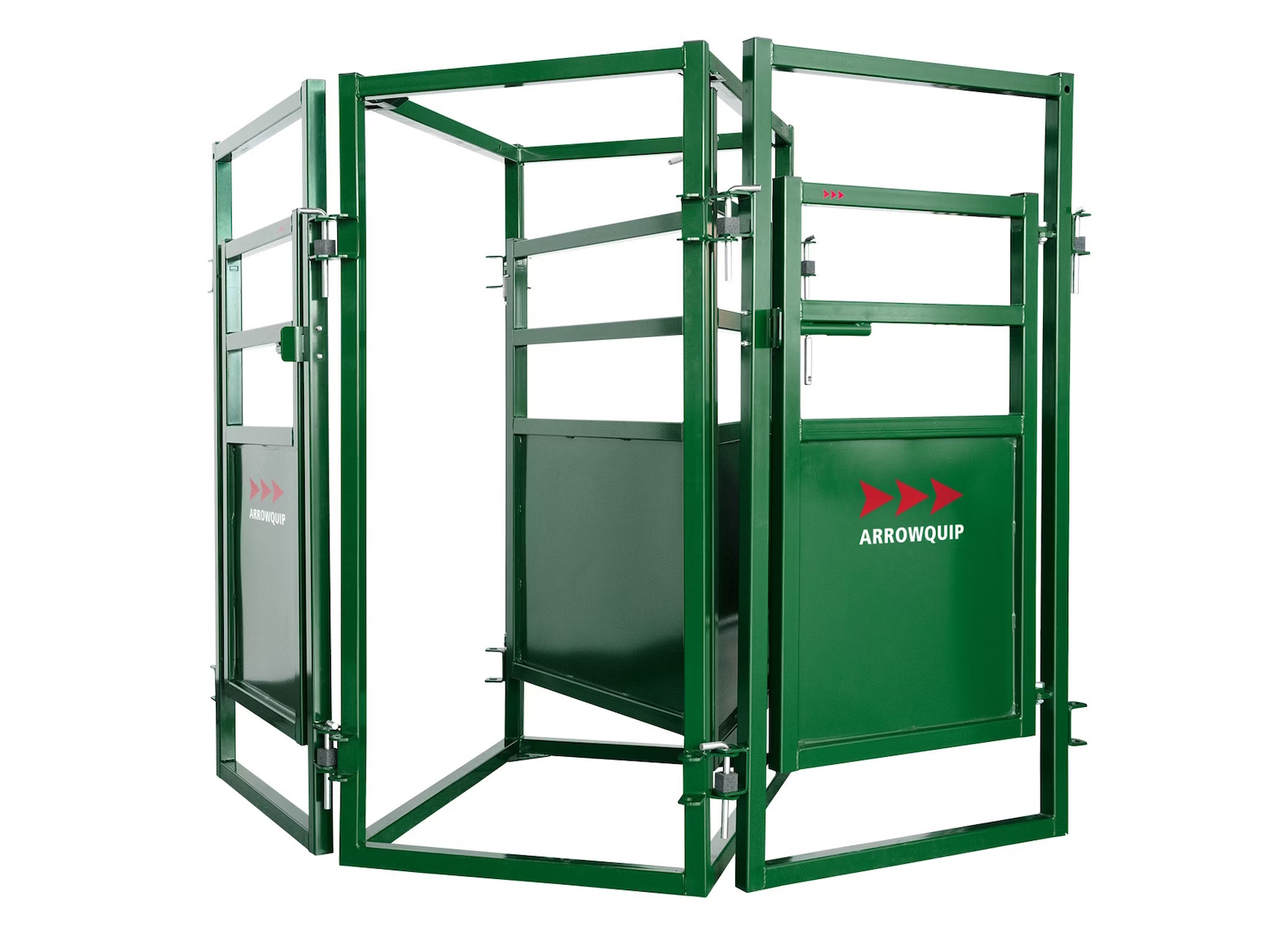

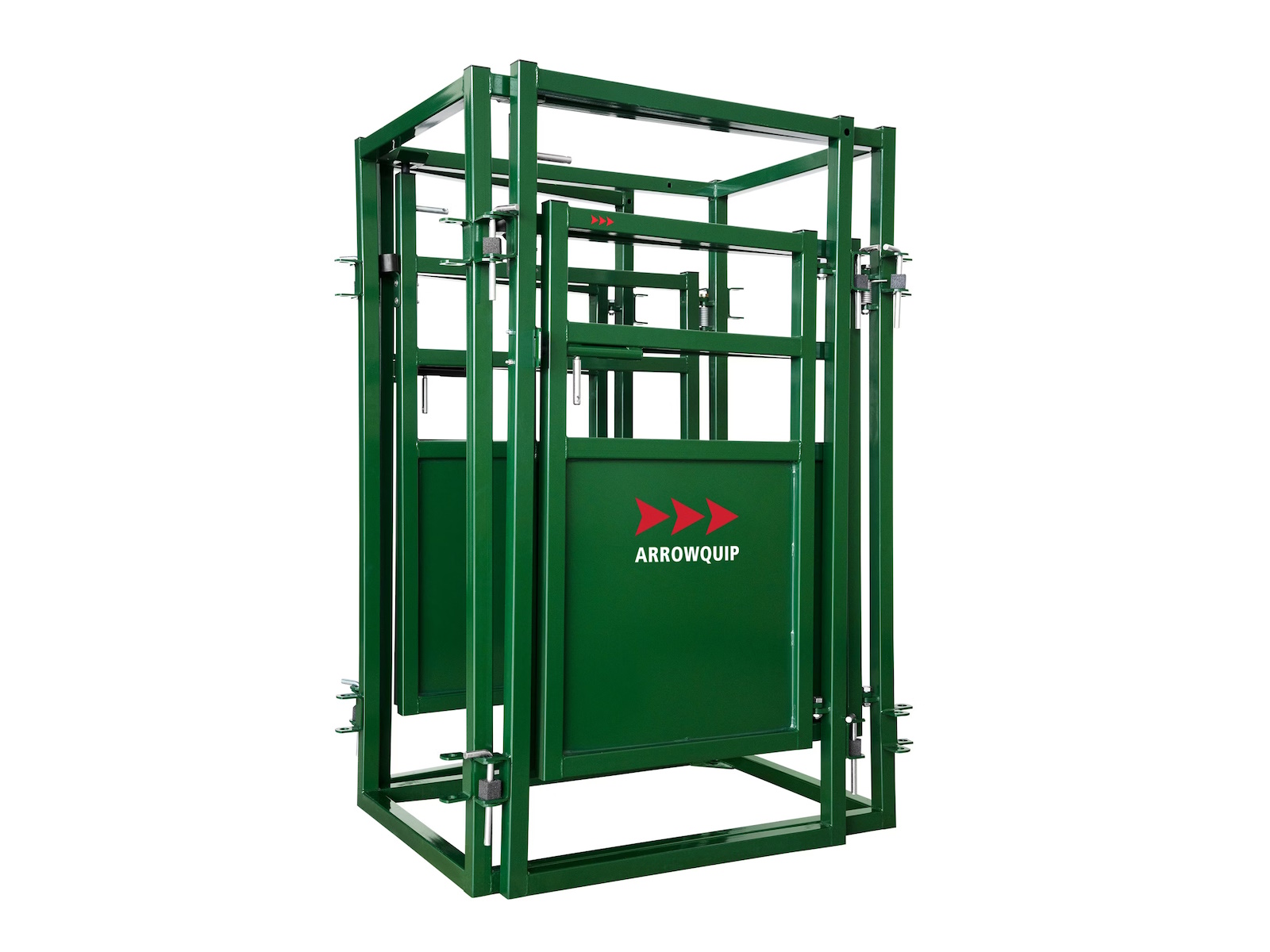

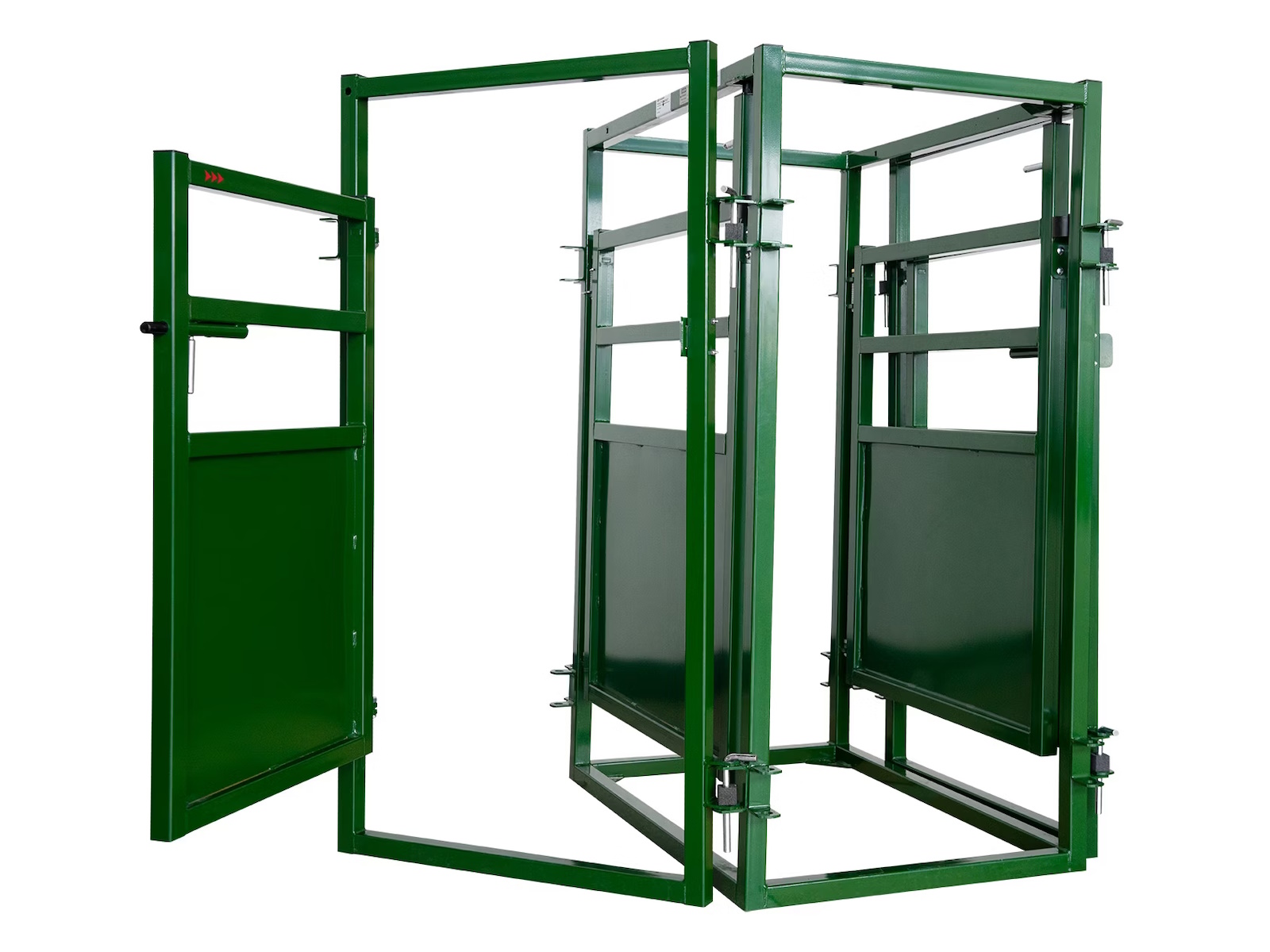

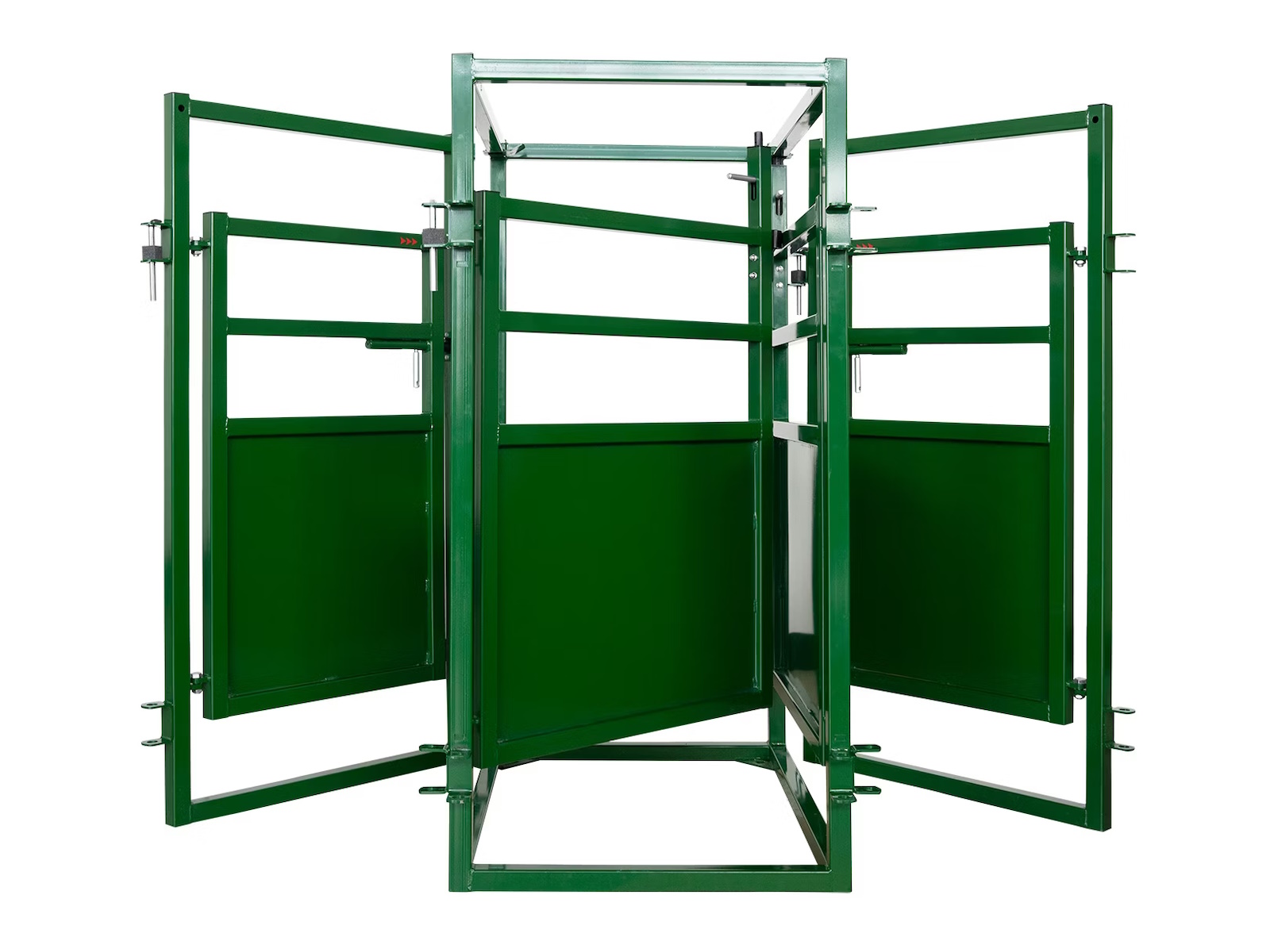

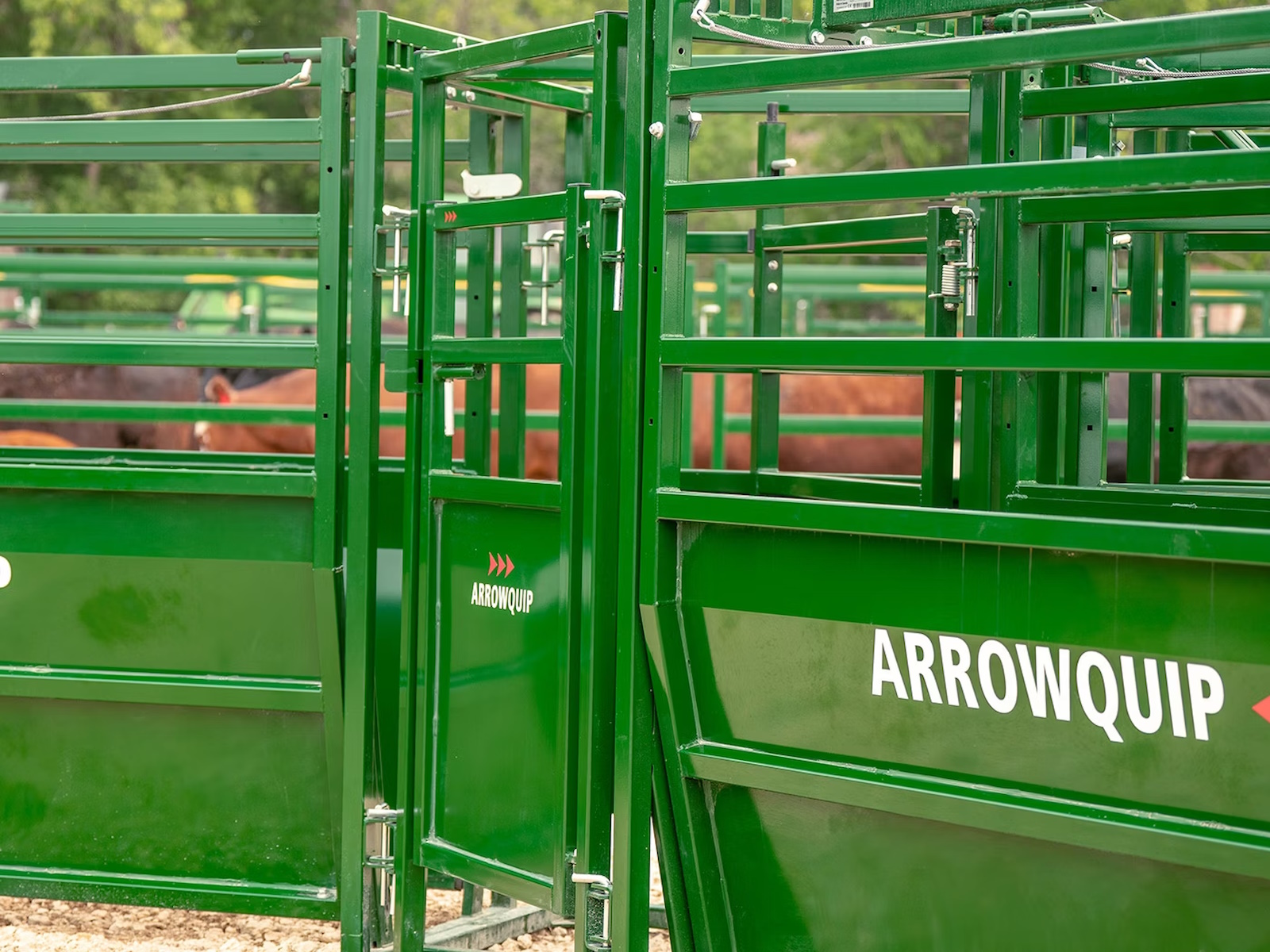

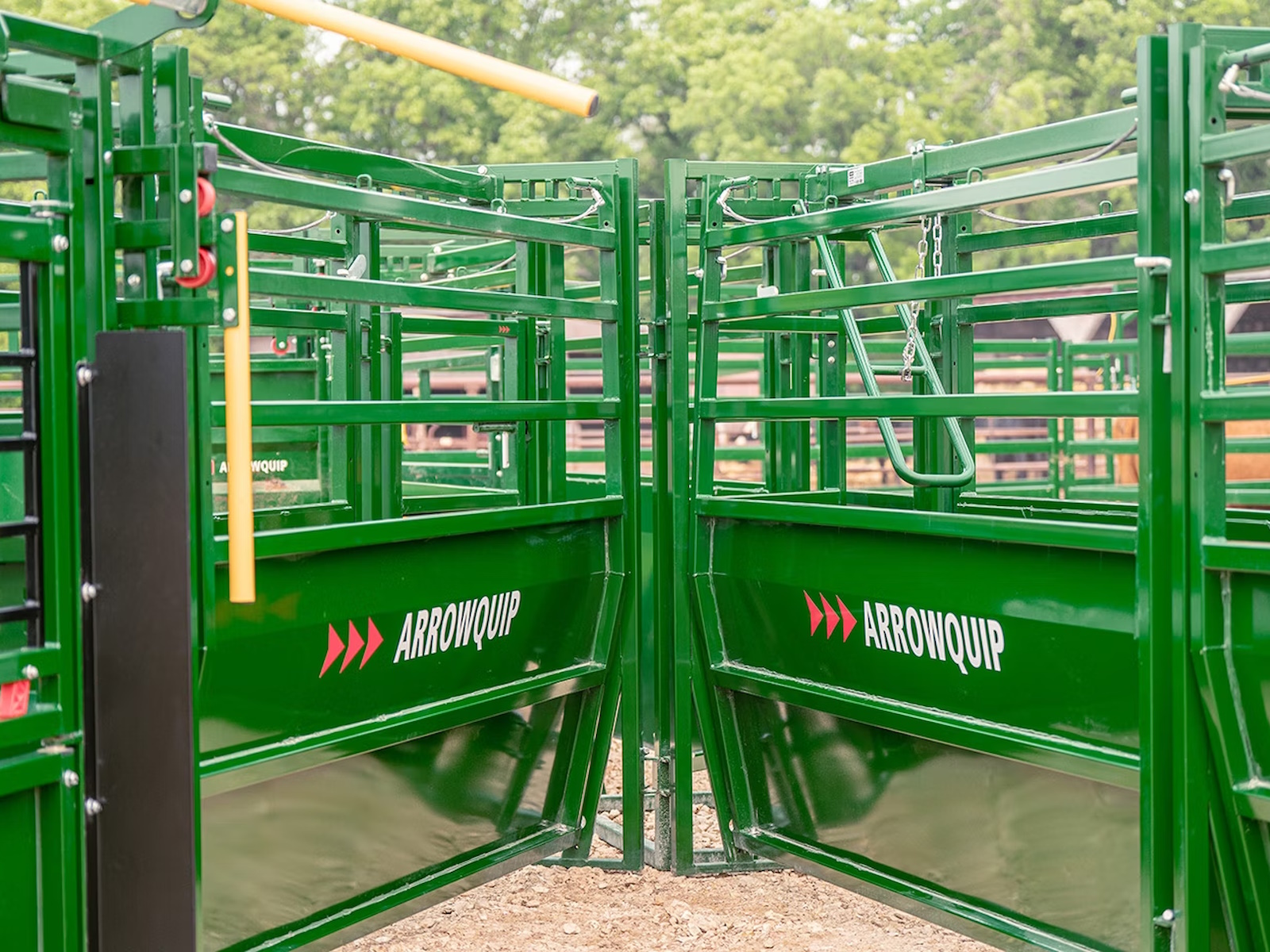

Diversion Gates 

• 42" sheeted sides with bottom sheeting to keep in the legs of cattle 

• 30° angle change for minimal disruption to flow  

• 31.5” wide for better cattle flow  

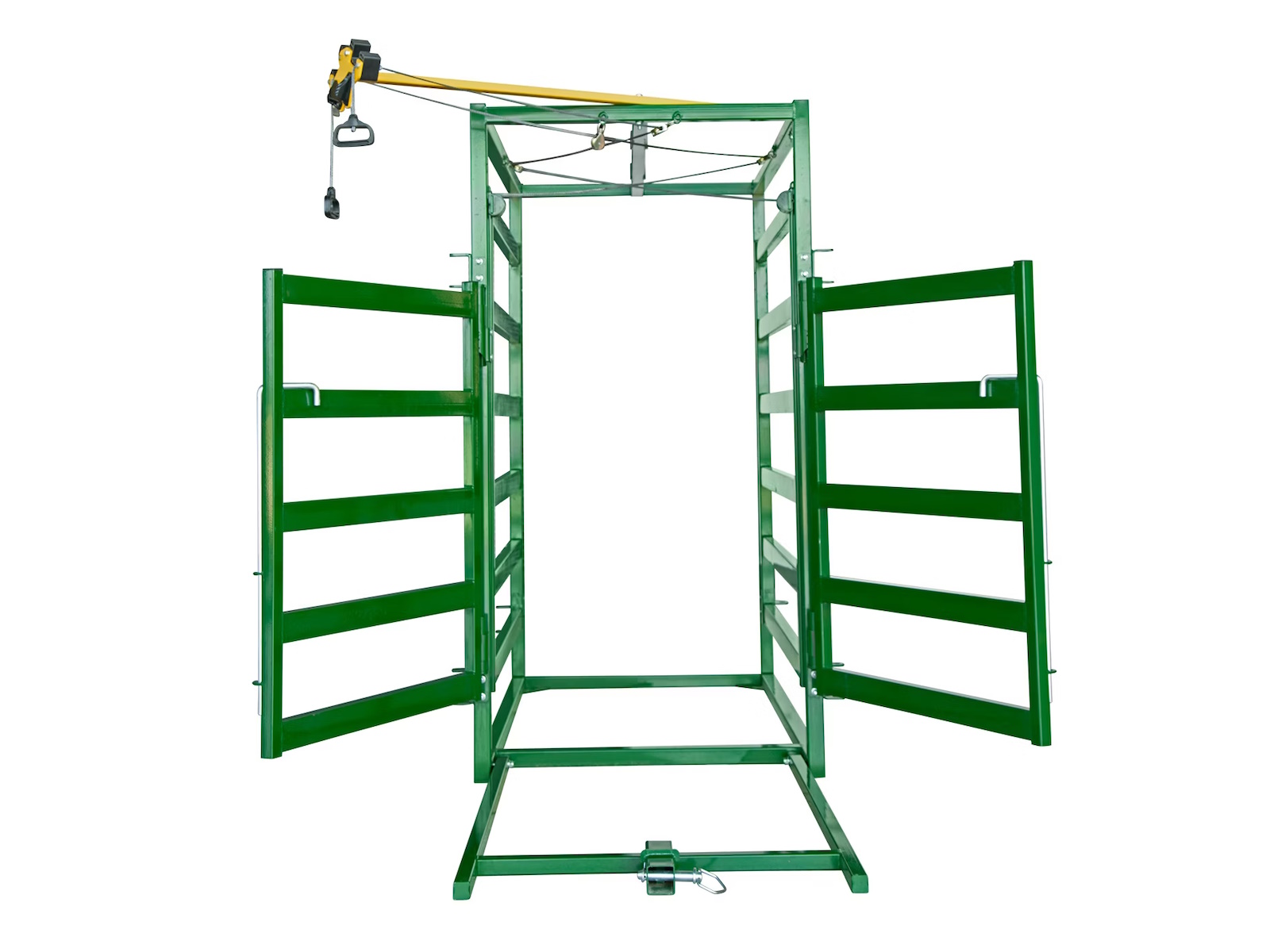

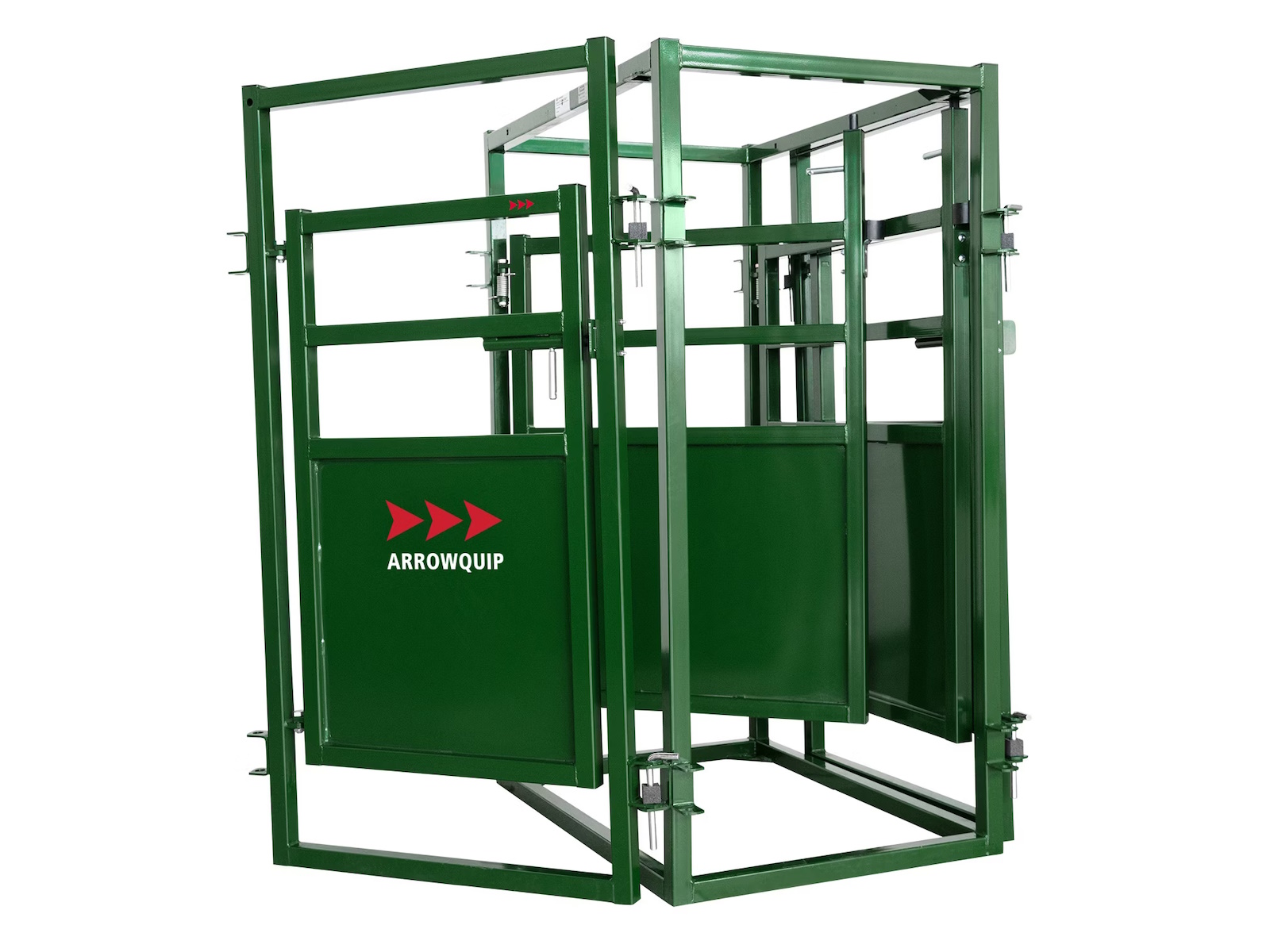

Draft Module 

• 1.5” x 3” x 16-gauge unsheeted rails let in more light 

• 37” minimum opening to improve animal flow 

Designed to Protect Cattle and Handlers

Every detail of the Cattle Sorting Alleys is engineered to reduce injury risk and give operators greater control. Use the Arrow Draft Module or Diversion Gates to pass through your system safely, keeping the process safer for both handler and herd. 

Diversion Gates 

• Spring-loaded doors controlled by slam latches 

• Left or right-handed operation available   

• Can be used to sort or divert in up to three directions 

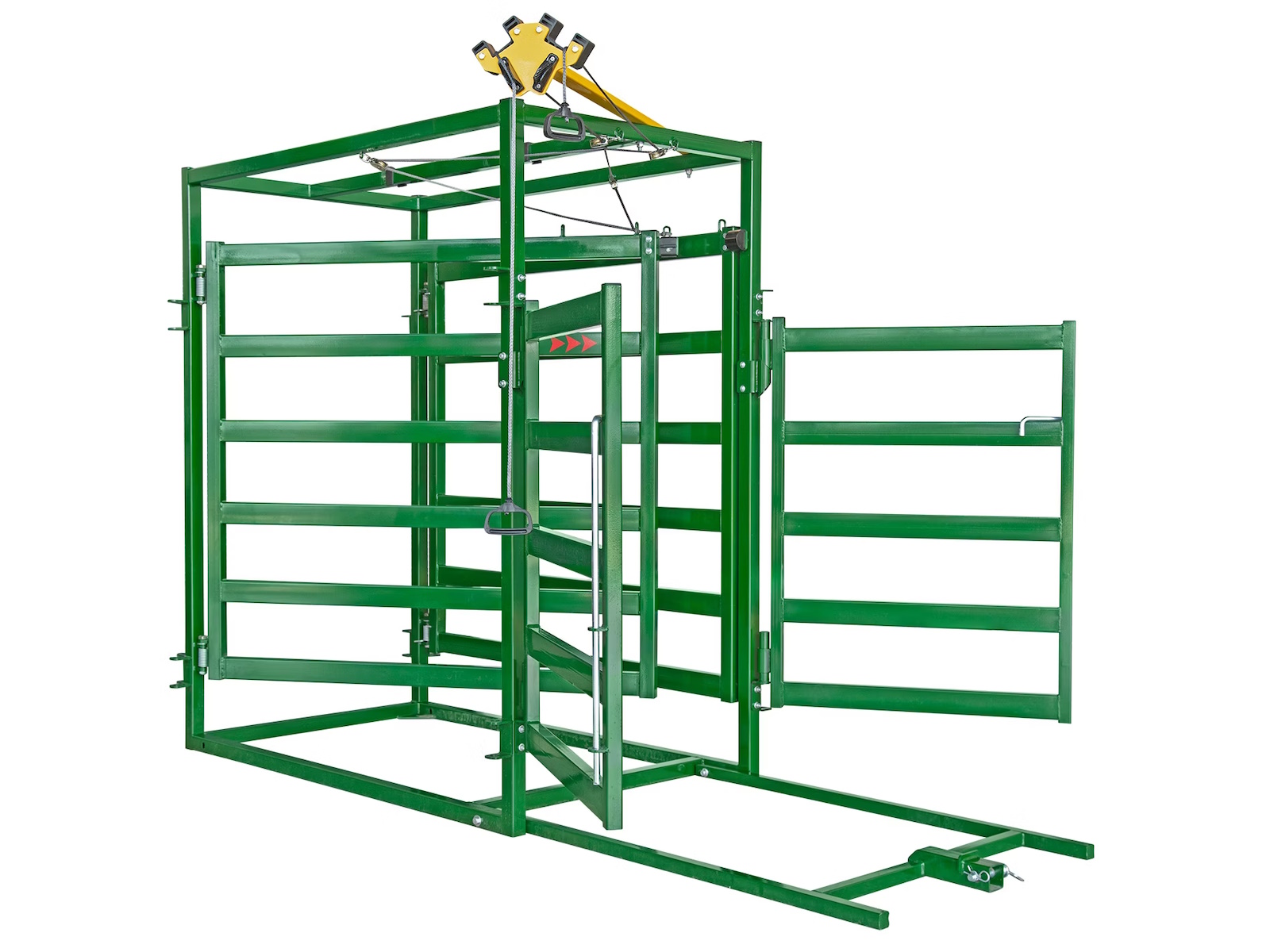

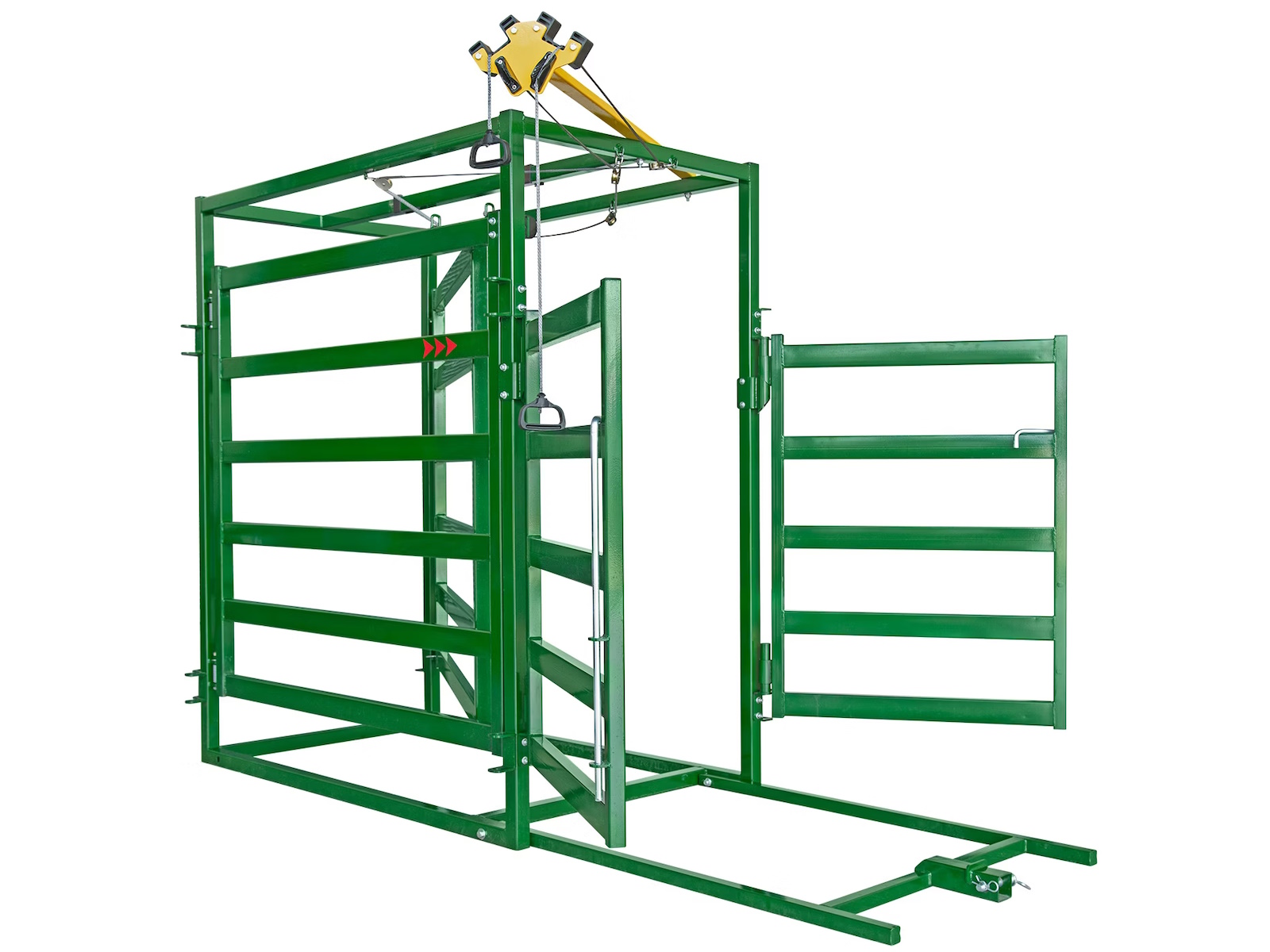

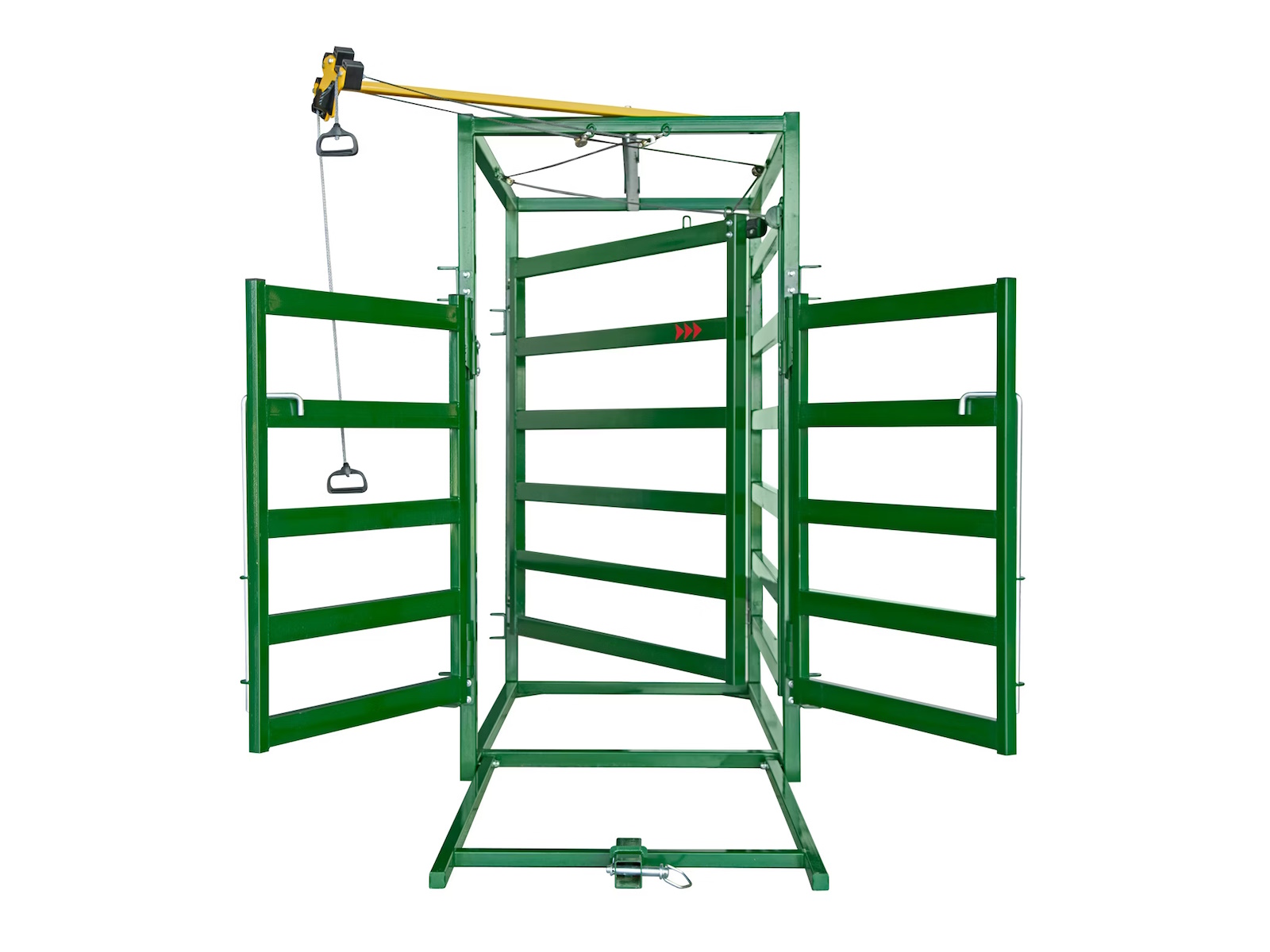

Draft Module 

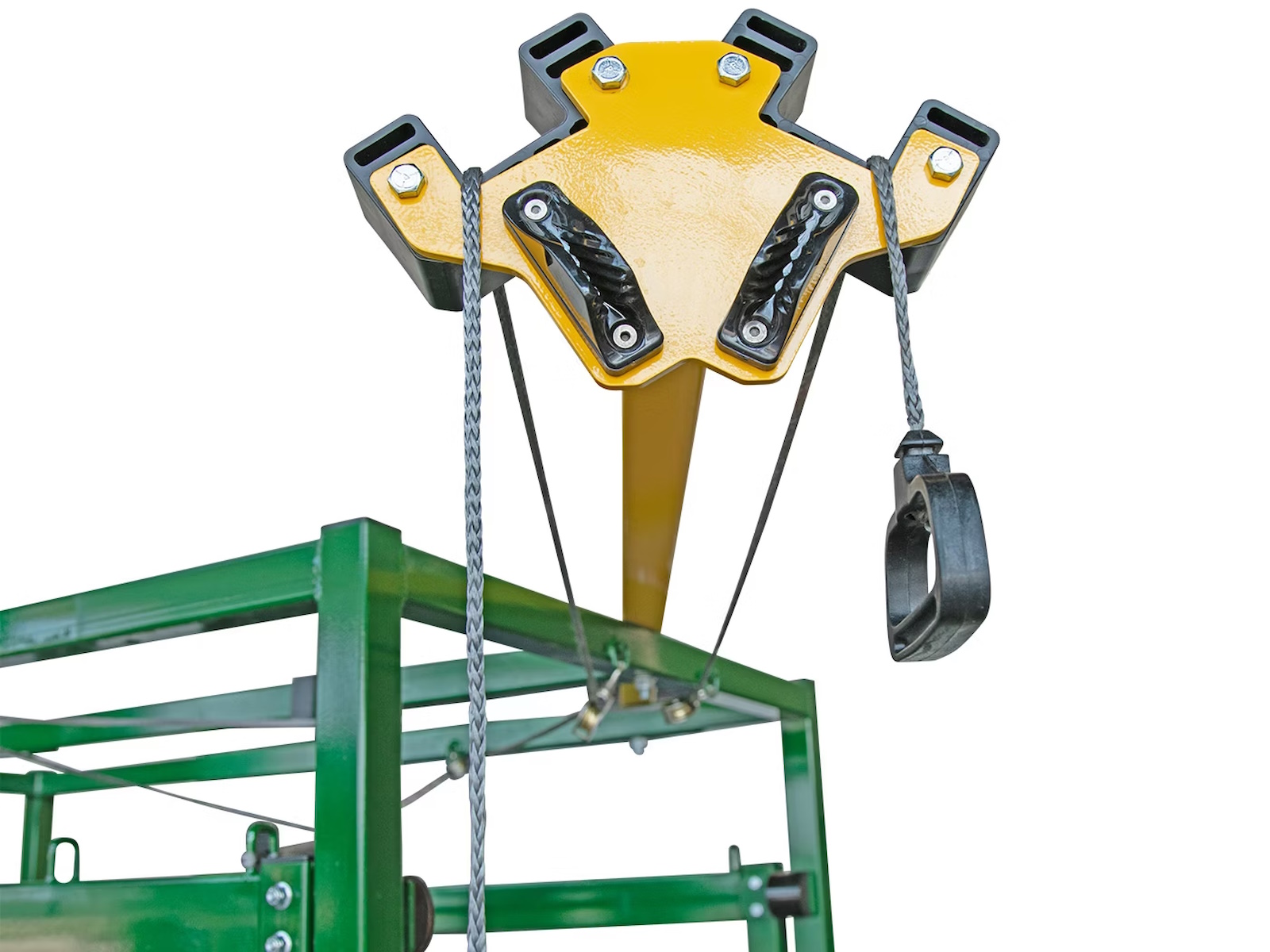

• Intuitive pre-routed rope with yellow handle and locking cleats to easily use and convert to right or left side use 

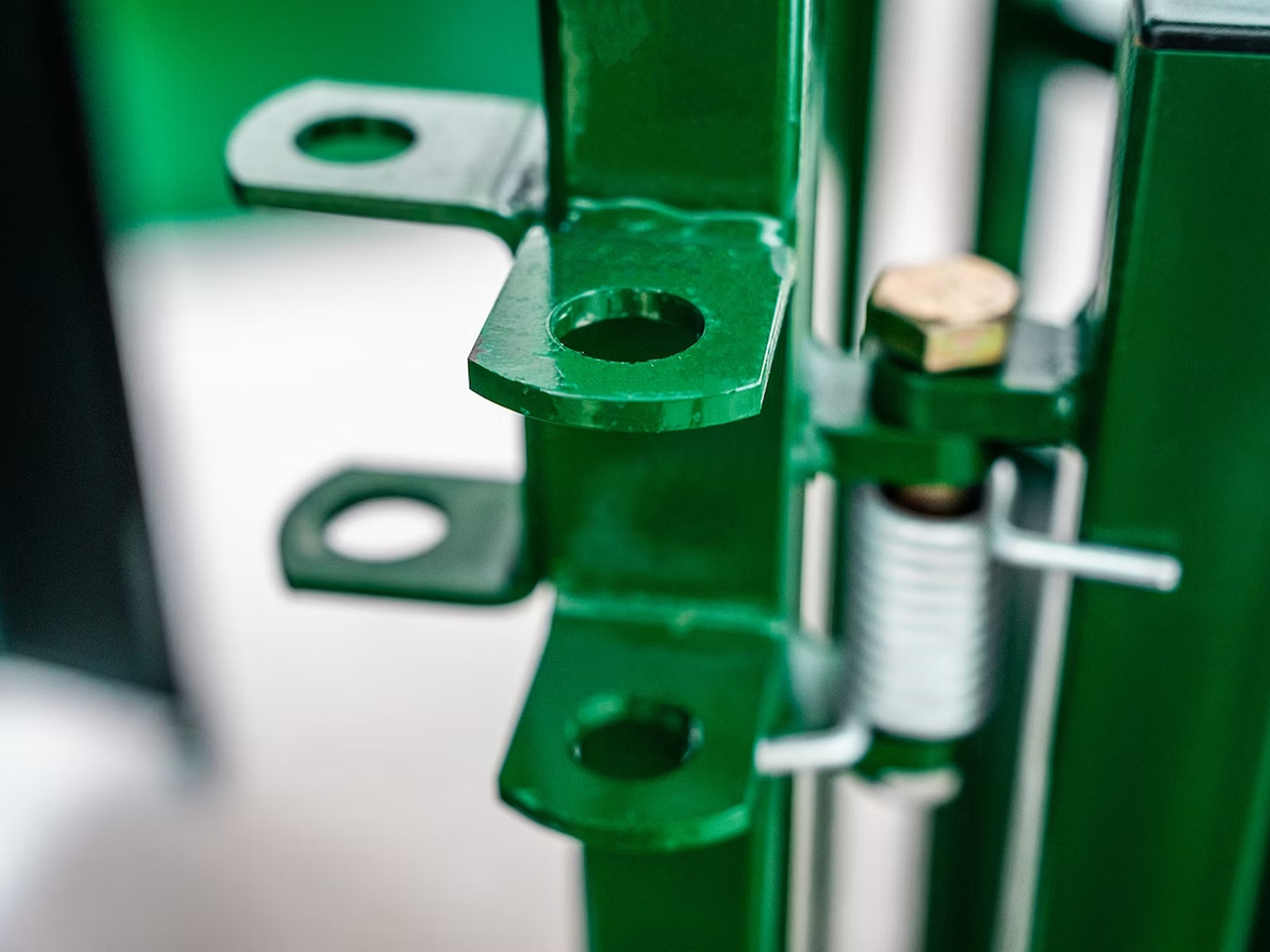

• Self-returning access doors with gravity hinges 

• 5/8” drop pin to keep doors locked in place 

Quiet, Durable, and Seamless Construction

Reduced noise, heavy-duty build and straightforward system connections make the Cattle Sorting Alleys a reliable cornerstone in any cattle handling setup. Built from heavy-duty steel and finished for long-term durability, they’re designed to perform season after season. 

Diversion Gates 

• Easily anchor the Diversion Gates to the ground  

• Strongly built with 2” x 2” x 12-gauge steel frame posts 

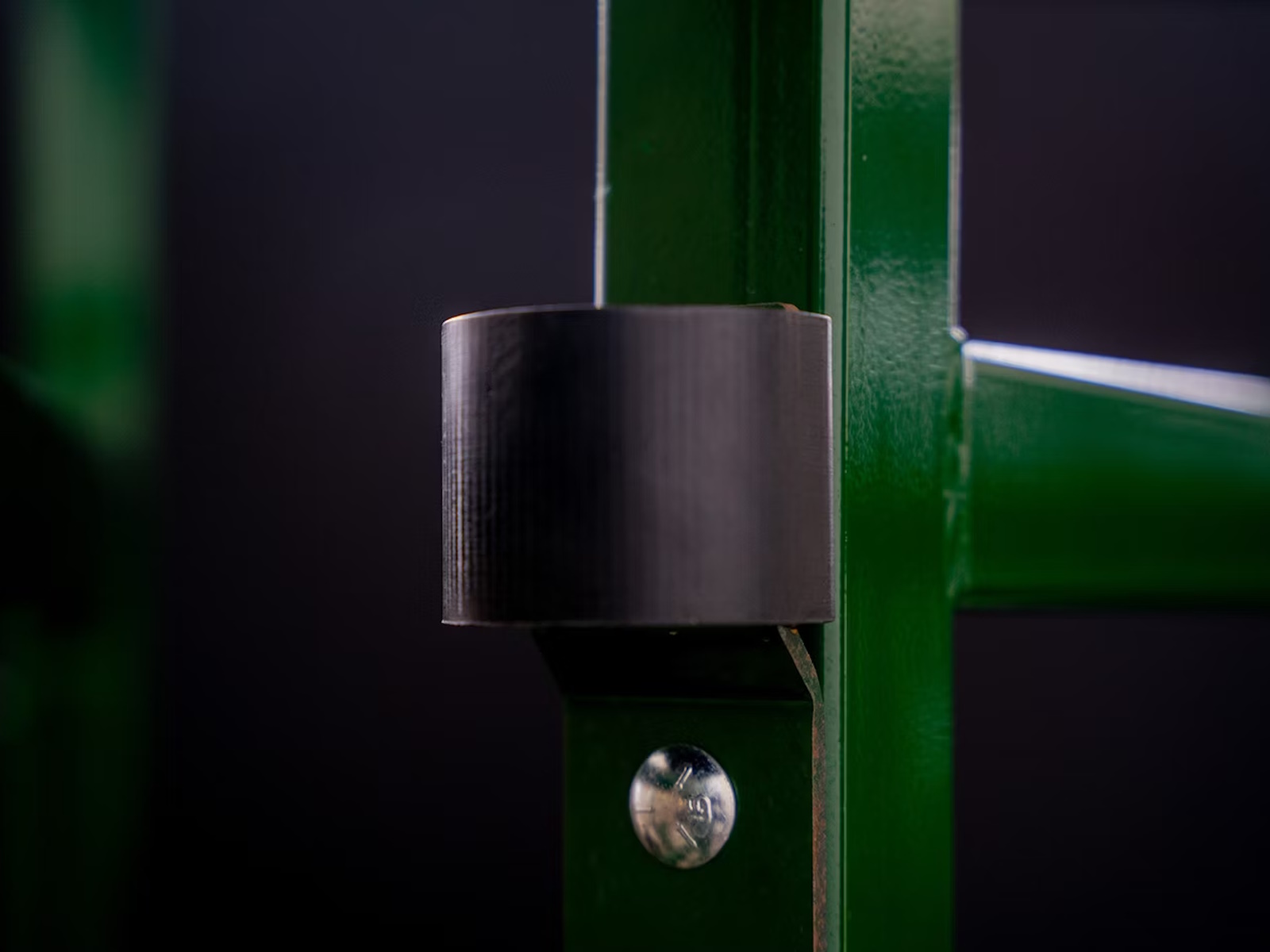

• Poly bumpers where gates meet to reduce noise 

Draft Module 

• 1” anchoring holes on plates in all four corners to easily and securely anchor to ground  

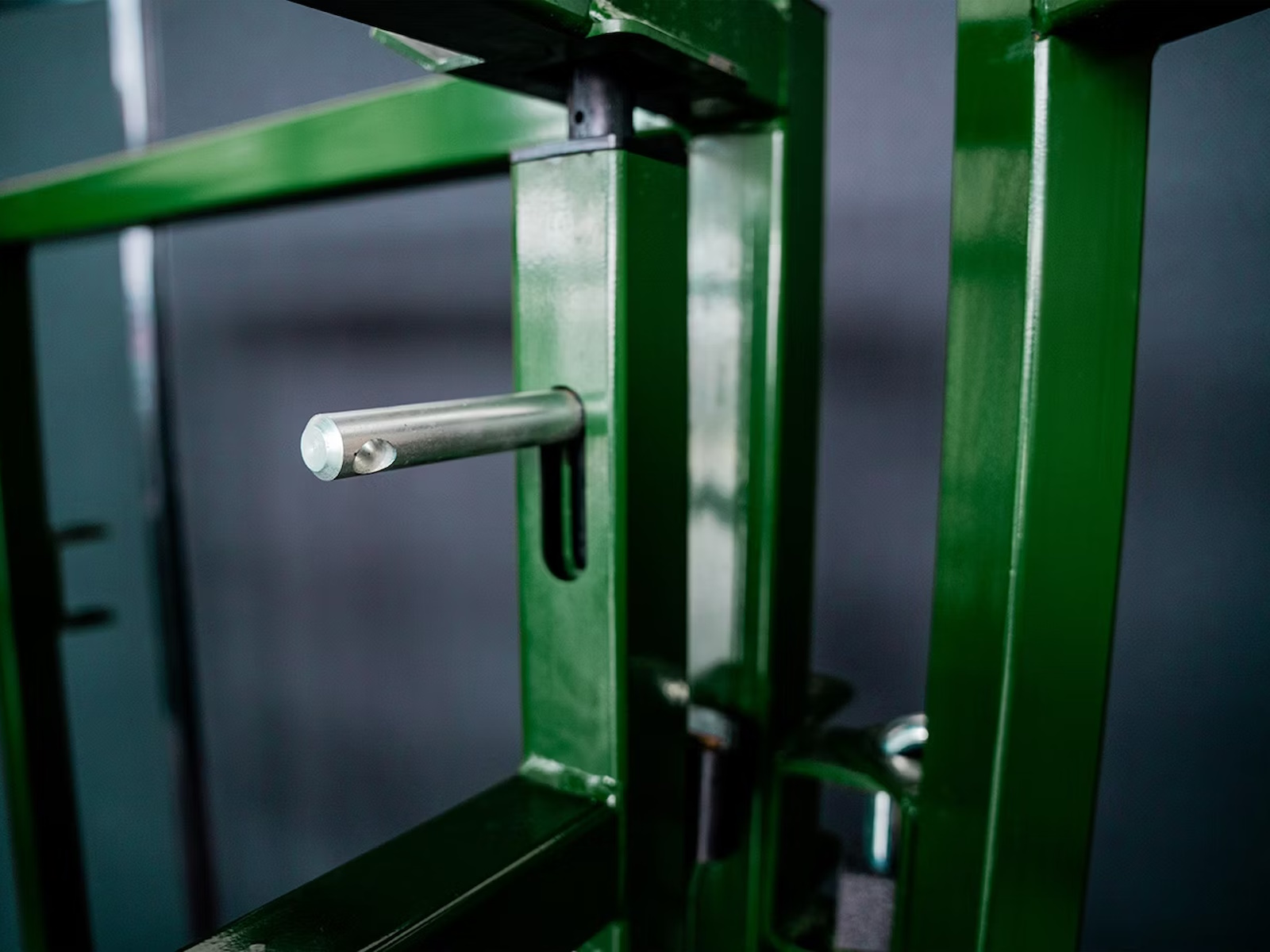

• Quickly connect to chutes or portable hitches with the 1.5” x 1.5” x 12-gauge Hitch Attach pins  

• Durably constructed with 2” x 2” x 12-gauge steel frame posts 

• Rubber bumpers to reduce noise
