2024 Beaver Valley Supply Co WFMKX2-100-36G

Westfield MK2 10″ X 36′ Auger | Standard Hopper | Up To 6,000 BPH

MKX2 100-36

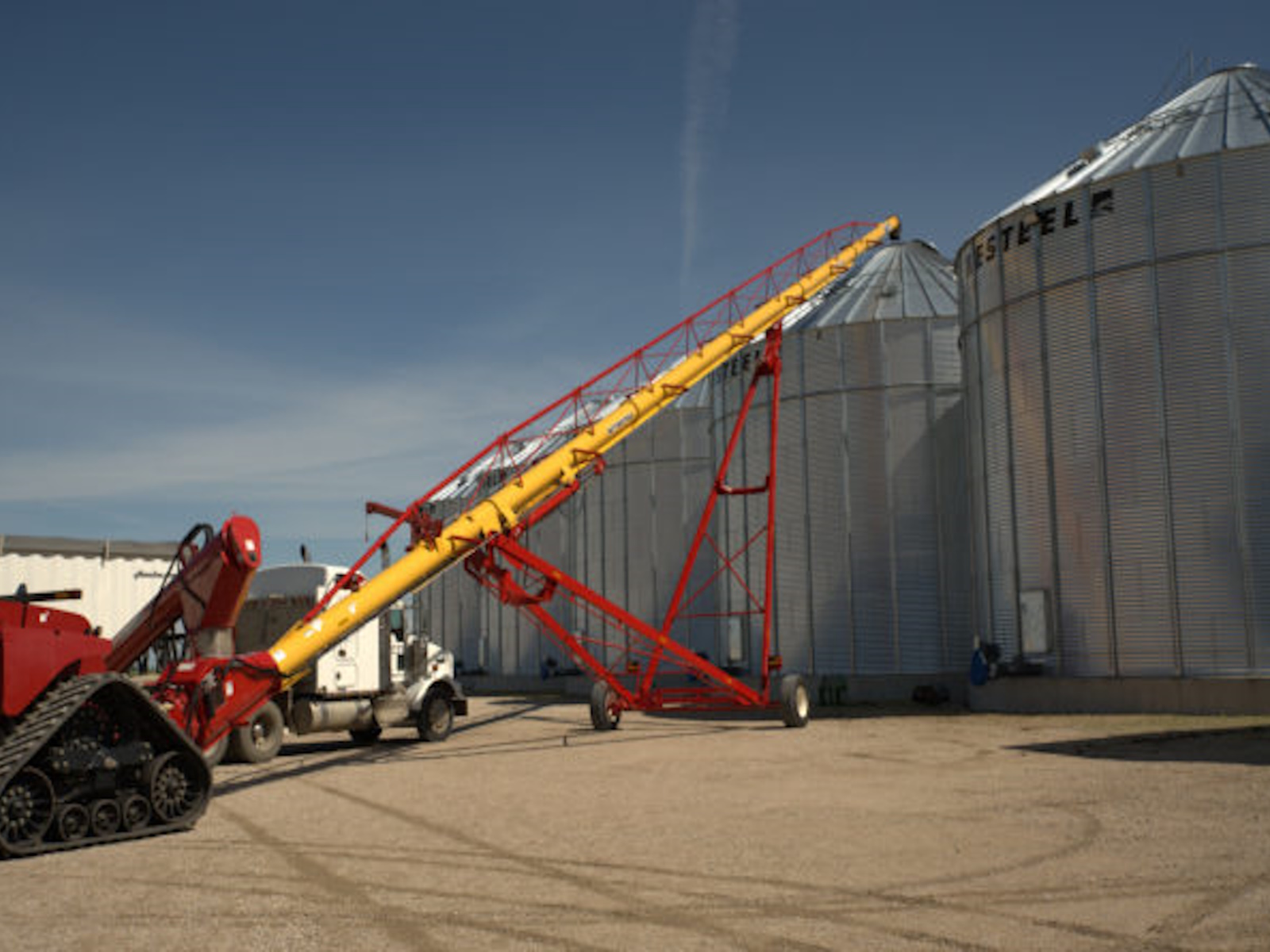

The MKX2 100×36 combines a 36′ main tube and a 9′ swing away to make auger set up a breeze. Just drive the tractor up to the bin, lower and swing the hopper into position and you’re ready to load your truck or trailer. Best of all, the MKX2 100×36 Truck Loader offers the capacity, quality, and safety you’ve come to expect from Westfield.

MKX2 10-36 Features

• Flexible Positioning – Swing tube on left or right side
• Only 40 PTO HP required
• Manual Safety Winch Lift
• Height Raised – 22’7″
• Tubing – 14 gauge welded steel
• Flighting – 7 gauge with 10 gauge “Wear Edge” at grain transfer points
• Flighting Shaft – 2″ x 11 GA tubing
• PTO – 14 series with 5/16″ shear bolt
• HP Required – 40 hp
• Track – High yield 11GA roll formed
• Undercarriage – 3″ x 11GA A frame
• Axle – 2.5″ x 2.5″ x 1/8″ wall sq tubing
• Hubs and wheels – 4 bolt automotive hub, 15″ wheel
• Lift – Manual Safety Winch (Optional Hydraulic) 1/4″ aircraft cable
