2025 Belltec Clean-out Bucket

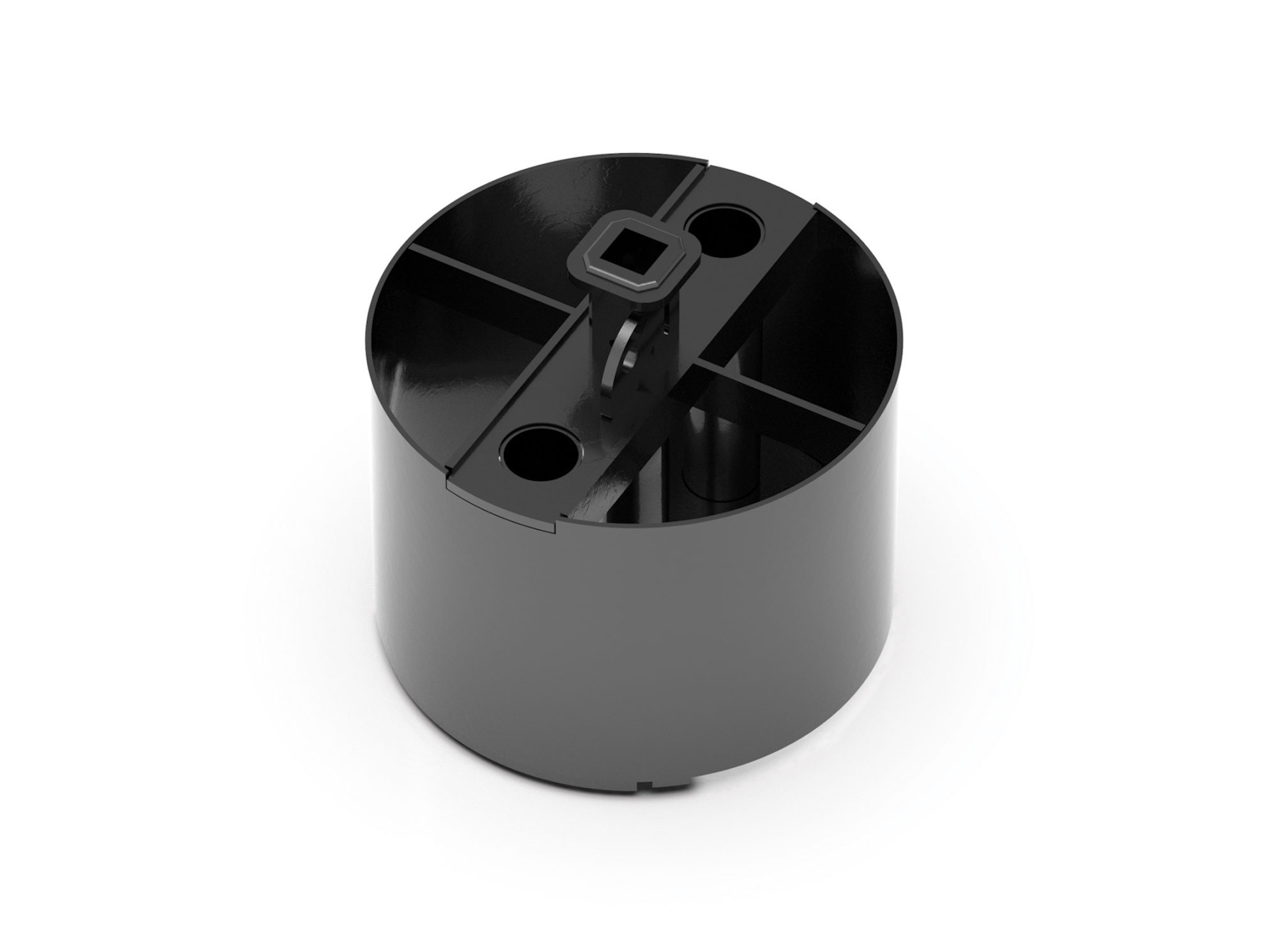

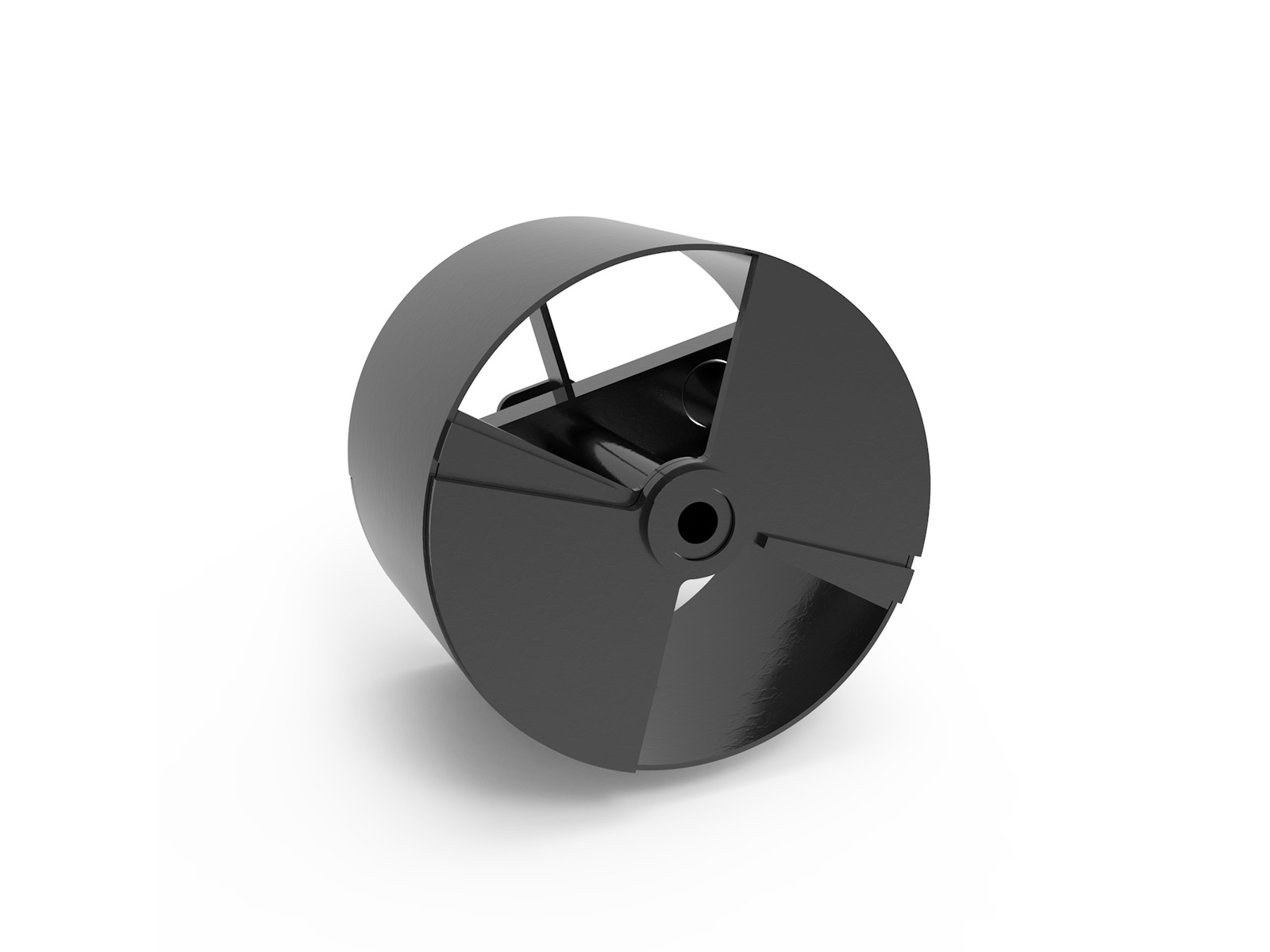

Belltec Spin Bottom Clean-Out Bucket
The spin bottom on this bucket allows you to clean out material from a hole that augers cannot retrieve. Our unique design facilitates ease of use with a simple open and close door that is controlled by the operator. The Belltec Clean-out Bucket is designed to pull heavy fines and water-suspended material from the shaft easily.

Automatic Open/Close
With the tool open, lower the tool to the bottom of the hole making a few revolutions before placing the machine in reverse to close the door.

Pull the tool up to the top of the shaft, lower the tool to the ground, and place the drill in forward to open the door.

Lift the tool off the ground, emptying the contents on the ground or into a container.

Features May Include

• Heavy-duty frame protects tool from severe tangential forces
• Made using customer’s choice of steel
• Kelly box made to customer specifications for a precise fit
• Furnished with customer’s choice of teeth or scraper bar, or made unfurnished
• Made with a wide shaft (6-inch OD, 1-1/4 inch wall) to prolong the life of the door axis
• Heavy-duty doors and stops
• Dual venting-chamber design ensures tool correctly extracts from the hole and prevents the hole from collapsing
• Height specified by customer
• Constructed with 3/4-inch thick wall or thicker upon request
