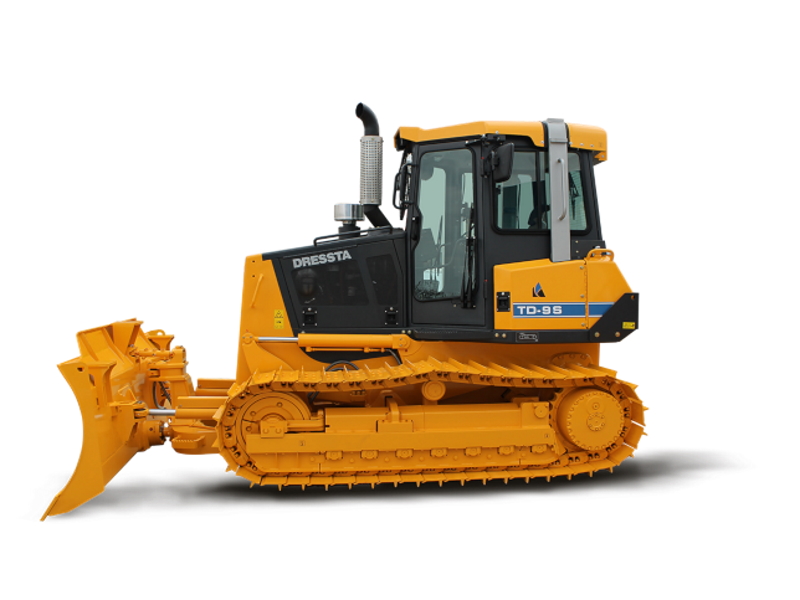

2023 Dressta TD-9 TD-9S LGP

Compact crawler dozers from the Dressta TD-9 Series are adaptable, manoeuvrable and transportable, making them an ideal choice for lightweight dozer operations.
Designed to deliver outstanding productivity, consistent availability and affordable owning and operating costs, the TD-9 Series machines are easy to maintain and are available in various undercarriage versions, starting with 93hp and an operating weight of 9.1t.View the full specifications, options, SFRs and videos of the TD-9 in action below.

OPTIMISED PRODUCTIVITY, EASE OF OPERATION, SUPERIOR BALANCE AND STABILITY ON WET OR SOFT GROUND…..
The new DRESSTA ‘S Series’ hydrostatic compact crawler dozers  – the TD-9S LGP is equipped with Rexroth dual path hydrostatic drive systems that transmit full power to both tracks in all conditions to ensure smooth speed changes, pivot turns and counter rotation – improving on site manoeuvrability even when working on confined jobsites. All these features combine to ensure optimised productivity and ease of operation.

The Cummins 3.8 litre Quantum series engine combines proven electronic controls and is equipped with a DEF after-treatment. With impressive performance and extended service intervals, owning and operating costs are fully optimized.

The Series dozers are Engineered to optimize versatility, controllability and finish grade accuracy & are ease to transport.

Features Include:

• Blades
  The models are equipped with 6-way (PAT) blades designed for ultimate performance in both heavy-duty & final grade applications; TD-9S LGP with a 2.4m³ (LGP) blade capacity. Due to operation proven shape and capacity Straight Blade designs perform well when pushing heavier materials in soft and swampy areas.

• Rippers
  Multi-shank (5/3) parallelogram rippers enable the compact crawler dozers to achieve the ripping performance of much larger models – 500mm for the TD-9S.

• Engine
  The TD-9S LGP is powered by a diesel engine that delivers outstanding power & torque;

  Cummins QSF 3.8 litre Tier 4 Final/EU Stage IV Diesel Engine
  Direct injection, in-line, 4 cylinder, 4 stroke, turbocharged & Charge Air Cooled (CAC) engine developing 87 kW (117hp) at rated engine speed of 2200rpm.

• HYDRAULICS
  A proven design tandem pump system & high capacity hydraulic reservoir for improved cooling. Hose & tube routings are accessible and yet well protected to prevent accidental damage. Trimble ready option is available on factory build orders.

• CAB - OPERATOR STATION & CONTROLS
  The TD-9S LGP has been designed to ensure the operator can maximize productivity. For optimal visibility, enlarged side door windows and a sloped engine hood allows for a better view of the blade front and corners. Tinted glazing reduces glare, and the machines feature a sun visor, and both an inside rear view mirror and external side mirrors to provide all round visibility of the machine. An all new cab is designed to provide 30% more space, and FOPS and 2-post ROPS ensure maximum safety.

  Numerous features within the dozers mean the operator is able to perform efficiently and effectively. A new high resolution 16” LCD display screen provides real-time system values for temperatures, pressures and forward/reverse direction shift & ground-speed ranges.

  Two ergonomic joysticks ensure smooth controllability: a left-hand joystick with control buttons and switches for steering, and a right-hand joystick for mounted equipment. An eco-mode feature, enhances fuel efficiency without sacrificing productivity. S-Series dozers are available with integrated technology options such as Trimble Ready base and full Trimble 3D control systems.

  All these features combine to make the hydrostatic TD-9S LGP compact crawler dozers the optimal choice for a wide range of end users and applications. S-Series dozers are engineered to optimize versatility, controllability, and finish grade accuracy.


  ROBUST FRAME AND UNDERCARIAGE
  Undercarriages feature a standard lubricated track system (LTS) and split link track chains to reduce installation and removal times. All models feature pivot shaft installed suspension for final drive protection and hydraulic track adjusters for extending track chain life.
