2026 JLG X600AJ
Get in Touch
Description

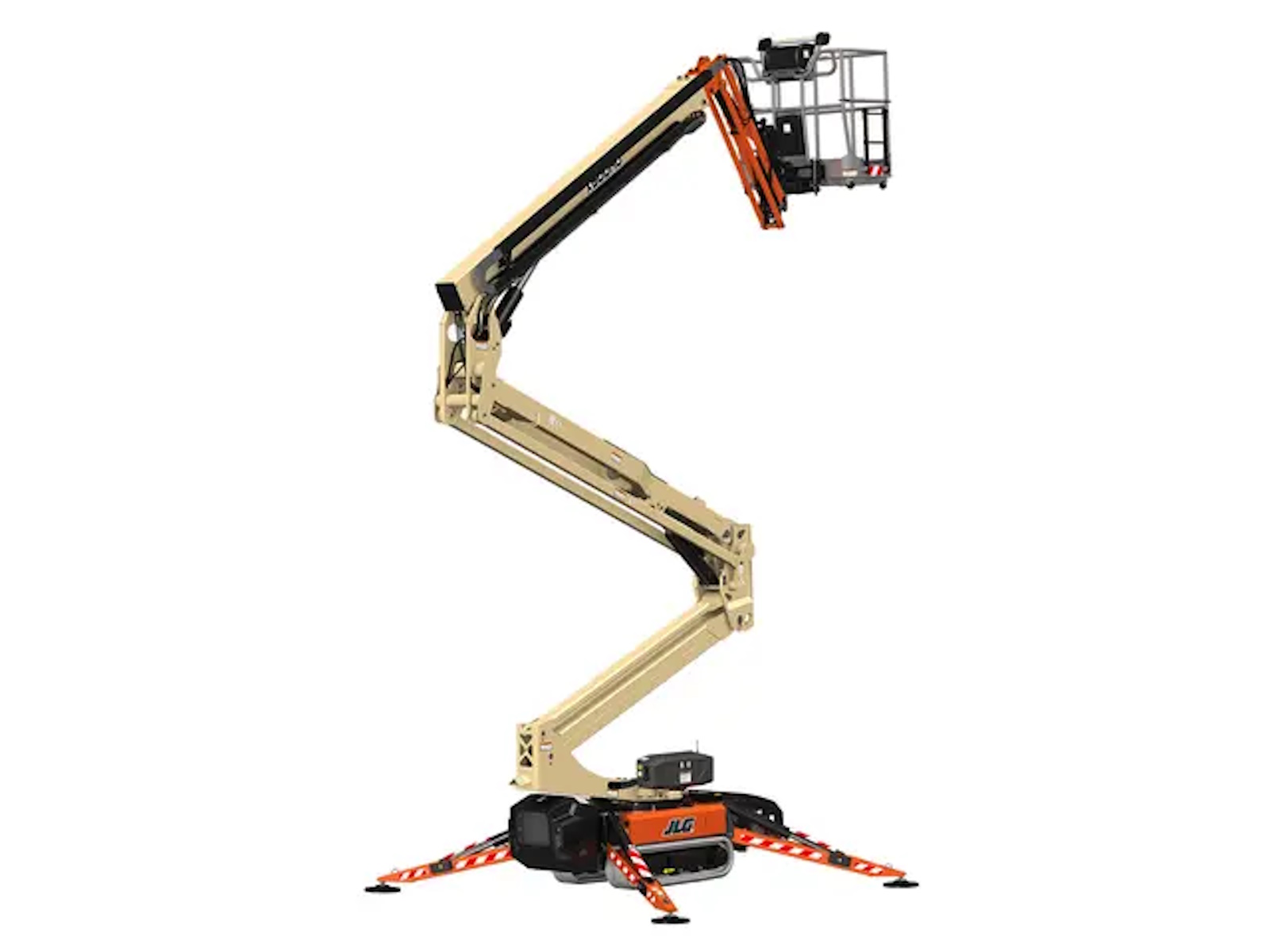

2026 JLG X600AJ
Whether you're working indoors or outside, the Compact Crawler Boom has your job covered. With enhanced maneuverability and better access, you've got the ability to go more places thanks to its low profile, non-marking tracks, compact dimensions and articulating jib for greater reach.
Product Details
Reach more places with the JLG X600AJ compact crawler boom lift.
It can travel through a single doorway and has a 500-lb. unrestricted platform capacity. This machine features drive speed control and auto levels, for smooth operation on a variety of terrains and uneven surfaces. The recent model refresh of the JLG X600AJ also features a bi-energy option.
Features May Include:
- Features a 500-lb unrestricted platform capacity with SkyGuard SkyLine™ standard.
- Environmentally friendly with standard AC powered boom functions with diesel, optional bi-energy or optional lithium-ion electrical system for emission-free operation.
- Access tight spaces and climb slopes with ease thanks to a narrow chassis and tracked wheel carriage.
- Transport with ease by a forklift or crane with forklift pockets and lifting points, and fits through standard doorway.
STANDARD FEATURES
- 110V-AC receptacle at Platform
- Air/Water Line to Platform
- Caster Platform Wheels
- Color Remote and Ground Panel Provides On-board Diagnostics
- Control Box with New Color Display
- Electric Controls With One-Touch Outrigger Deployment, Stowage & Leveling
- Flashing Amber Beacon
- Fork Pockets and Lifting Points
- Large Teflon® Outrigger Pads
- Load Sensing System
- Non-Marking Tracks
- On Board Battery Heaters
- Patented Quick Disconnect Two-Person Platform with Dual Side Entry
- Powered Track Widening
- SkyGuard SkyLine™
- Synthetic Biodegradeable Hydraulic Oil
ACCESSORIES & OPTIONS
- Black Deep-Tread Tracks
- Platform, Single-Person
- 31 x 31-in
- Radio Remote Control
Info
Industry
Agriculture
Make
JLG
Model
X600AJ
Trim
Base
Year
2026
MSRP
N/A
Category
Boom Lift
Subcategory
Articulating
Specs
Height
Platform: 59 ft 3 in (18.05 m)
Load Capacity
Platform: 500 lb (227 kg)
Drivetrain
Speed: 1.6 mph (2.5 km/h)
Weight
Diesel: 6,548 lb (2,970 kg) | Lithium: 6,614 lb (3,000 kg) | Bi-Energy: 6,834 lb (3,100 kg)
Engine
Kubota Z602
Power/Horsepower
19.5 HP (14.5 kW)
Fuel Capacity
Tank: 4 gal (15.5 L) | Hydraulic: 10.56 gal (40 L)
Battery
Lithium Ion Battery: 64V / 120 Ah
Width
Platform: 30.4 in (.77 m) | Machine with Platform: 55 in (1.4 m) | Machine without Platform Tracks Retracted: 31.3 in (.8 m) | Machine without Platform Tracks Extended: 43.1 in (1.1 m) | Outrigger Footprint: 9 ft 7 in (2.9 m)
Length
Platform: 55 in (1.4 m) | Machine: 16 ft 7 in (5.1 m) | Machine Without Platform: 14 ft 5 in (4.4 m) | Track: 4 ft 10 in (1.47 m) | Outrigger Footprint: 9 ft 7 in (2.9 m)
Fuel Type
Diesel
