2025 Jaylor 5275 Trailer 12"




Get in Touch
Description

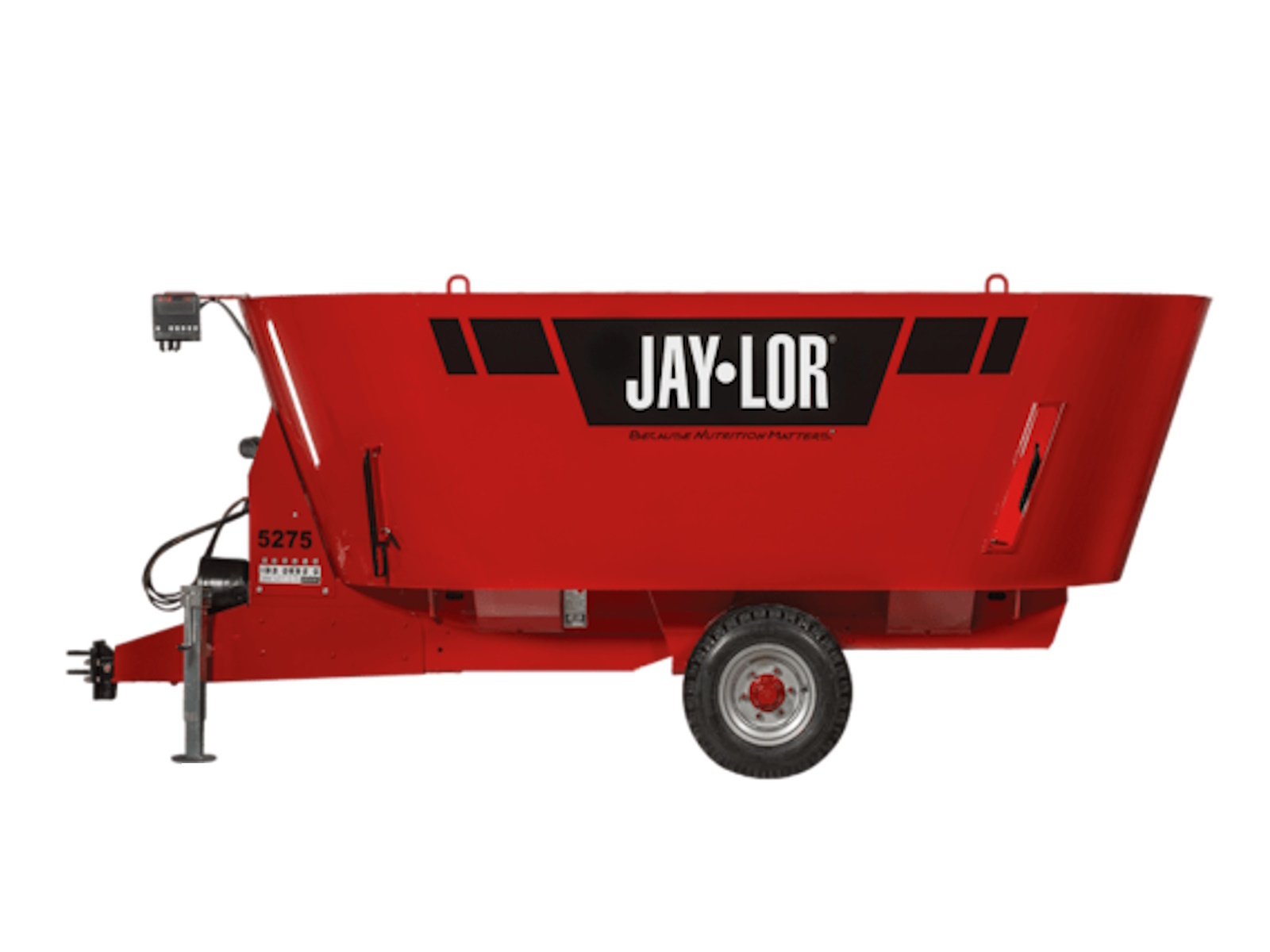

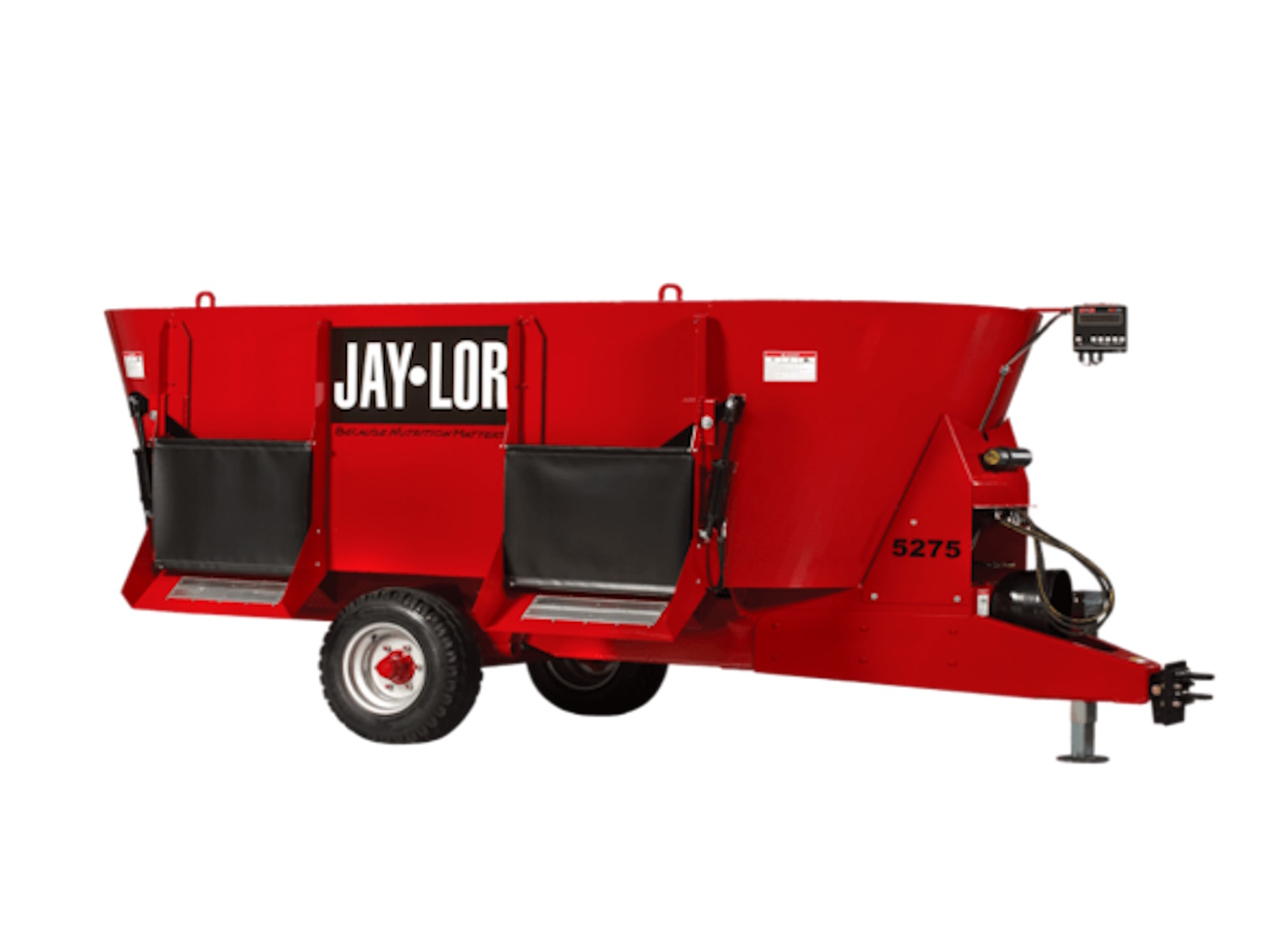

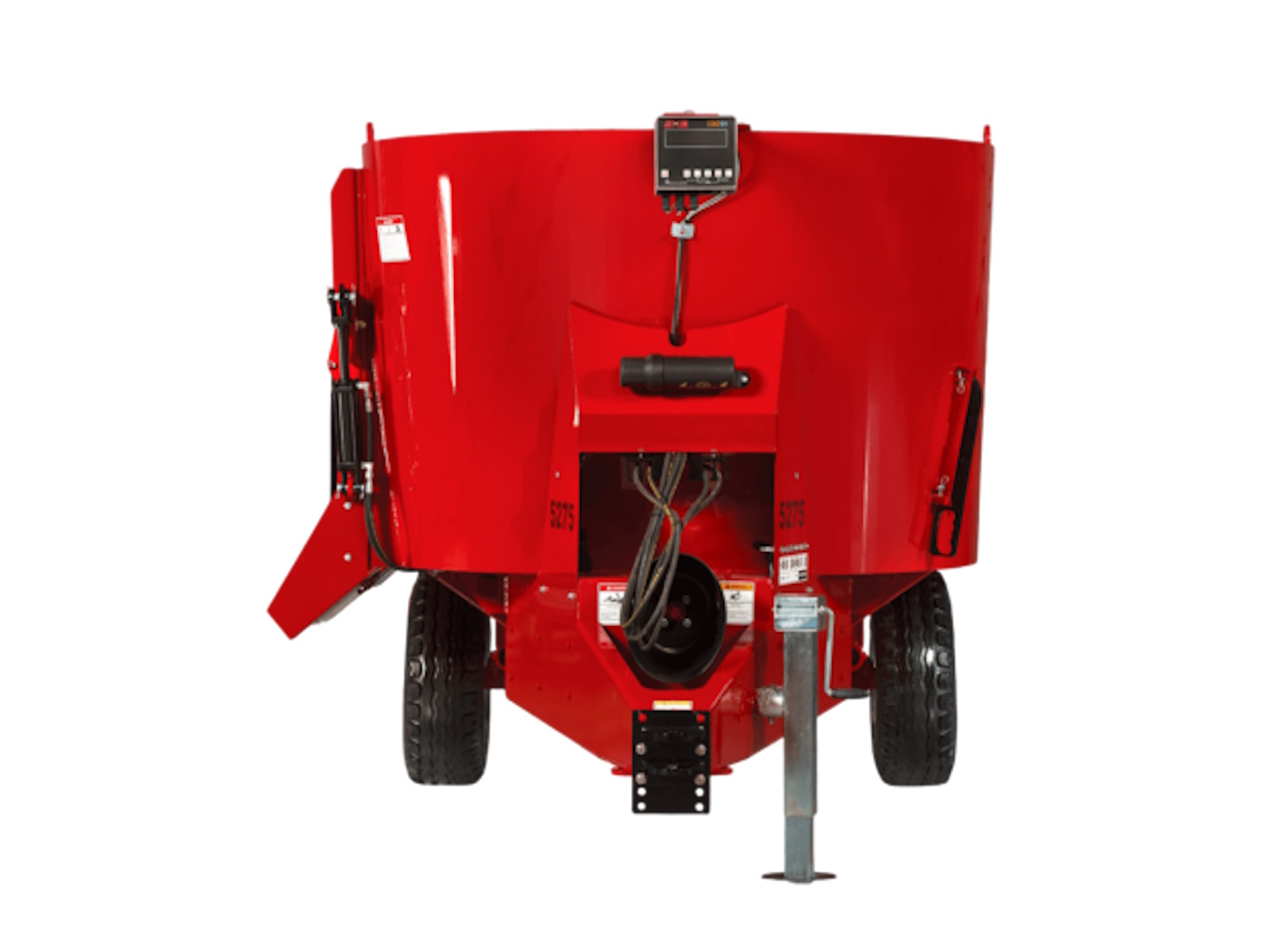

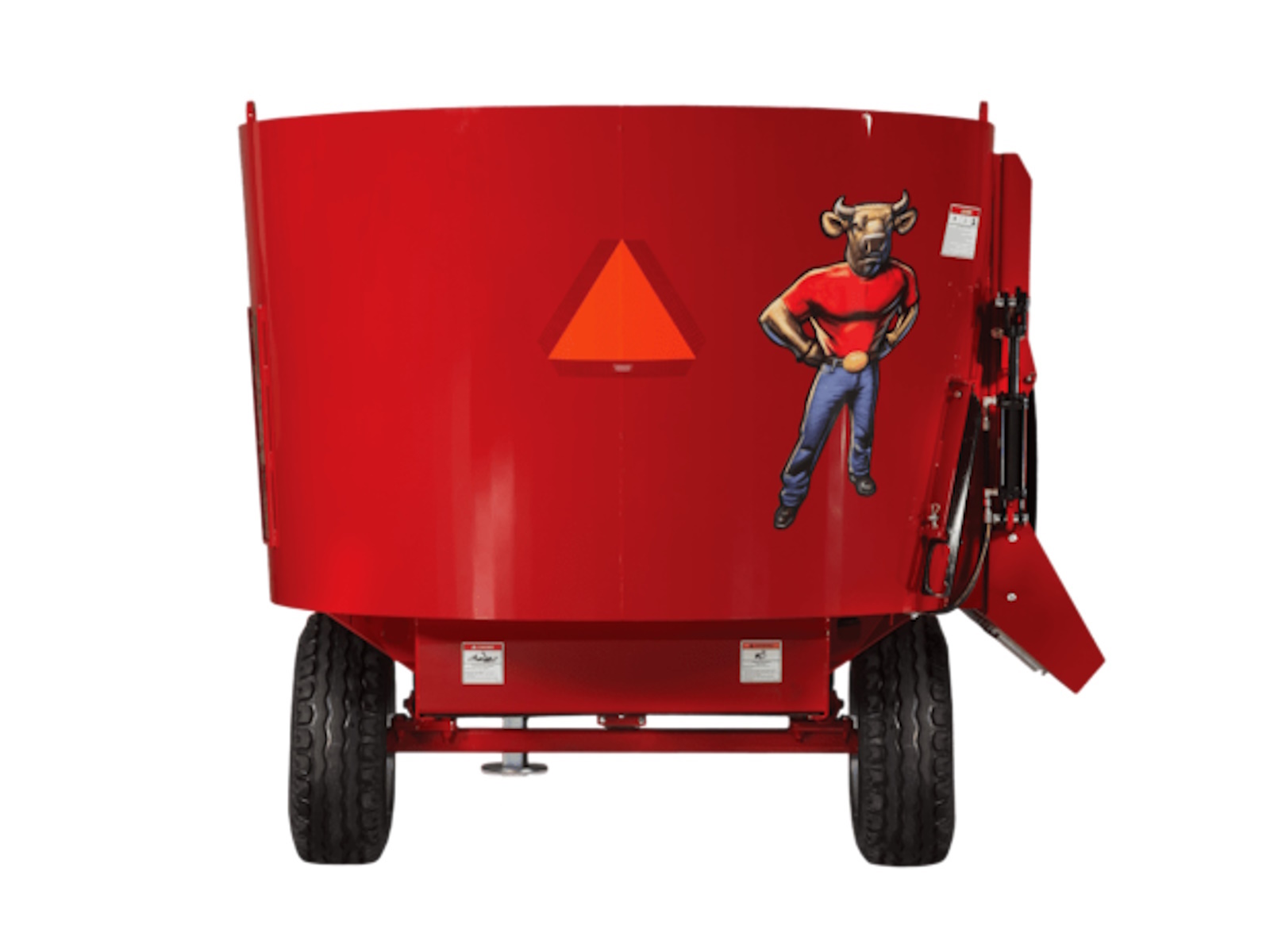

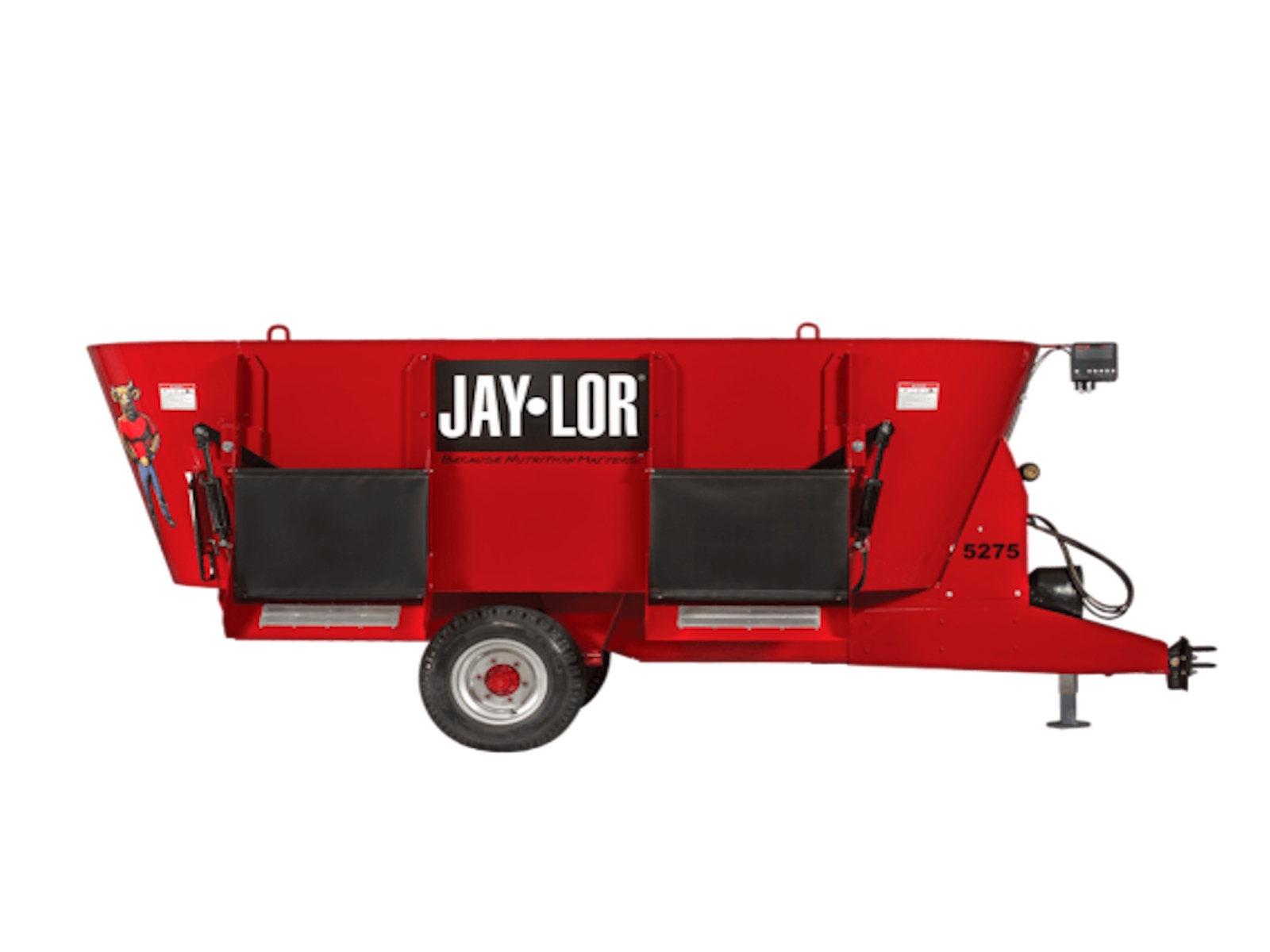

2025 Jaylor 5275 Trailer 12"
A mini TMR mixer that can process 4×5 bales—perfect for small operations or specialty groups like weaned calves and dry cows. With a 45 HP requirement, the Jaylor 5275 Trailer Mini TMR Mixer has the lowest horsepower requirement of any vertical TMR mixer in its class. This efficiency advantage comes from the unique slide plate design on our patented auger, allowing for smooth, energy-efficient mixing without compromising performance.
Features May Include:
- Sloped top Square-Cut Auger
- Structurally Reinforced Frame
- 3-Point Weigh System with DG500 Indicator
- Planetary Gearbox
- Mix Viewing Window
- Central Grease Bank
- Tungsten Carbide Coated Knives
- Heavy Duty Adjustable Cast Hitch
- Dual Restrictor Blades
- Ultra-Low Loading Height
Info
Industry
Agriculture
Make
Jaylor
Model
5275 Trailer
Trim
12"
Year
2025
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Feed / Mixer Wagon
Specs
Load Capacity
12" Extension: 375ft³
Power/Horsepower
Minimum: 45 HP
Height
83 in | Max Discharge: 33in
Weight
6800 lbs
PTO Type
Speed: 540 RPM
Width
Drum: 76.5 in | Door Opening: 25in
Length
212 in
Fuel System
Scale: DG500
Tires
10.0/75 – 15.3 18 PLY (2)
Wheels
Single Straight Axle
Notes
Auger Speed: 41 RPM | Number Of Knives: 16 | Auger Flighting Thickness: 1/2in | Max Discharge Height: 33 in | Floor Thickness: 1/2 in | Drum Wall Thickness: 1/4 in
