2026 Kubota M5N-091HDC12 HDC12
M Narrow Series

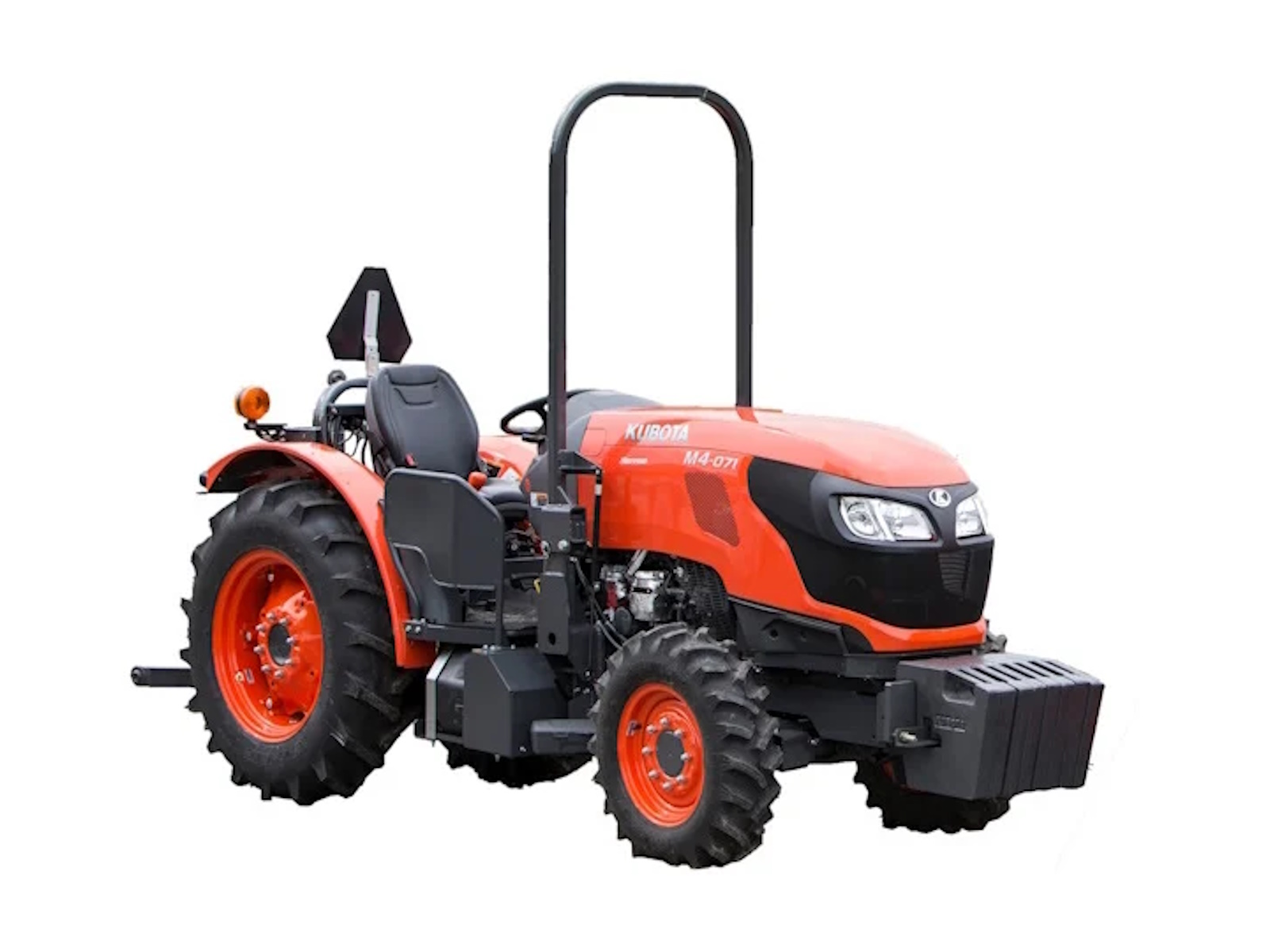

M-Series specialty tractor features a Kubota-designed and Kubota-built V-3800-Tier IV engine, performance-matched to bring Kubota durability to the strenuous demands of specialty agricultural applications. Creeper options are available to add even more precision to specialty tasks, with a 36-speed creeper available on the M5N models and an 18-speed creeper option on the M4N-071 narrow.
Features May Include:
Hood Design
- The new hood is more than 5" lower than the previous model (M5N-091/111), providing enhanced visibility, without changing the wheelbase.
Transmission
- High productivity requires versatility, such as traveling at low or sustained speeds. This tractor's transmission has 12F x 12R speed, with six speeds in two ranges. An optional High/Low allows for a 24F x 24R.
Info
Industry
Agriculture
Make
Kubota
Model
M5N-091HDC12
Trim
HDC12
Year
2026
MSRP
N/A
Category
Tractor
Subcategory
4WD
Specs
Fuel Type
Diesel
Cylinders
4
Steering
Hydraulic Power Steering | Tilt Steering: Standard
Length
Overall: 155.5 in
Wheelbase
83.9 in
Brakes
Hydraulic wet disc
Alternator
80 Amp
Notes
Aspiration: Turbocharged w/Intercooler | No. of Speeds: F12 / R12 | Main Gear Shift: 6 Speeds Synchronized | Range Gear Shift: High / Low Range Gear Shift | Shuttle Shift: Electro Hydraulic Shuttle | Traveling Speed: 22.2 mph | Four Wheel Brake: Std | System: Open Center | Pump Capacity: 24.9 gpm | 3-point Hitch: Telescopic Stabilizers | Control System: Position, Draft Top Link Sensing | Category: II | Lift capacity at 24 in.behind lift point OECD: 3307 lbs | No. of Remote Valves: 2 | 4WD Drive System: Bevel Gear Type | Hood Type: Full open, Slanted, Steel | Pedal Type: Hanging | Panel Type: Electronic | RPM Memory: Standard | Crop Clearance: 14.6 in
Fuel Capacity
20.1 gal
Displacement
230 cu. in.
RPM
Rated Speed: 2600 rpm | 540 rpm / 540E rpm
Width
53.9 in
Turning Radius
12.5 ft
Seats
Wth Reclining, Arm Rest
Engine Type
V3800-TIEF4 4 cylinders in-line, Common Rail System, Direct Injection, DPF, DOC, SCR
Power/Horsepower
Engine: 87.5 hp | PTO HP at Rated rpm: 78 hp
Height
90.2 in
Weight
5622 lbs
Tires
Front Size: 8.0 - 16 | Rear Size: 12.4 - 24
PTO Type
Live-independent PTO, electro-hydraulic clutch with brake
