    Description

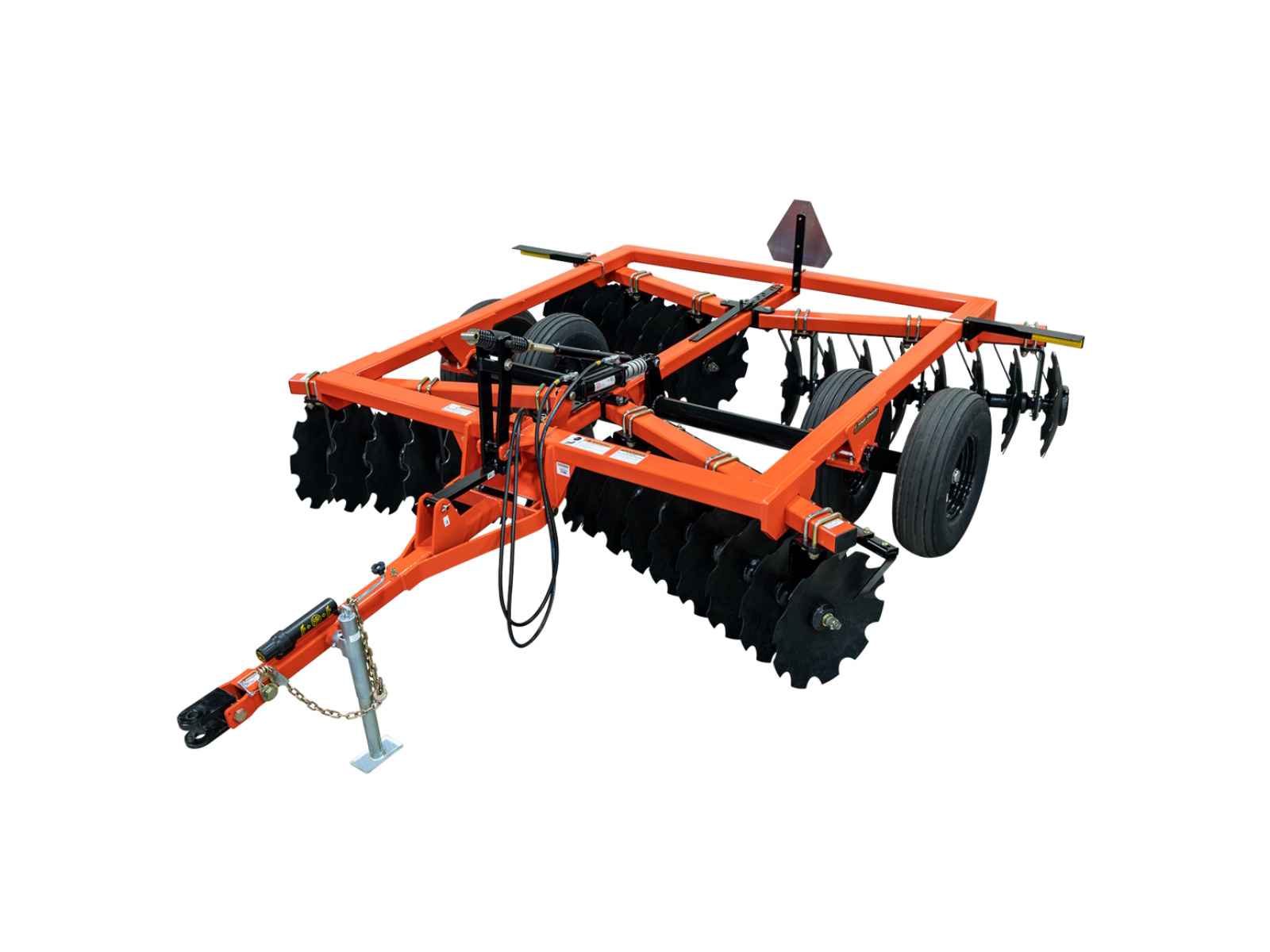

    2026 Land Pride DH3512

    Land Pride's DH35 Series pull-type Disc Harrows are perfectly matched for seed bed preparation, soil pulverization, and tillage on smaller farms, ranches, construction sites, race tracks, rodeo grounds, nurseries, reclamation sites, and sod farms. Economy-conscious customers will find them more than equal to just about any soil cultivation task you can throw at them.

    Features May Include:

    • Heavy-duty Bearing Hangers
      • Heavy-duty hangers resist the high torque from U-bolts and keep the discs out of the ground.
    • Optional Disc Scrapers
      • Disc scrapers are available to reduce build-up on discs.
    • Smooth or Notched Discs
      • 22" Notched front discs or choose from 20" or 22" notched or smooth rear discs for the configuration that's just right for your tillage task.
    • Easy Adjustments
      • Easily adjust the front and rear gangs to 5 positions for less or more aggressive tilling with a single pin release and lock.
    • Transport Tires
      • Large transport tires (with the option of adding two more) provide capability for road and field transport over tough surface conditions.
    • Optional Furrow Filler Blades
      • 18" or 20" Optional furrow filler blades provide more uniform finish on multiple pass applications.

    Info

    Industry

    Agriculture

    Make

    Land Pride

    Model

    DH3512

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Attachment / Implement

    Subcategory

    Disc Bedders/Harrows

    Specs

    Weight

    2,747 lbs (1246 kg) | Tongue: 172 lbs (78 kg)

    Cutting Width

    12 ft-0 in

    Width

    93 lbs (2.36) | Max. cultivation: 12 ft -0 in (3.66) Approx | 93 in | Transport: 12 ft - 4 in (3.76) Base unit

    Power/Horsepower

    55-100 (41-75)

    Notes

    Hydraulic cylinder for depth/lift control: 3 in x 8 in Hydraulic cylinder with hoses and fittings | Depth control: Cylinder stroke control spacers | Front to rear leveling system: Manual crank adjustment | Gang axle construction: 1 1/8 in | Gang swing arm: 4 x 3 x 1/4 | Center gang beam construction: 4 x 3 x 1/4 | Mainframe front tube: 5 x 3 x 1/4 | Side mainframe construction: 3 x 4 x 3/16 | Rear gang angle adjustment: Single pin adjustment to 12, 13 1/2, 15, 16 1/2, or 18 degree | Forward gang angle adjustment: Single pin adjustment to 15, 16 1/2, 18, 19 1/2, or 21 degrees | Number of bearings: 12 For 9 in (23 cm)disc spacing 16 For 7.5 in (19 cm)disc spacing | Disc bearing type: Greasable & triple lip sealed ball bearings | Disc blade spacing: 7.5 or 9 in (19 or 23) | Disc blade sizes and types: 20 or 22 (51 or 56) Notched or smooth | Approx weight load on each blade with 9 in (23 cm) blade spacing: 81 to 86 (37 to 39) | Approx weight load on each blade with 7.5 in (19 cm) blade spacing: 76 to 82 lbs (35 to 37) | Hitch frame construction: 3 x 3 x 1/4 (7.6 x 7.6 x 0.6) Wall tubing w/hose carrier and park jack mount | Hitch type: Pull-type w/clevis & hole for 1 1/4 (3.2) pin

    Tires

    Transport: Two 9.5L x 15 tires mounted on 15 in x 6 in 5-bolt rims
