2026 Manitou Group ME 320 US
Get in Touch
Description
2026 Manitou Group ME 320 US

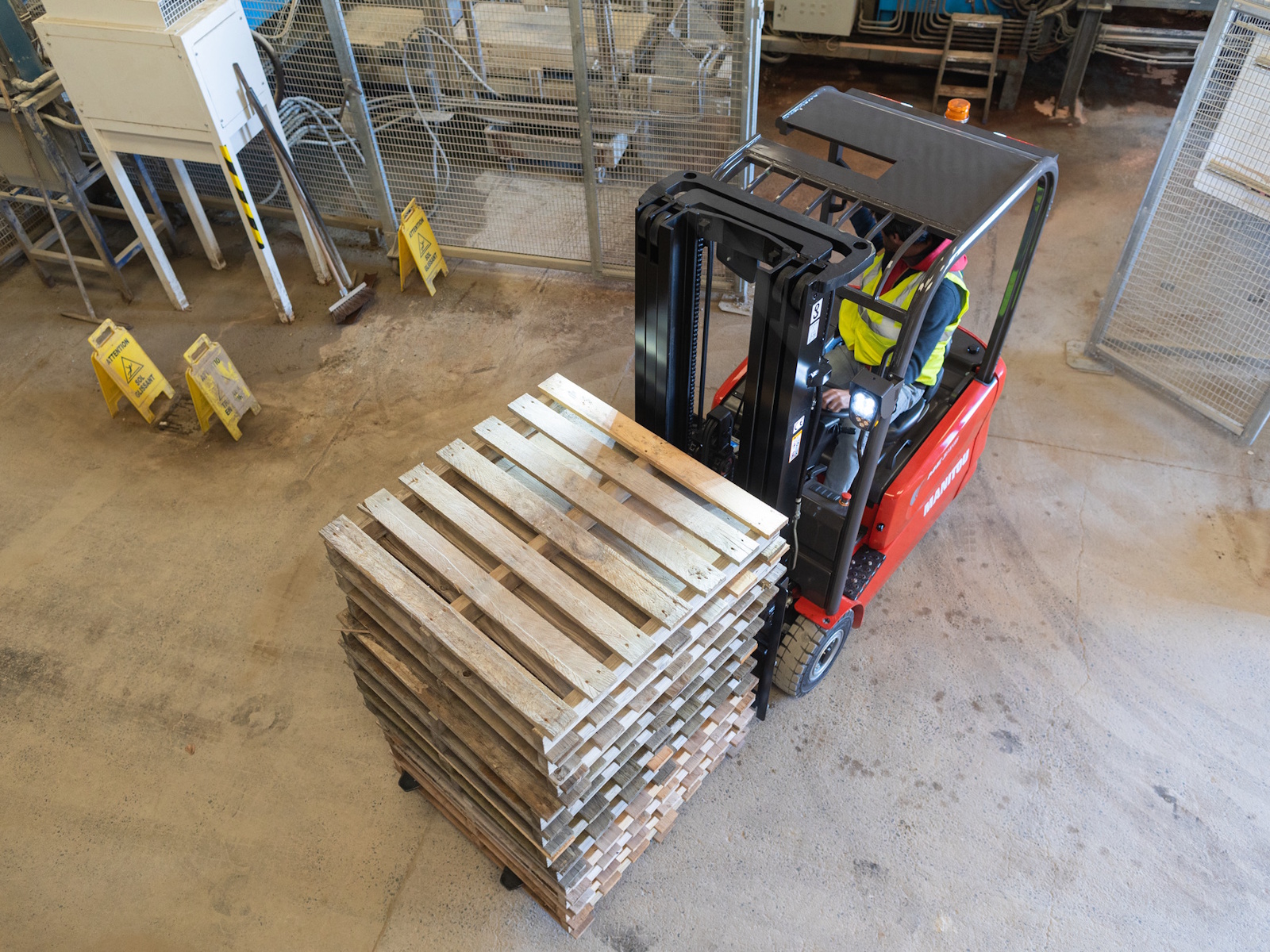

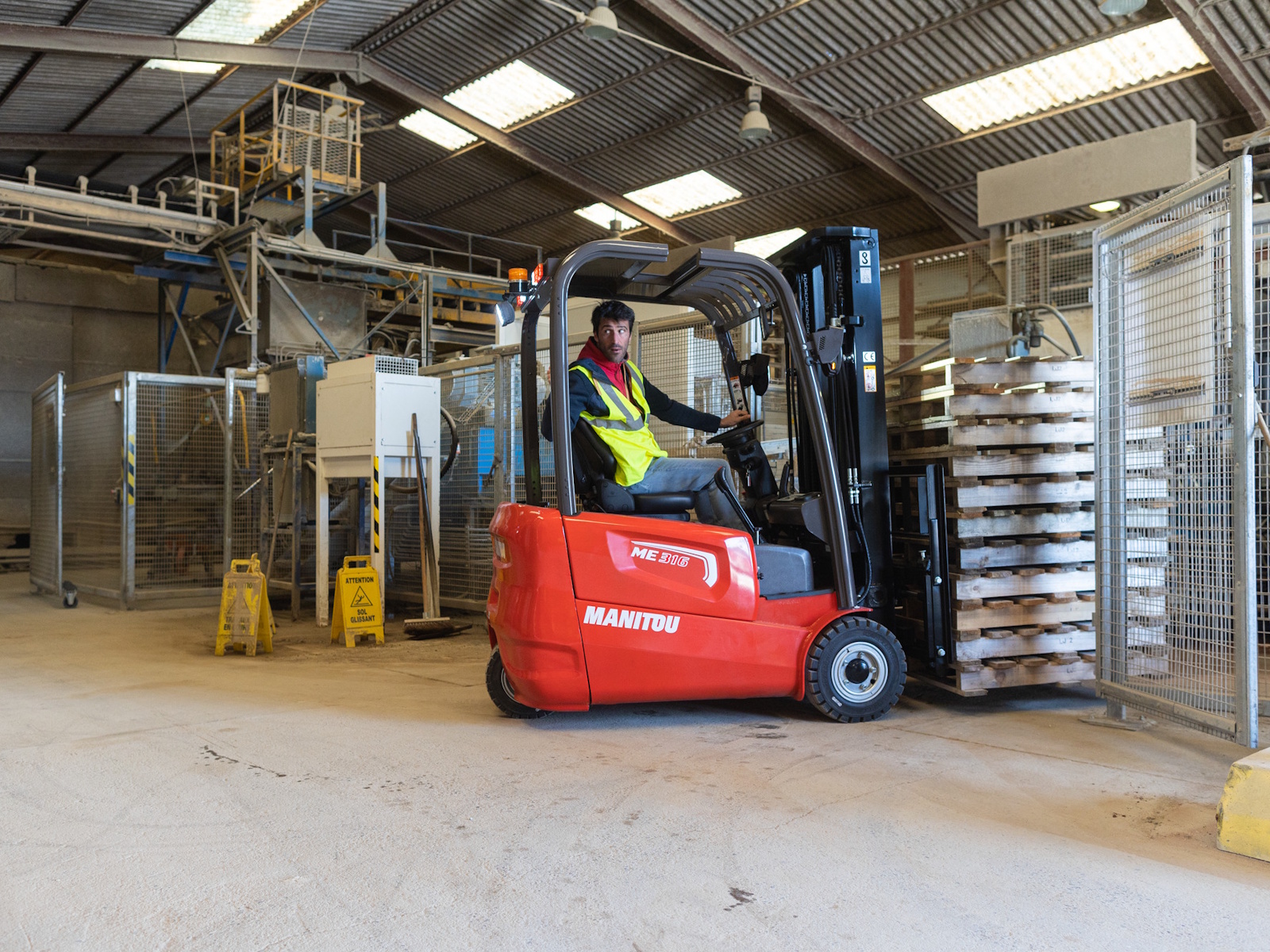

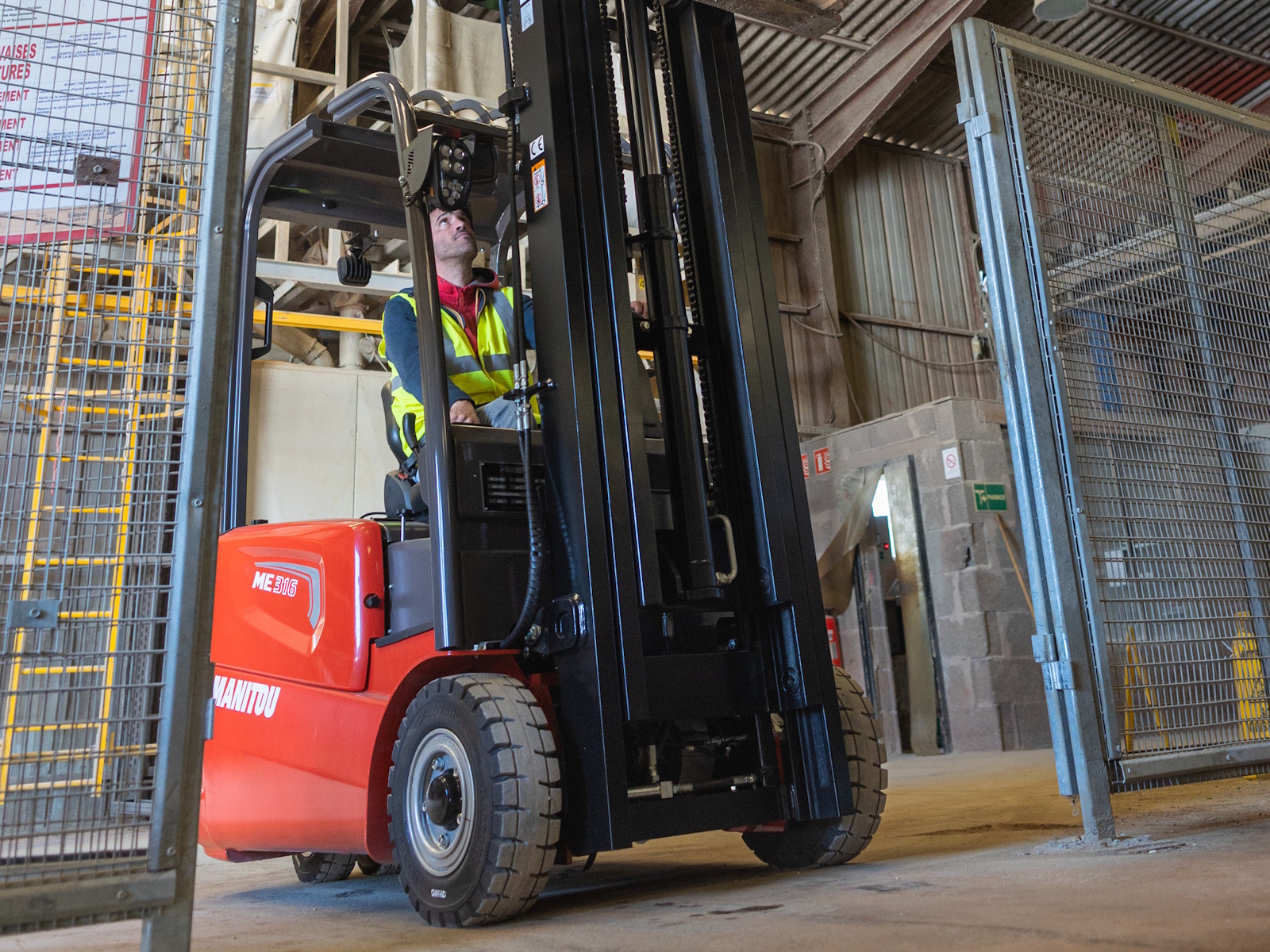

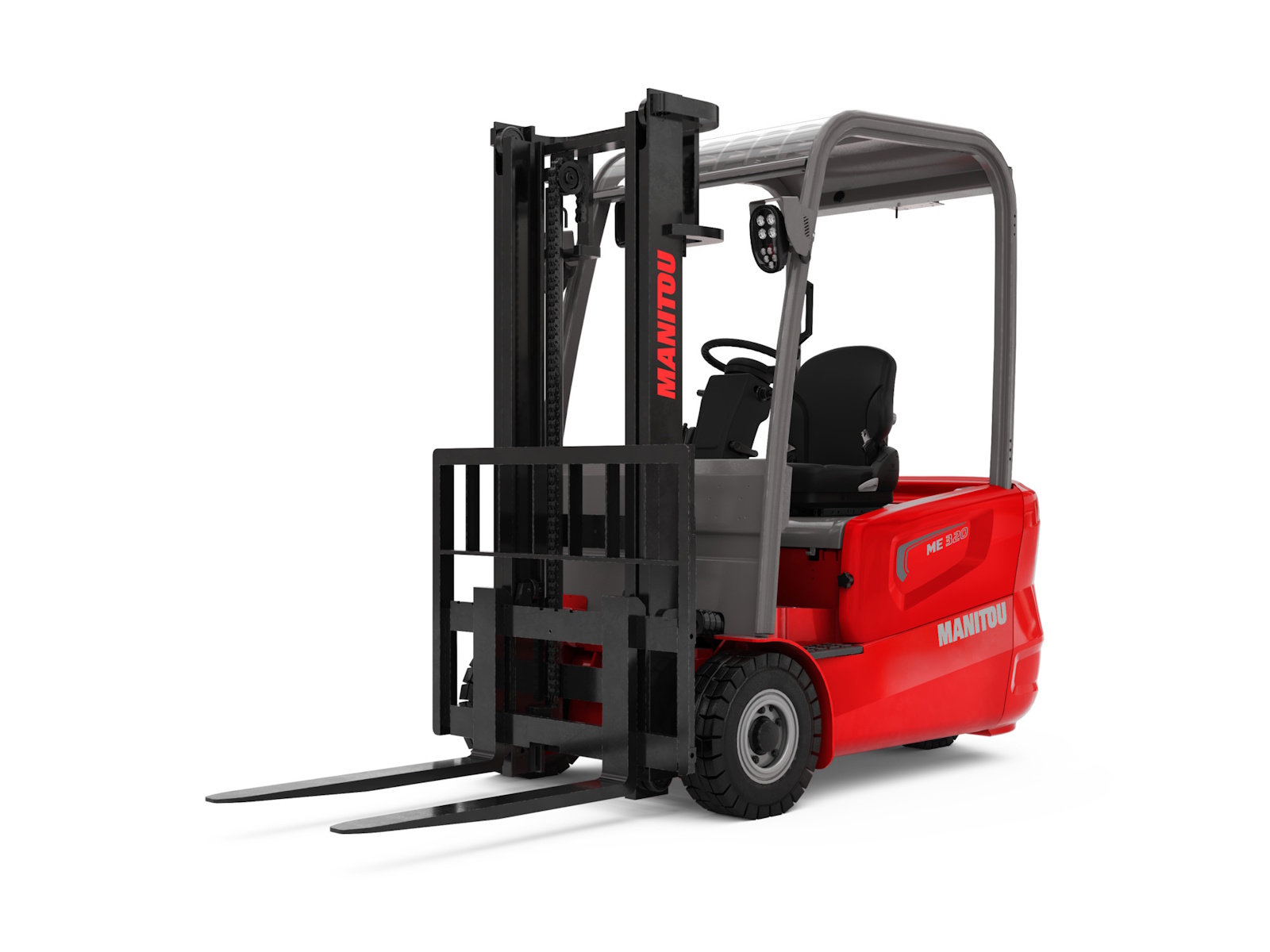

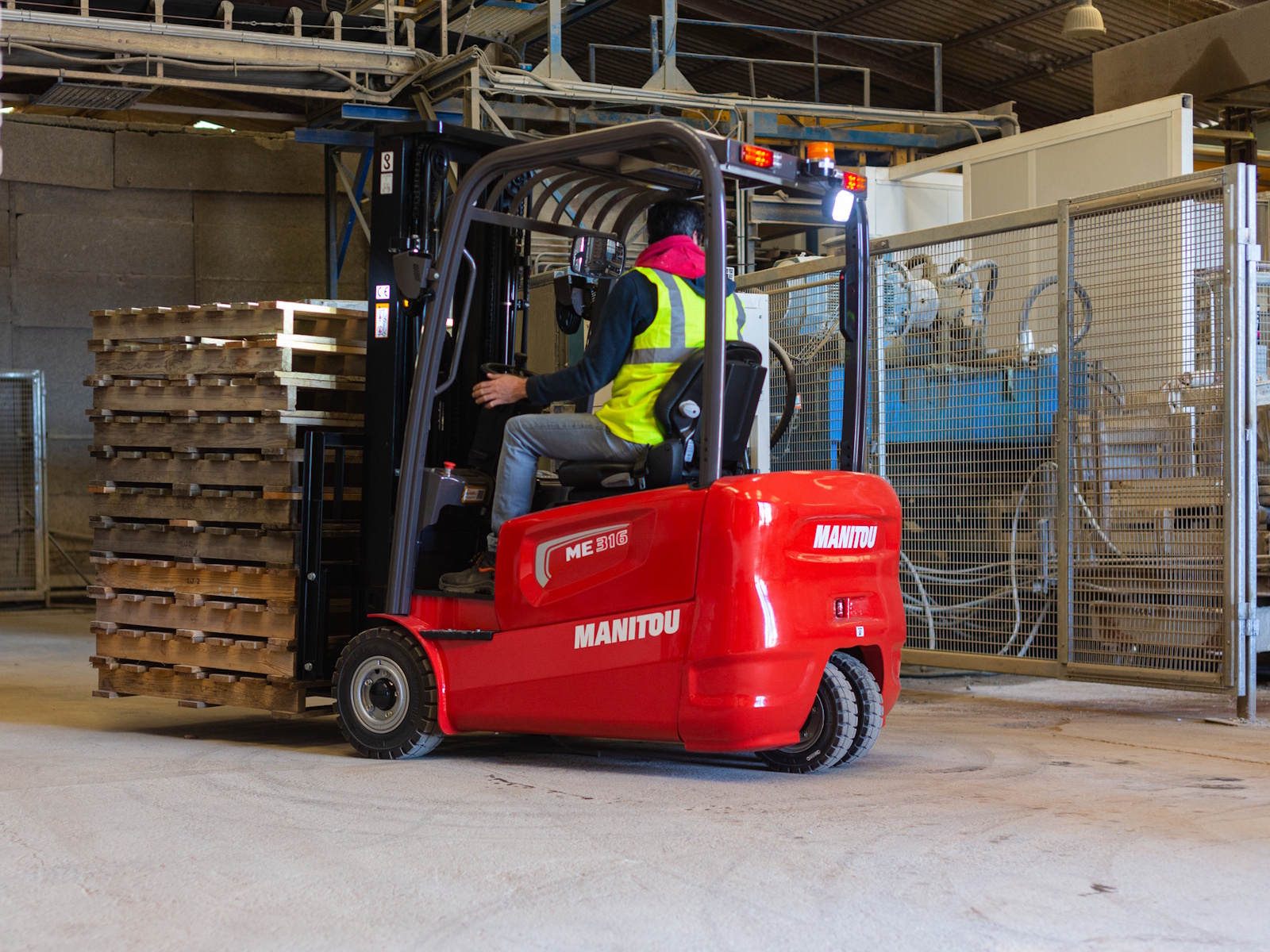

The ME 320 forklift truck was designed to transport loads weighing up to 2000 kg. Electric, easy to handle, it helps you on a daily basis in all your handling operations: truck loading/unloading, storage, production line feeding, logistics application... Take advantage of its robustness and performance to work in optimal safety conditions. The ME 320 also offers an excellent level of comfort in the cab. Get a complete solution, adapted to each business problem!
Info
Industry
Agriculture
Make
Manitou Group
Model
ME 320 US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Electrical - Lead
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 14 in | Forks section / width / length: 2 in x 5 in x 42 in | Fork carriage ISO 2328 (class/form): A/B 2A | Travel speed (laden / unladen): 9 mph-9 mph | Lifting speed (laden / unladen): 1 ft/s-1 ft/s | Lowering speed (laden / unladen): 2 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 900 daN / 930 daN | Travel speed (laden / unladen): 9 mph-9 mph | Lifting speed (laden / unladen): 1 ft/s-1 ft/s | Drawbar pull (Laden / Unladen): 900 daN / 930 daN | Gradeability (laden / unladen): 13 % / 15 % | Number of drive motor / Drive motor rating S2 60 min: 2 / 4.50 kW | Lift motor rating at S3 15%: 8.60 kW | Energy consumption according to VDI cycle (kWh/h): 4.70 kWh/h | Type of drive control: Electronic | Working hydraulic pressure for attachments: 2611 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 70 dB | Sound level at the driver's ear according to DIN 12 053: 70 dB
Load Capacity
4409 lb
Wheelbase
58 in
Weight
Service weight: 7650 lb | Weight on front axle (laden) / rear axle (laden): 10472 lb / 1587 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3373 lb / 4277 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 200/50-10 | Dimensions of rear wheels: 15x4,5-8 | Number of front wheels / rear wheels: 2 / 1 | Number of drive wheels: 2 | Front wheel gauge: 36 in
Height
Seat height/stand height: 39 in | Height of overhead guard (cabin): 80 in | Height of towing bar (coupling height): 20 in
Length
121 in | Length to face of forks: 79 in
Width
44 in | Fork carriage width: 39 in | Aisle Width for pallets 1000 x 1200 crossways 132 in | Aisle width for 800 x 1200 pallet lengthways: 137 in
Ground Clearance
Ground clearance below mast: 4 in | Ground clearance at centre of wheelbase: 4 in
Turning Radius
65 in
Brakes
Service brake: Oil bath
Battery
Battery according to DIN 43531/35/36 A, B, C: DIN43531 A | Battery voltage / capacity: 48 V / 690 Ah
