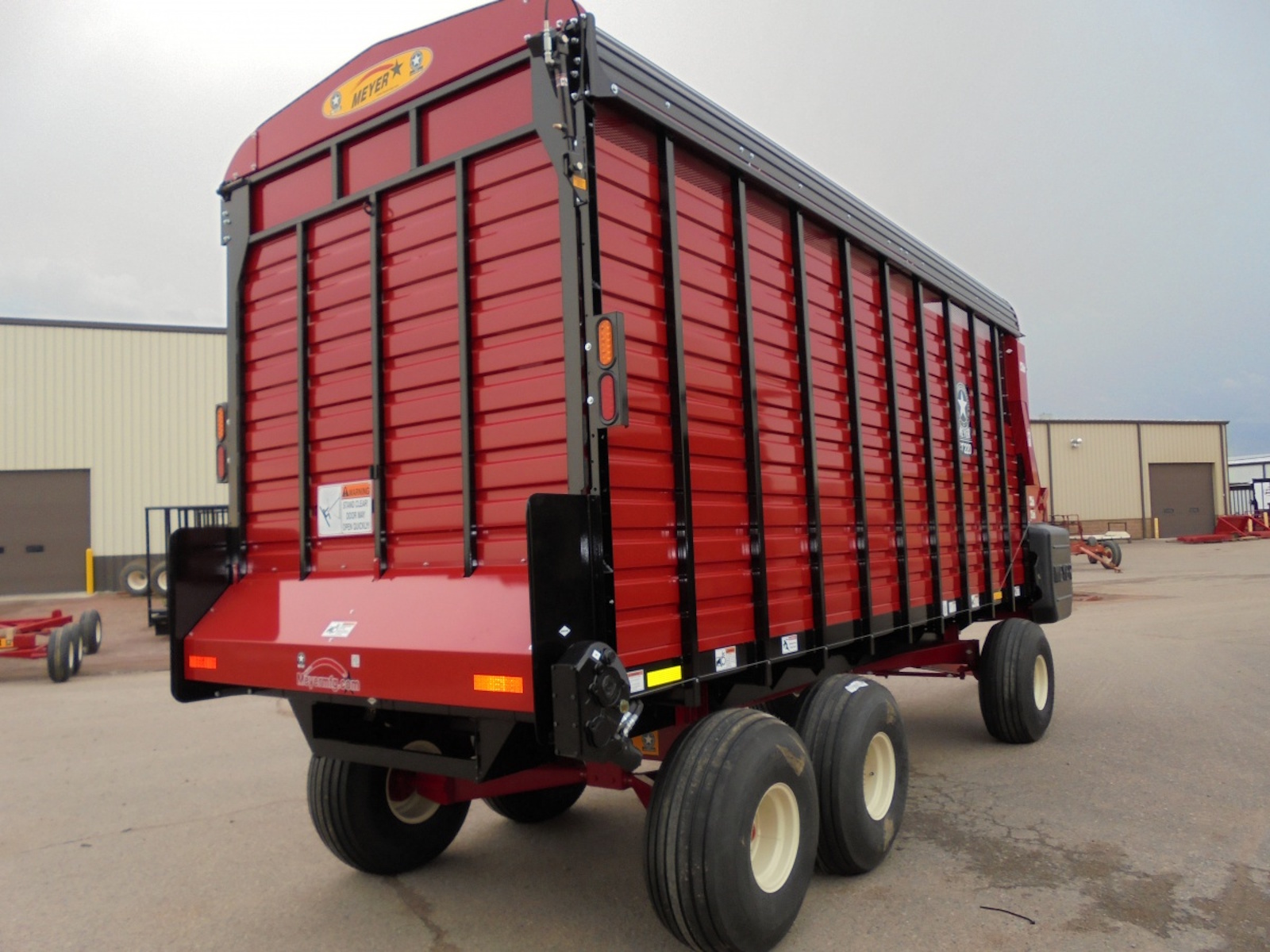

    2025 Meyer Manufacturing RT218

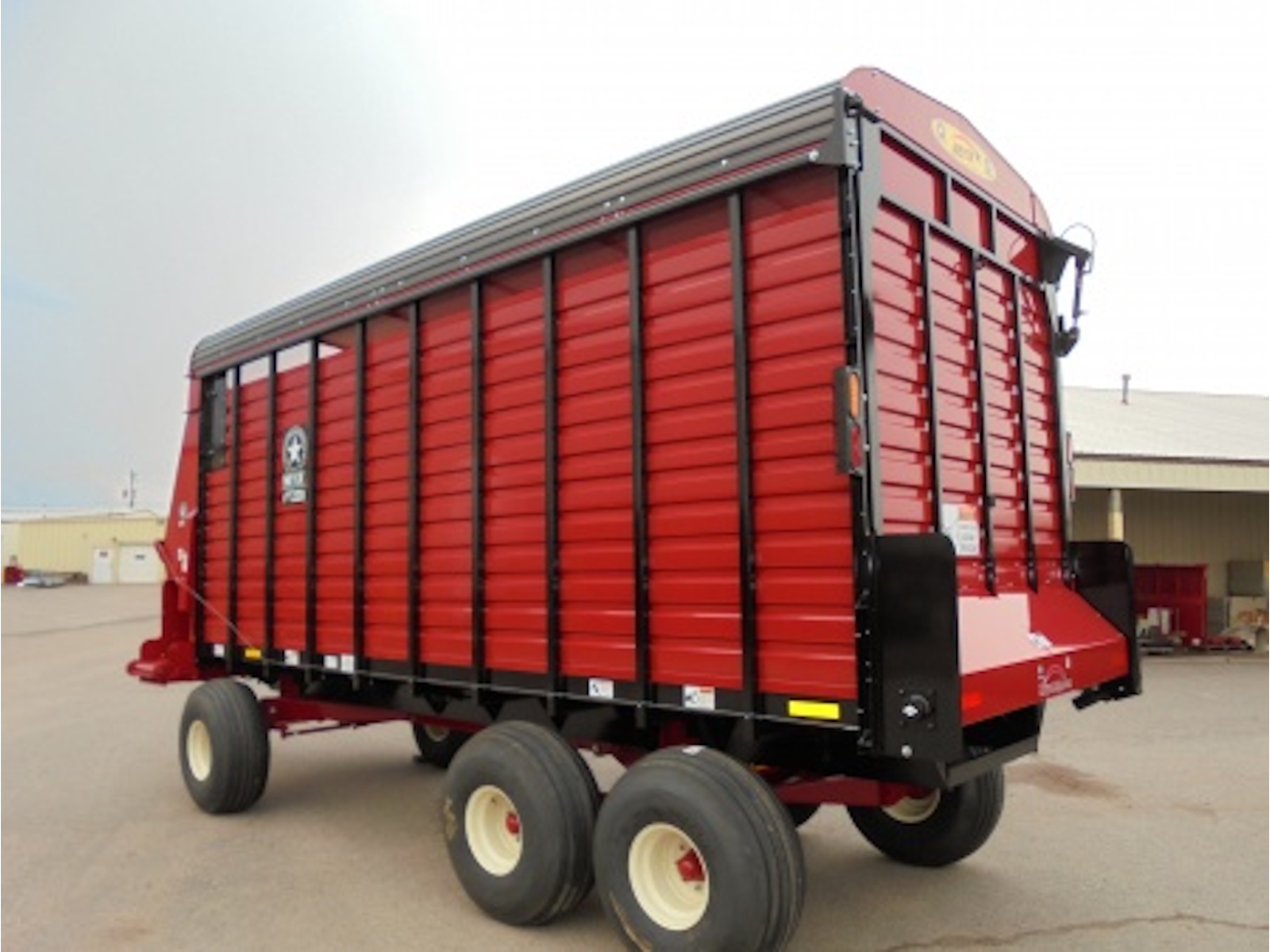

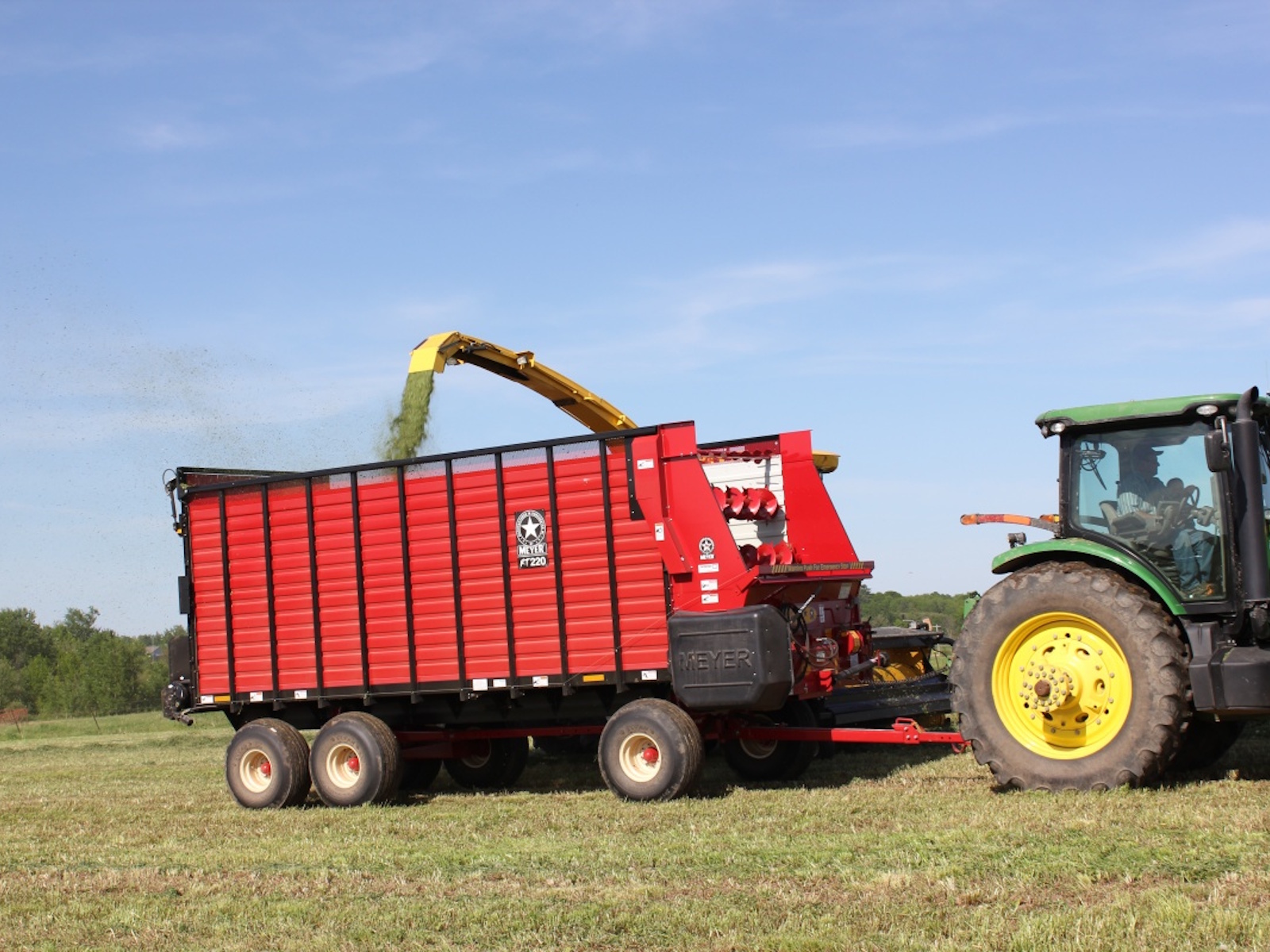

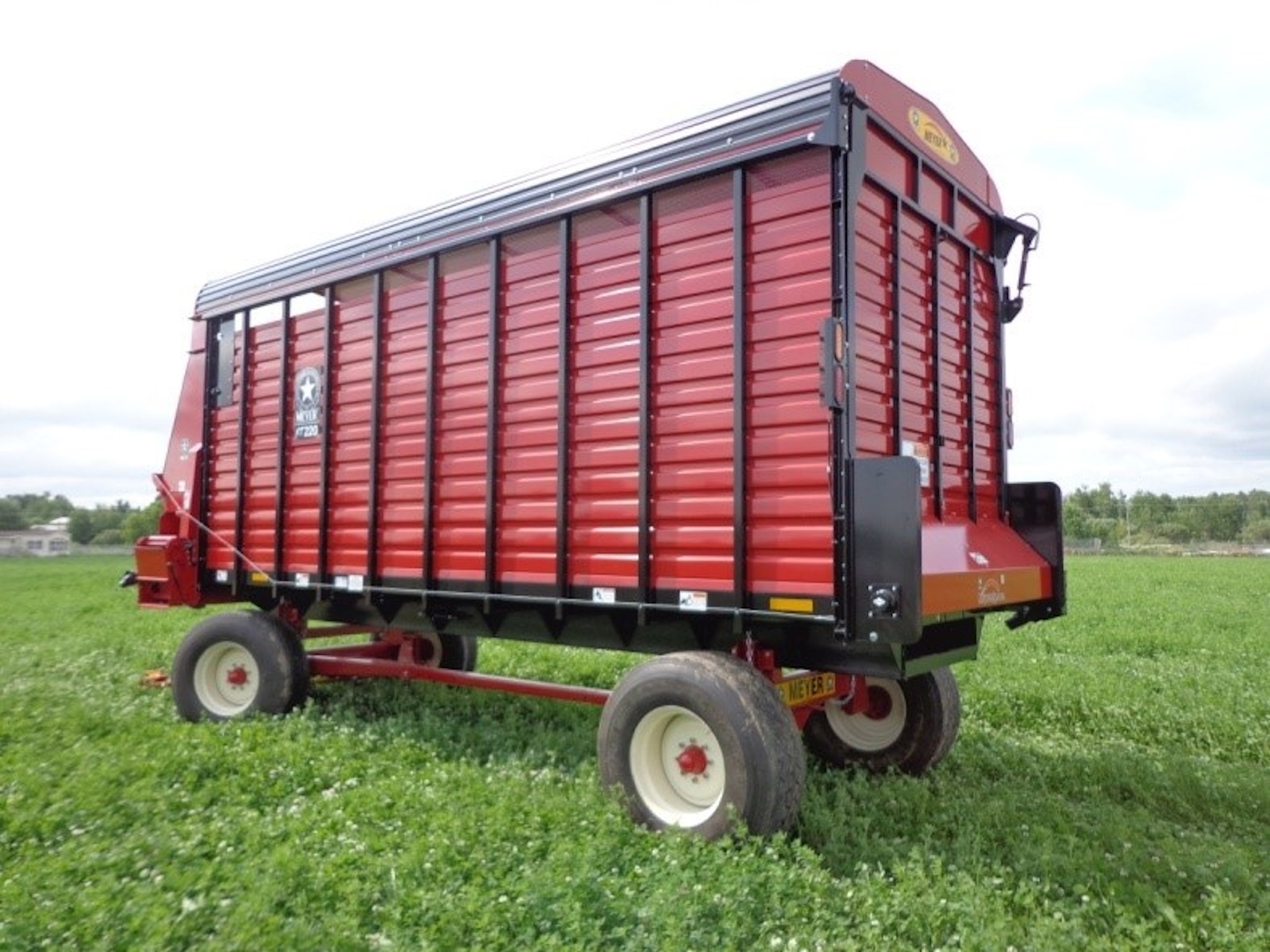

    The Meyer RT200 Series Front & Rear Unload Forage Box features a 7'5" inside width, all steel frame, high speed - variable drive, HD bevel geardrive, poly floor and removable roof.  Wagon, Cart or Truck Mount models are available.  It offers more capacity, more speed and more options than any other forage box on the market.   RT200's are available as an open top and also offer high sides, hydraulic drive and more!

    Features May Include:

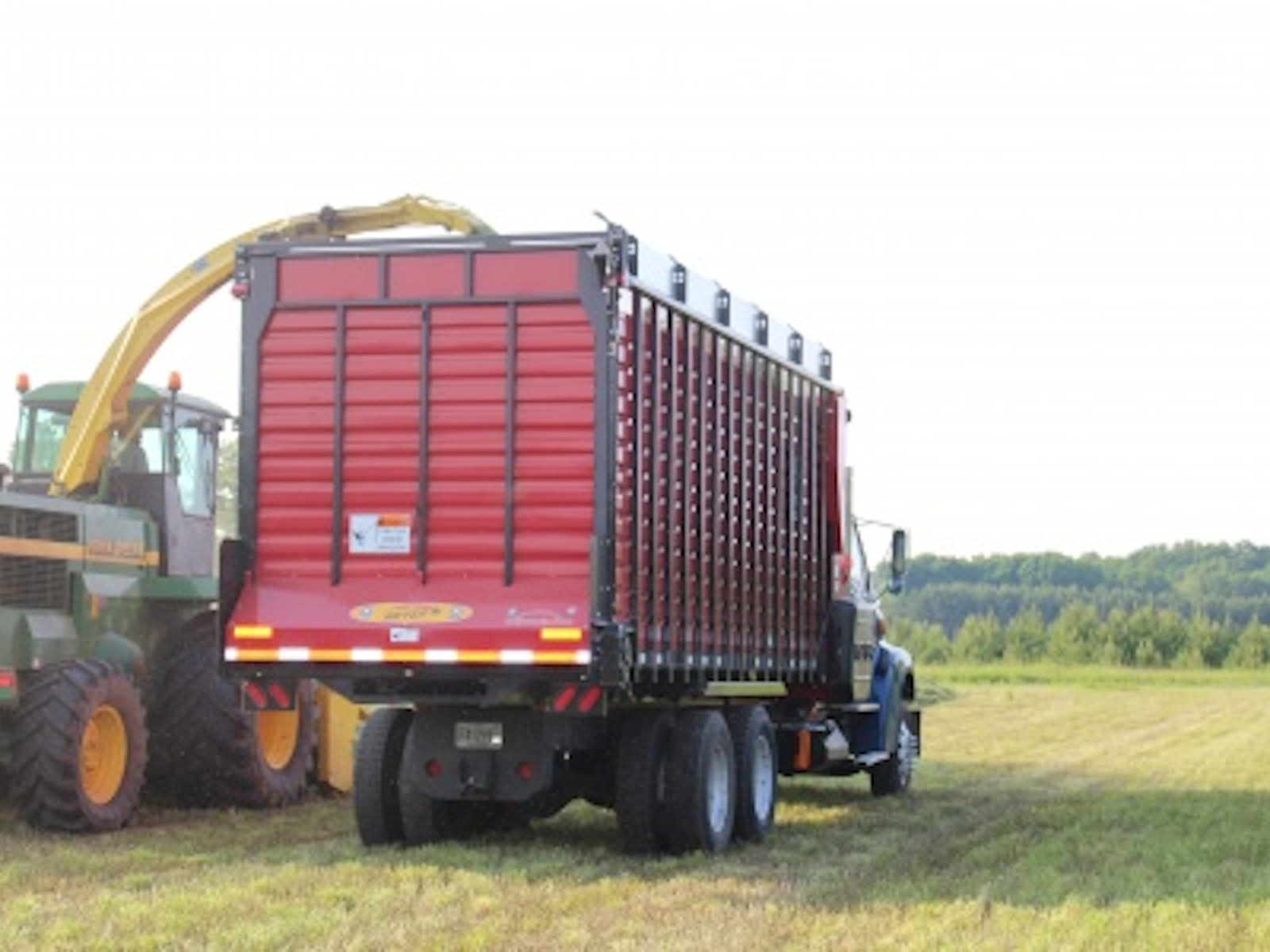

    • Wagon - Trailer - Truck Mount options

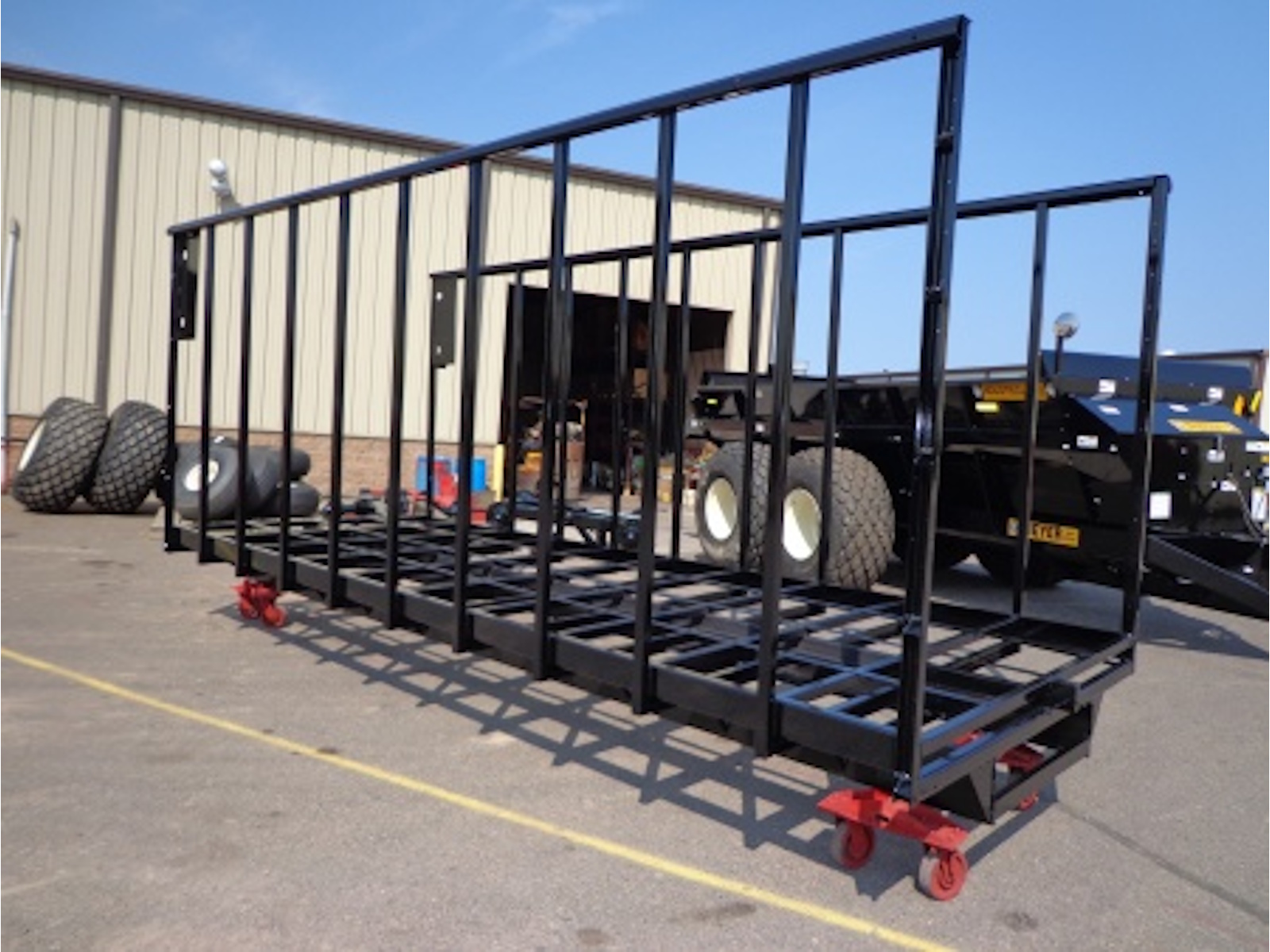

    • HD steel frame on 24" centers. 7'5" inside width for maximum capacity! New integrated top rail system eliminates the need for side supports on open top models.
    • Removable roof system standard / open top optional

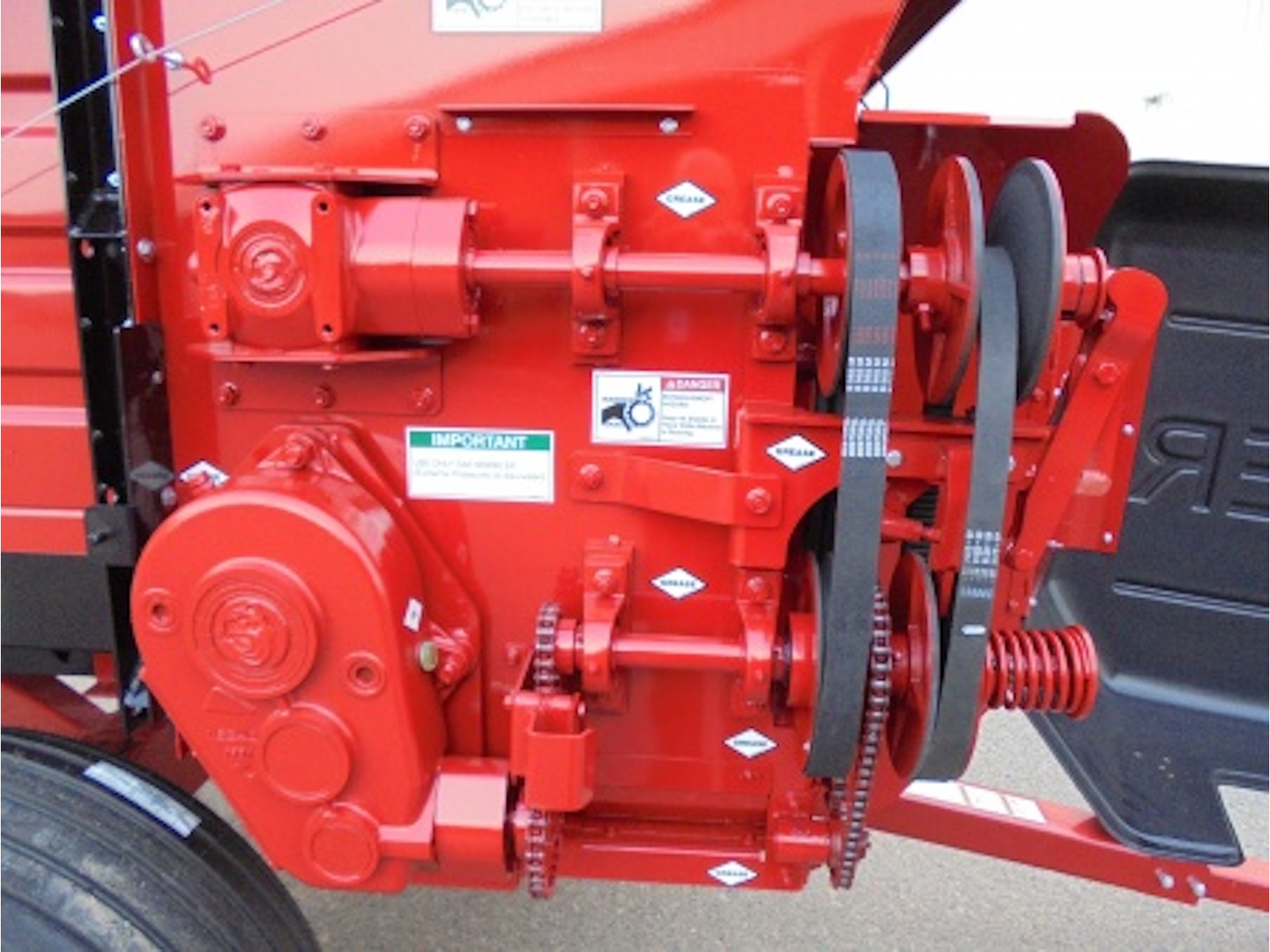

    • Variable speed RT Belt Drive standard equipment - featuring our new, high-efficiency bevel geardrive system which offers cleanout speeds up to 17' / minute!

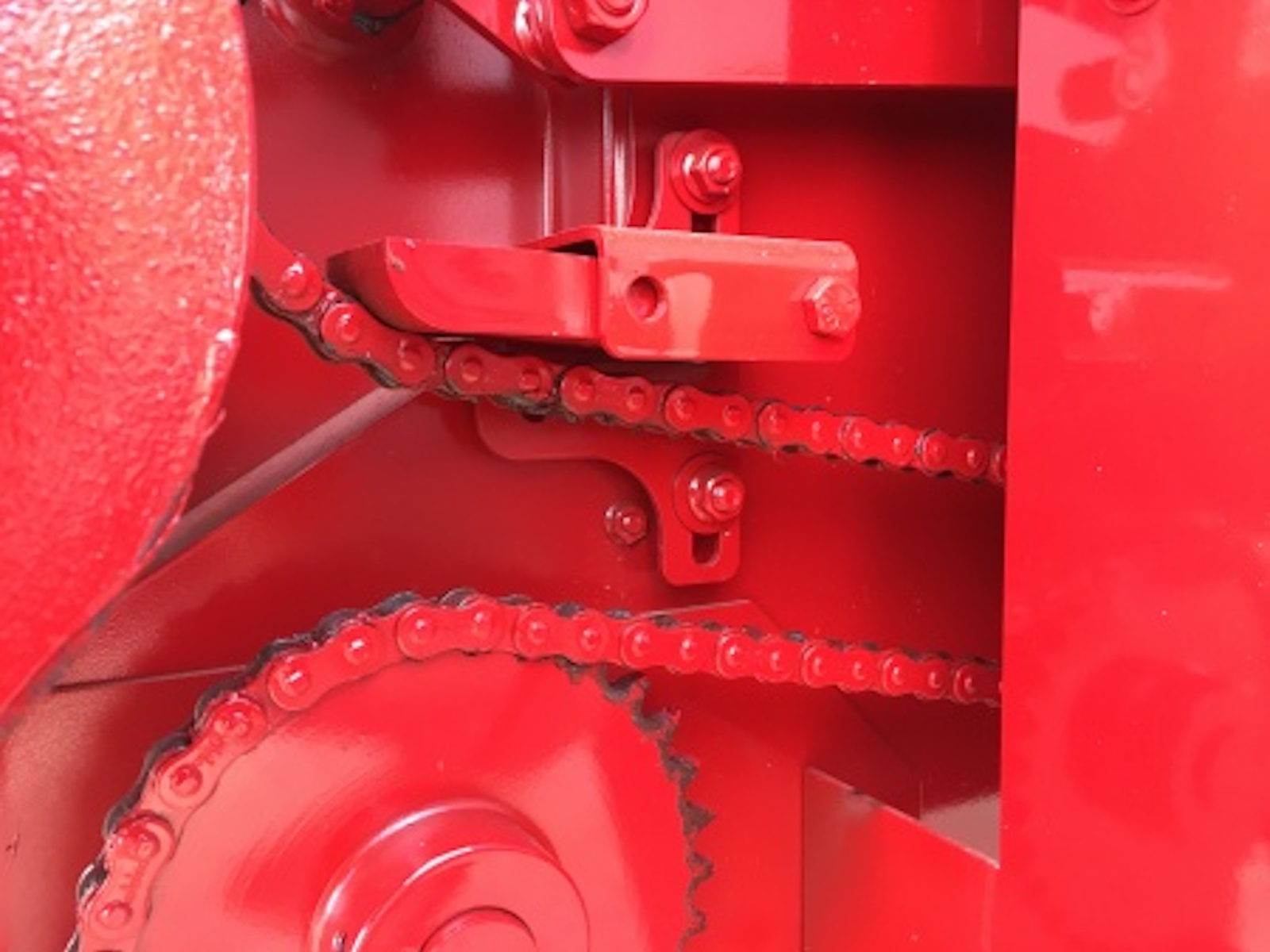

    • Spring loaded chain tensioning with nylon paddle tightners on all roller chains
    • HD 2" main drive shaft with machined drive sprockets - tough stuff!

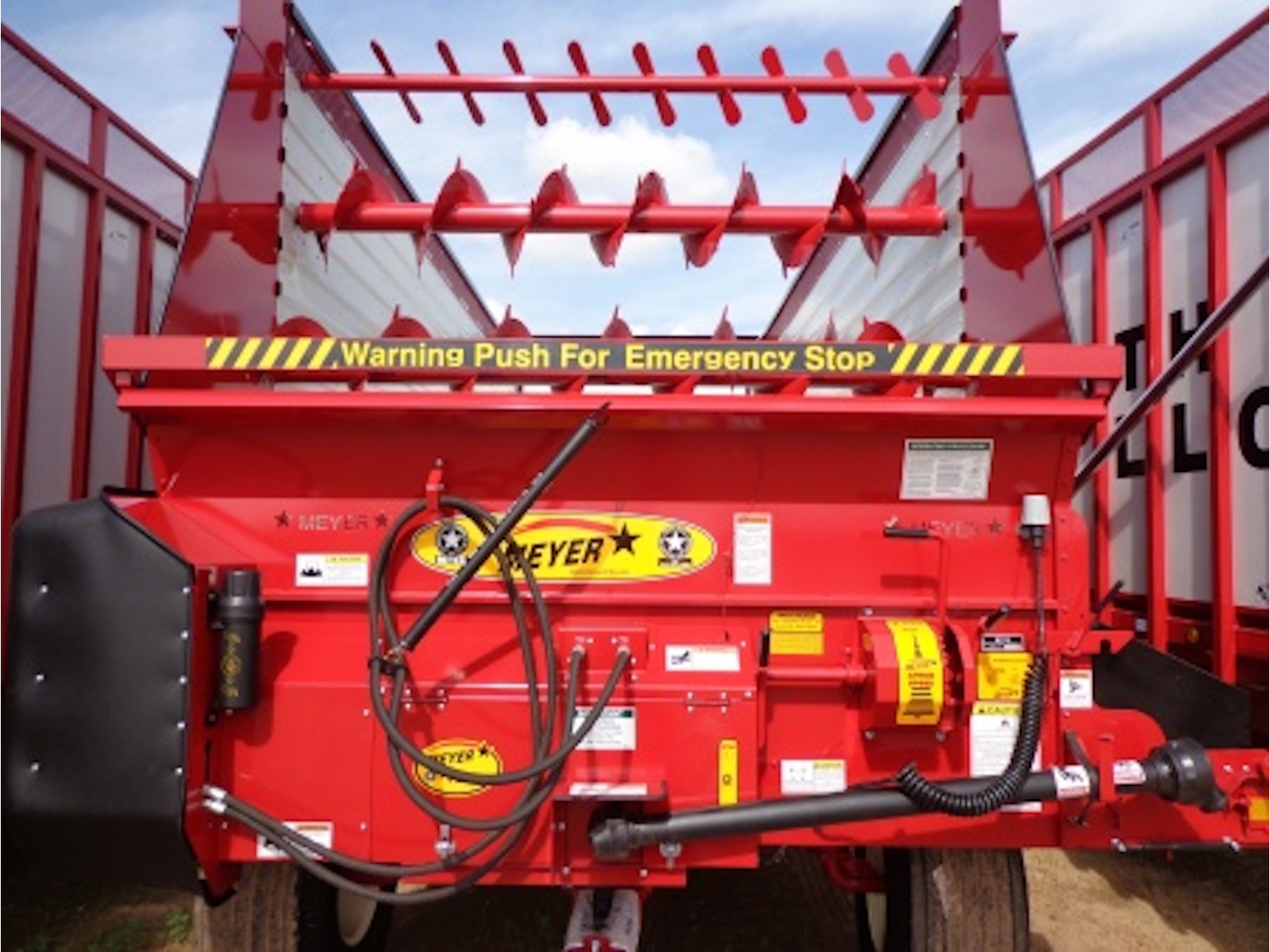

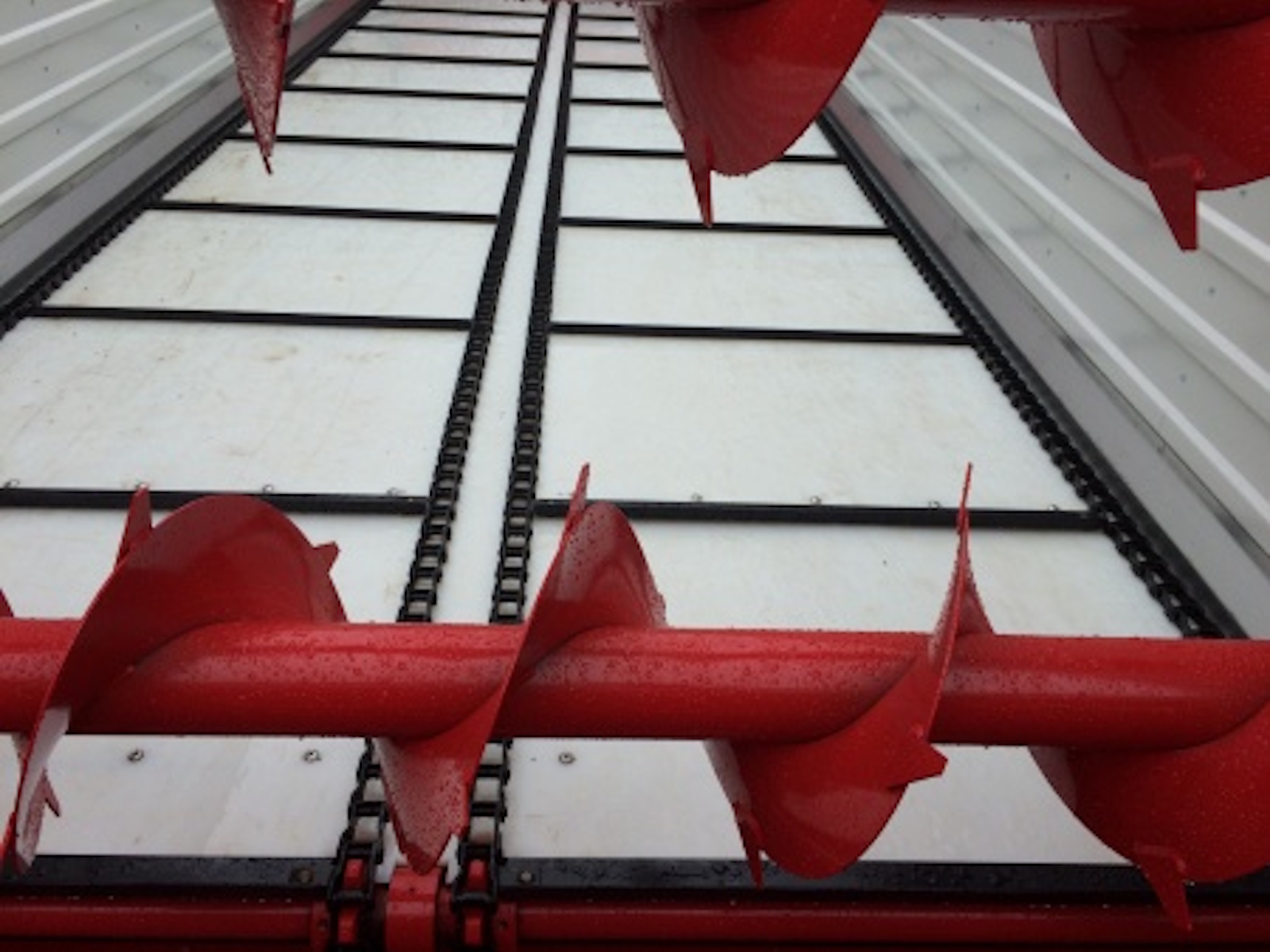

    • 18" diameter drum augers in a tapered formation provide a smooth mat of feed to discharge conveyor.

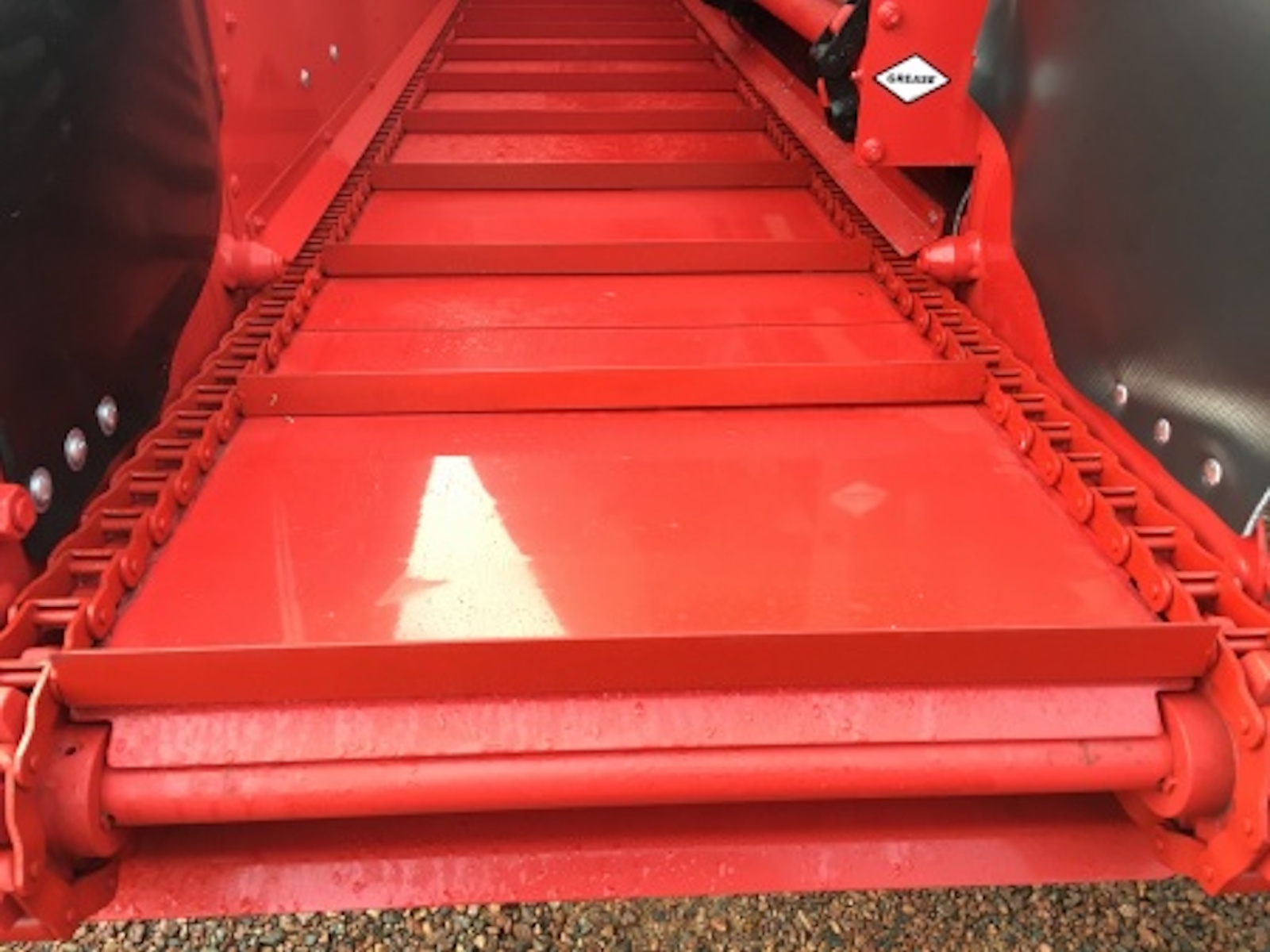

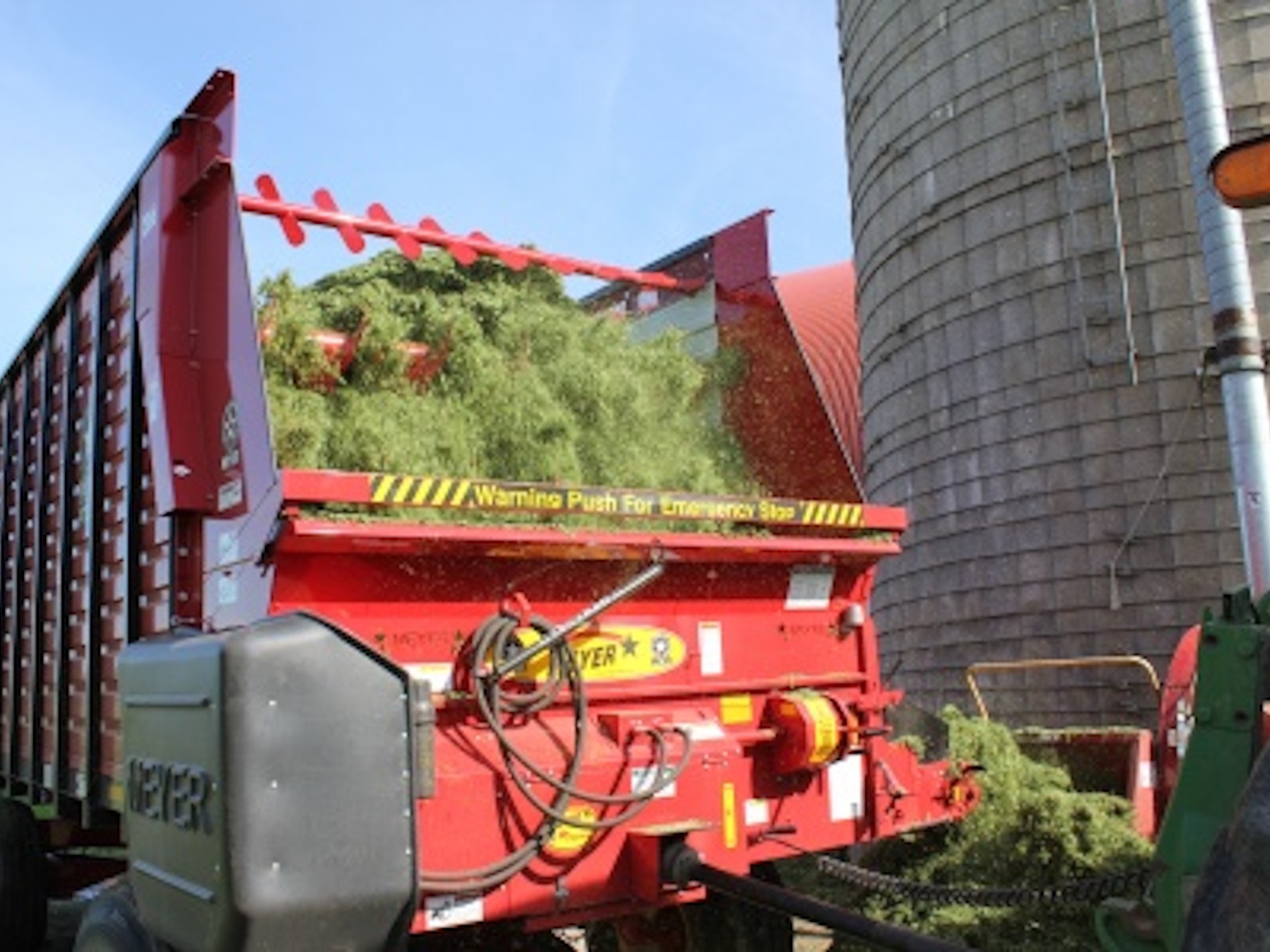

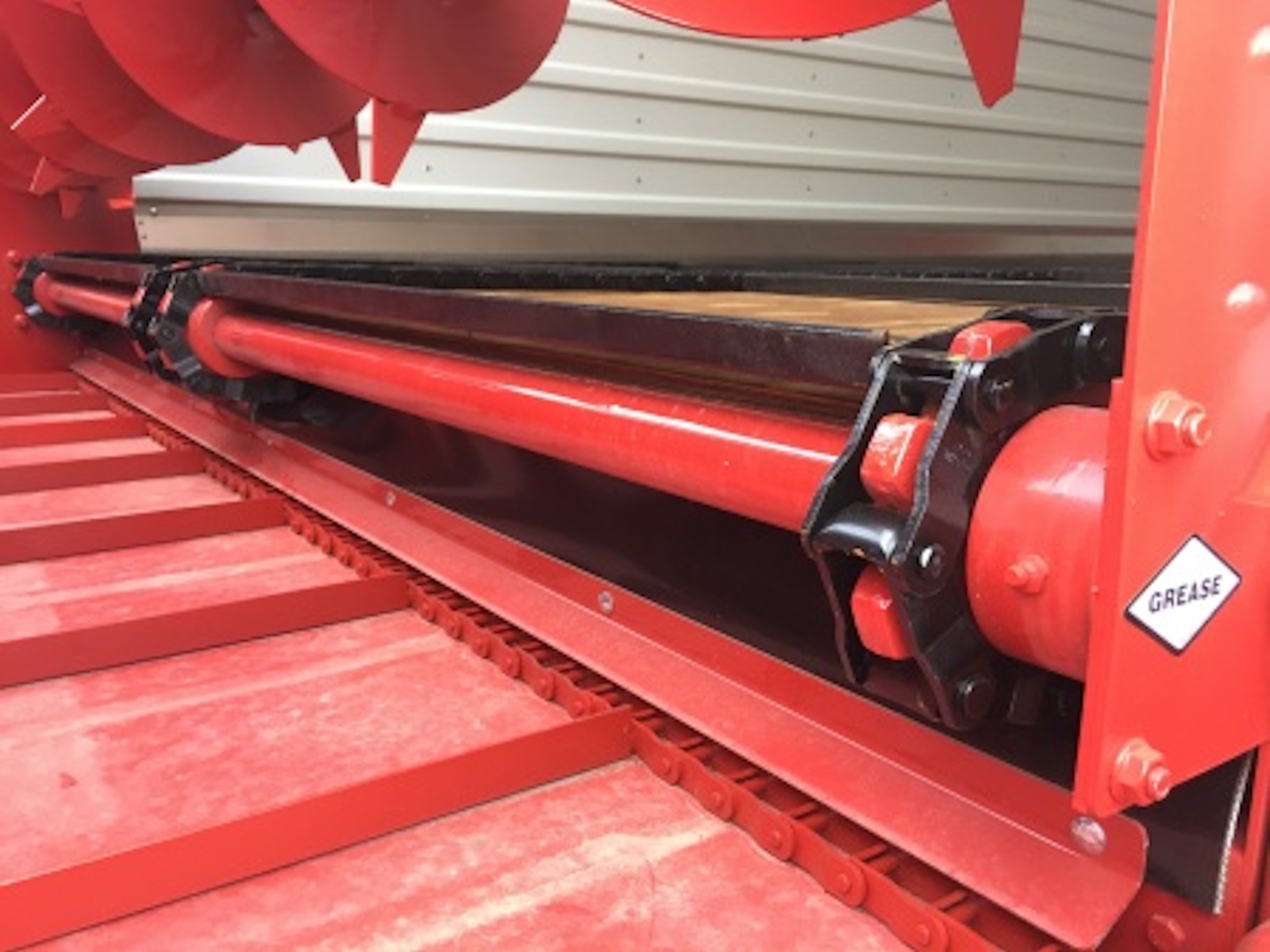

    • 24" wide pintle chain cross conveyor provides an even discharge to your blower or bagger without the buildup associated with roller chain conveyors. Fold-down extension and conveyor hold-down system standard!
    • Solid poly floor / high molecular - virgin material standard
    • Spring loaded, Torsion style apron tensioning system is centrally located under the floor giving you complete chain wrap on drive sprockets. Less strain on your aprons means a longer life.
    • Patented Direction Control System (DCS) offers front to rear unload switching with no coupler/pin change. NO HASTLE HERE!

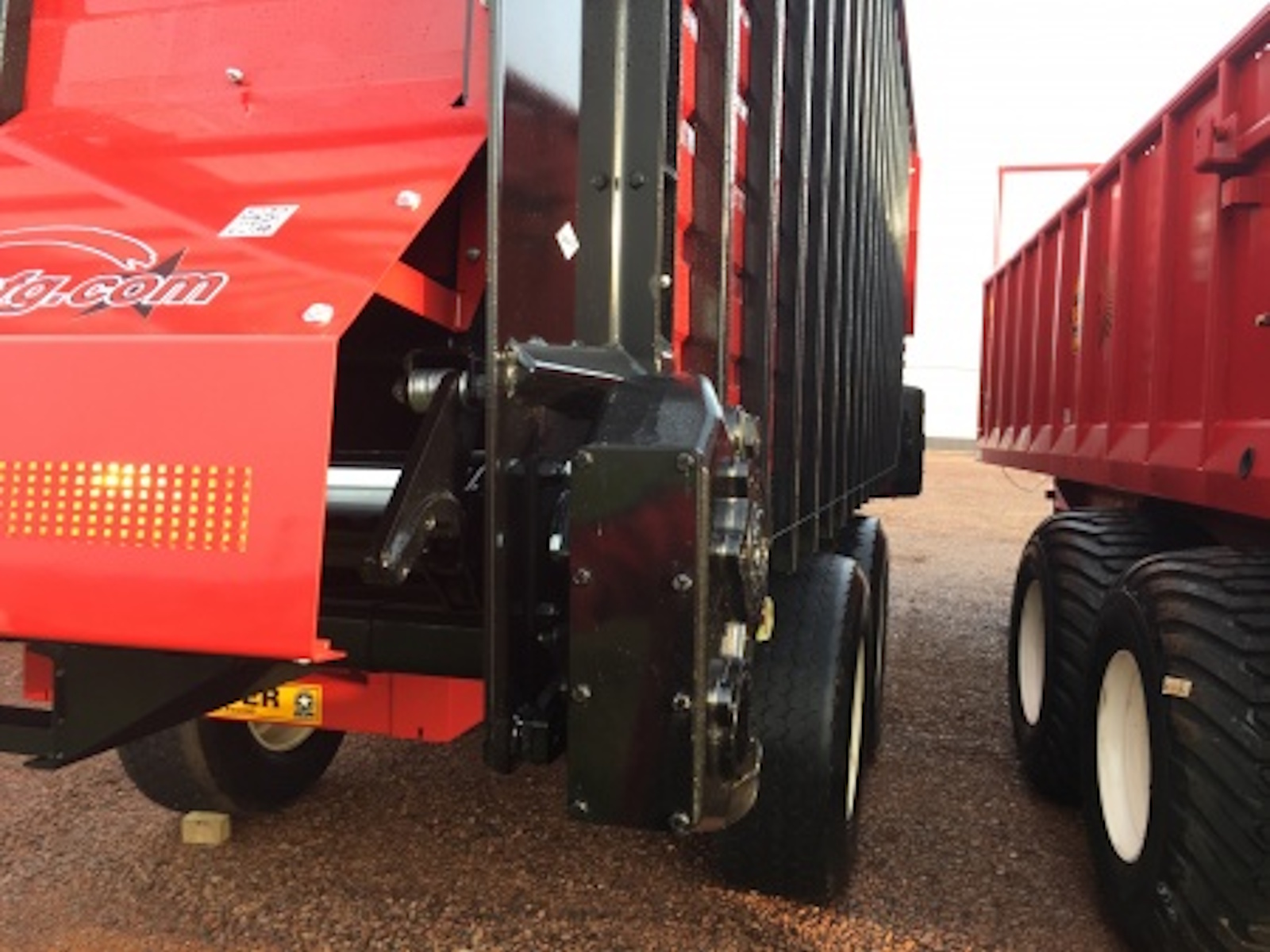

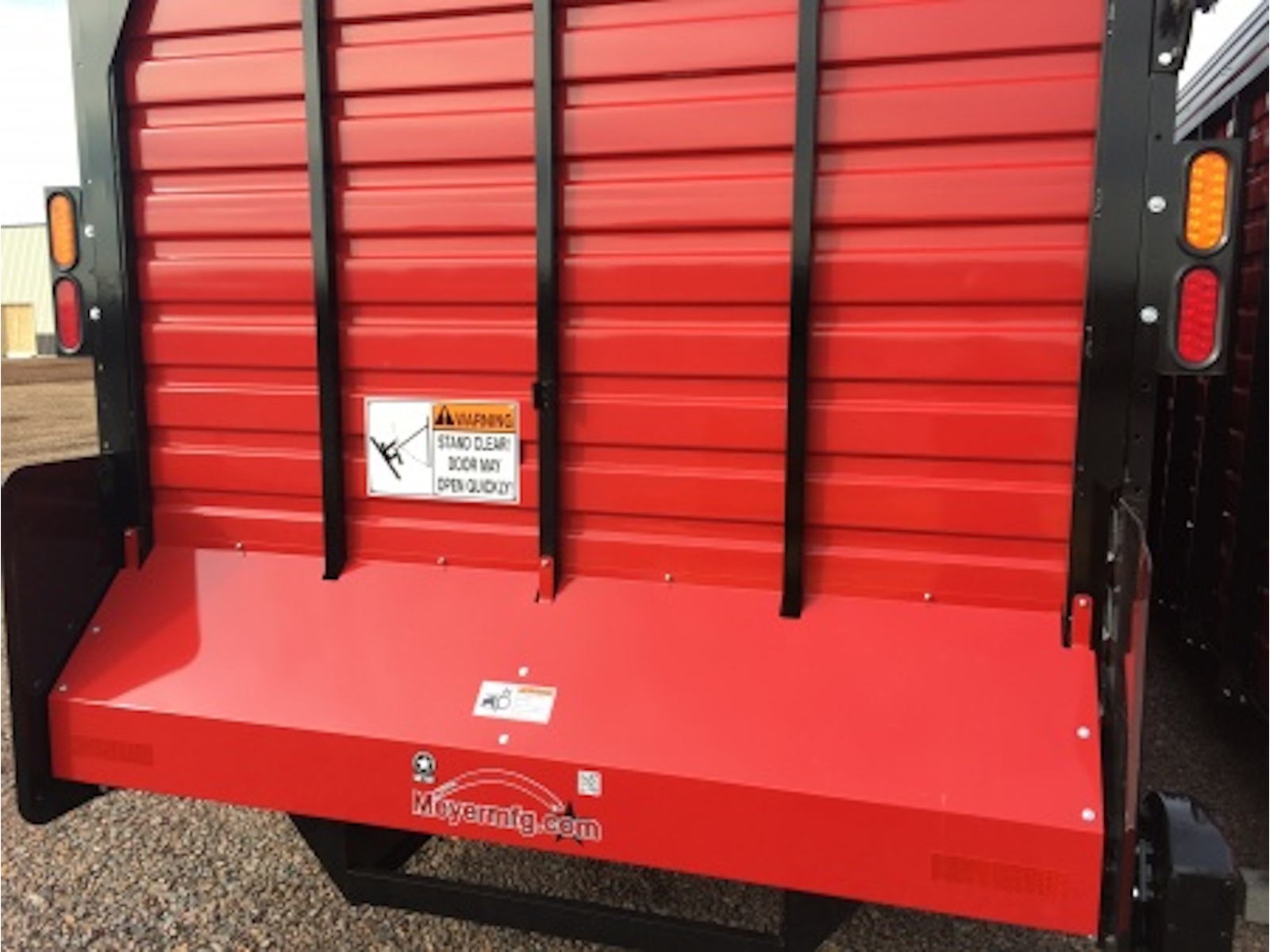

    • RT200 Models utilize hydraulic power & a HD bevel gearbox to tow the load(not roller chain reductions). Rear door opens and closes without assistance.
    • Rear Gate Delay option cuts unloading time and aggrevation!

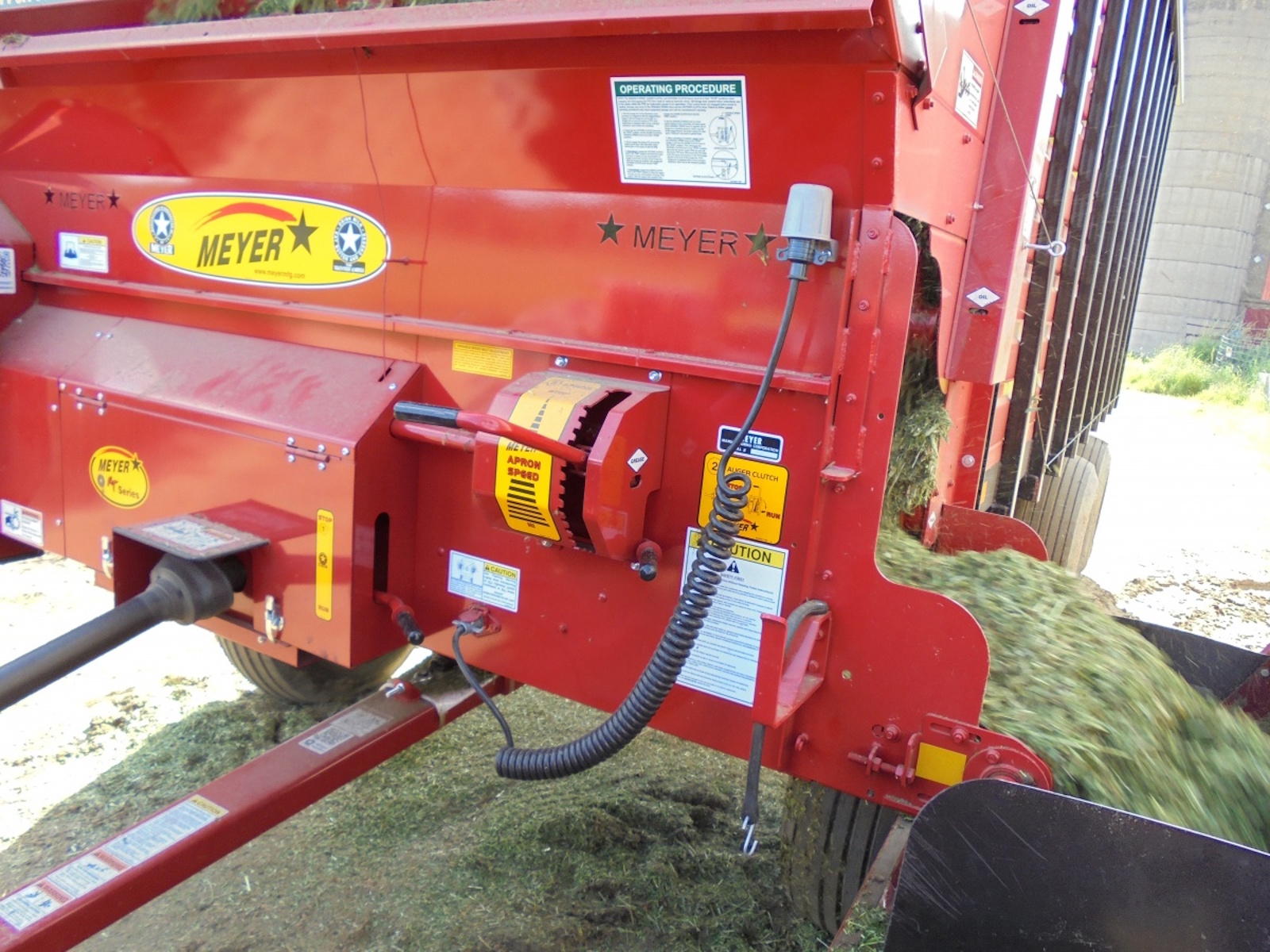

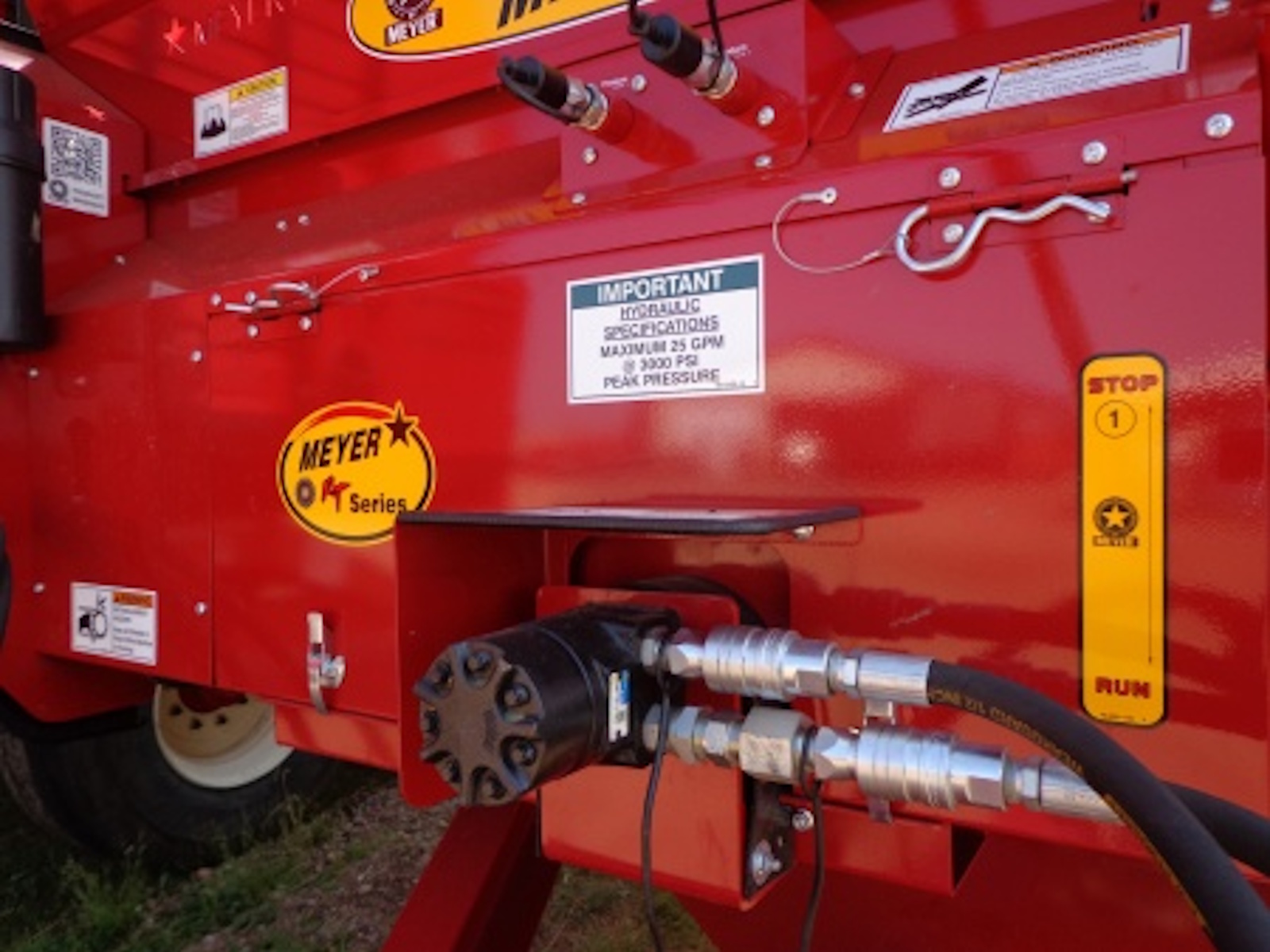

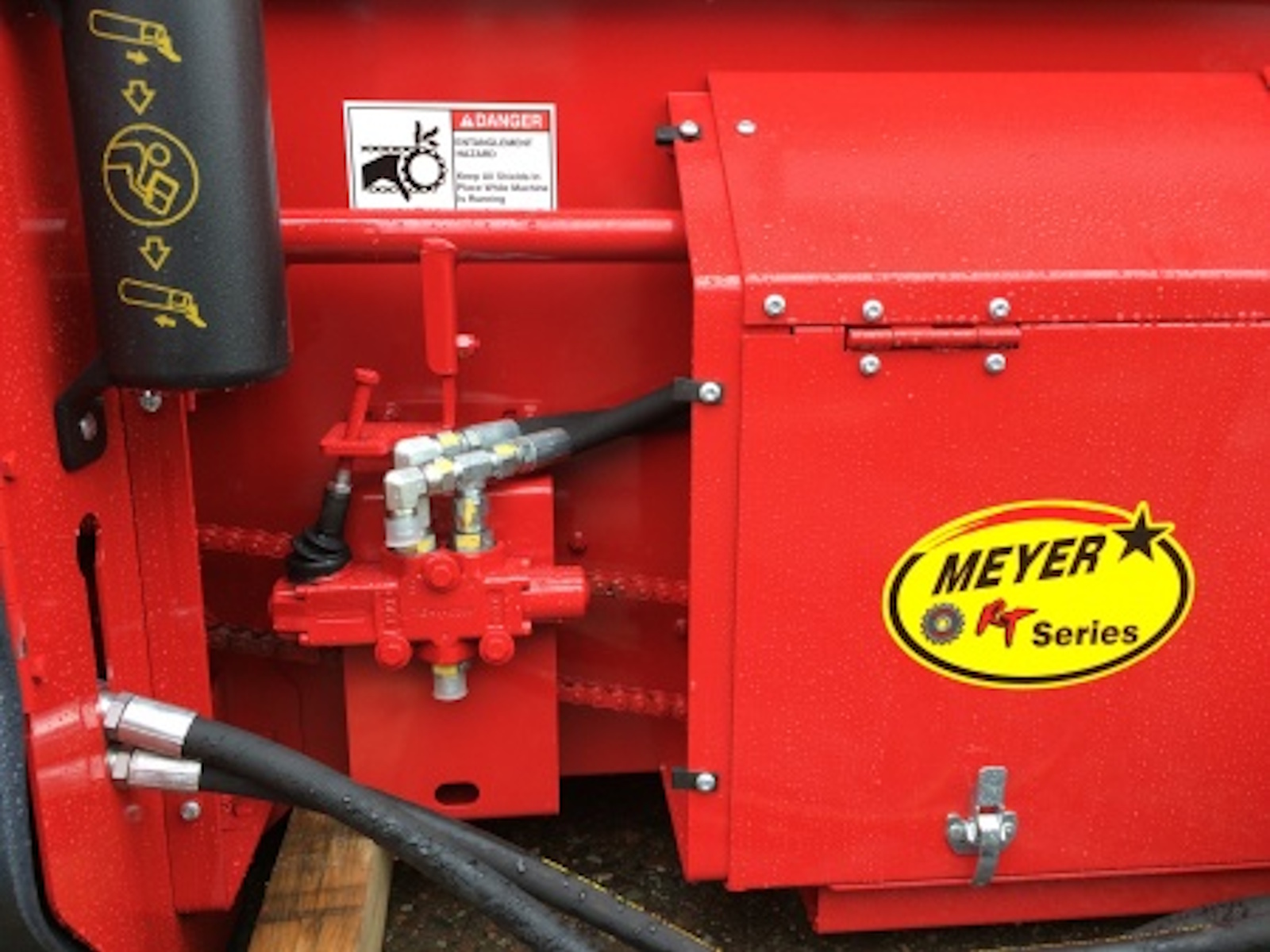

    • Basic hydraulic or cab controlled hydraulic front drive available / PTO standard
    • High capacity 12" taller side package available with or without a roof.
    • 4th beater available in conjuction with 12" taller side package (open top or roof models)

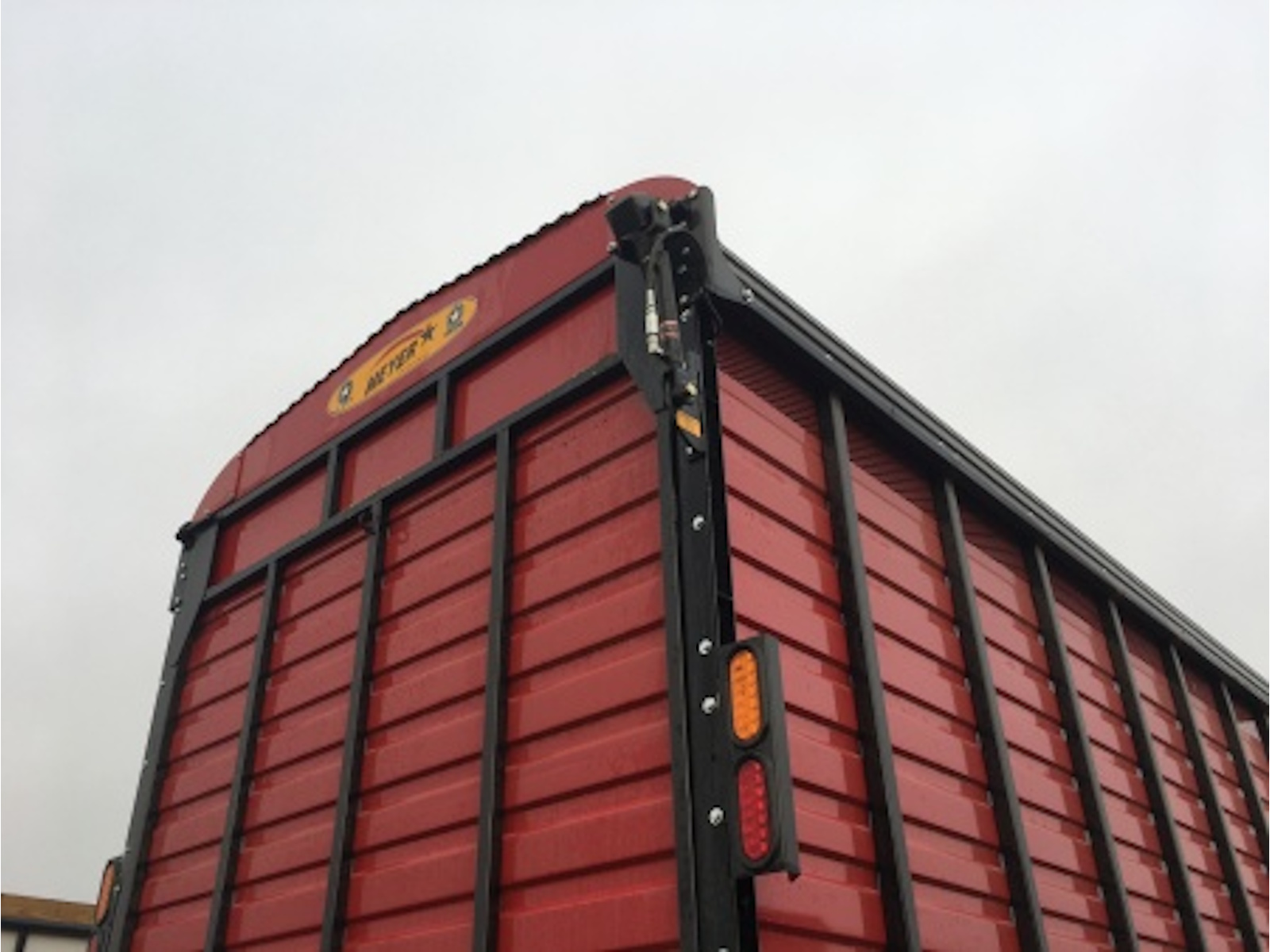

    • LED turn signal lighting standard

    Info

    Industry

    Agriculture

    Make

    Meyer Manufacturing

    Model

    RT218

    Trim

    Base

    Year

    2025

    MSRP

    N/A

    Category

    Semi Trailer

    Subcategory

    Dump Trailer

    Specs

    Length

    Floor: 18’6” | Overall Length RT/RTX200: 22’7”

    Height

    Overall Height (without roof) top of side std: 94" | Overall Height (without roof) top of side high sides: 106" | Inside Height (without roof) std height: 6’3” | Inside Height (without roof) high sides: 7'3" 6’3”

    Notes

    | Capacity cu. ft. (with roof) (6’3”) std height: 944 | Overall Height (with roof) - wagon mount version high sides: 126.5" | Overall Height (with roof) - wagon mount version std height: 114.5” | top of door pivot (RT/RTX200 only) high sides: 115" | top of door pivot (RT/RTX200 only) std height: 103” | top of door pivot (RT/RTX200 only) high sides: 115” | Capacity (struck level) cu. ft. (without roof) (6’3”) std height: 769 | Capacity (struck level) cu. ft. (without roof) (7’3”) high sides: 892

    Width

    Inside: 89.5” | Overall Width with conveyor extension up: 109.5” | Stringer truck/XT2200 trailer mount: 33.5”/6” | Stringer wagon mount: 42”/10”
